Wooden Camera D-Box Alexa Mini Gold Mount

SKU: WC209100 MFR: 209100
Earn VIP Reward Points

Key Features

  • Power your ARRI Alexa Mini with this pro Gold Mount battery adapter plate!
  • Enjoy reliable 12V/24V regulated power output for your camera & accessories.
  • D-Box Alexa Mini ensures seamless, uninterrupted power for critical shoots.
  • Compact & lightweight design (1.18lbs) maintains camera rig portability.
  • Durable Wooden Camera build quality ensures long-lasting performance.
  • Includes all mounting hardware for quick & secure camera integration.
See More Product Details

Product Options

FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Wooden Camera D-Box Alexa Specifications

  • Power Voltage

    12V Unregulated
    24V Regulated

  • Dimensions (W x H x D)

    3.5 x 5.7 x 1.7" / 8.89 x 14.48 x 4.32cm

  • Weight

    1.18lbs / 0.54kg

  • UPC Code

    702534254958

About Wooden Camera D-Box Alexa

Under the umbrella of superior camera accessories, the D-Box Alexa Mini Gold Mount stands out as a custom adaptation of Wooden Camera's renowned D-Box. This specialized version is designed to enhance power distribution, provide standardized remote start/stop, and offer hot swap capabilities specifically for the ARRI Alexa Mini.

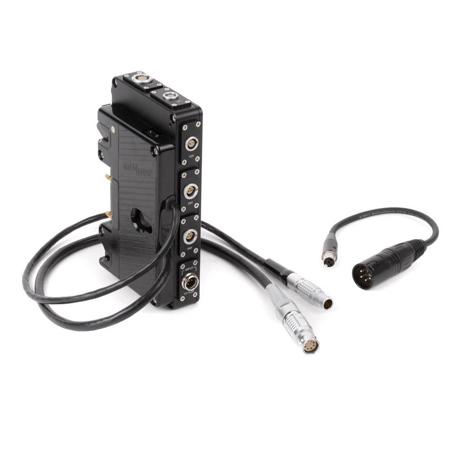

The D-Box Alexa Mini Gold Mount features two 16-inch (40cm) cables that extend from the power plate. One cable connects to the 8pin LEMO power plug, while the other links to the 7pin EXT port. The base of the D-Box is equipped with three 1/4-20 holes, enabling direct attachment to the Rod Clamp (15mm LW), Rod Clamp (15mm Studio), and Rod Clamp (19mm).

For those seeking an adjustable mount system, the Battery Slide can be paired with the aforementioned Rod Clamps. The D-Box Alexa Mini Gold Mount is also compatible with the ARRI BAP-1, with detailed instructions included in the package for easy installation.

The product features an authentic Anton Bauer plate, which provides an unregulated D-Tap and is hardwired to the D-Box. The D-Box includes several slots: a 7 pin LEMO - EXT Port that replicates the connector on the rear of the camera and maintains functionality of external communication, R/S, and power; a 2 pin LEMO - 12V Unregulated with ARRI standard wiring that can be swapped for Hirose, 4pin LEMO or D-Tap; a 3 pin Fischer - 24V Regulated with a built-in regulator to convert battery voltage to 24V; and a 4 pin Mini XLR - 12V Input that allows for hot swappable power input with an included 7-inch pigtail cable for a standard 4 pin XLR.

The D-Box Alexa Mini Gold Mount is a comprehensive solution for power distribution and control, designed to enhance the functionality and versatility of the ARRI Alexa Mini.

Wooden Camera D-Box Alexa Features

  • Customized version of Wooden Camera's D-Box designed for ARRI Alexa Mini
  • Enhances power distribution and offers standardized remote start/stop
  • Features two 16-inch cables for connection to 8pin LEMO power plug and 7pin EXT port
  • Compatible with Rod Clamp (15mm LW), Rod Clamp (15mm Studio), and Rod Clamp (19mm)
  • Includes authentic Anton Bauer plate with unregulated D-Tap
  • Offers multiple slots including 7 pin LEMO - EXT Port, 2 pin LEMO - 12V Unregulated, 3 pin Fischer - 24V Regulated, and 4 pin Mini XLR - 12V Input

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Power your ARRI Alexa Mini with this pro Gold Mount battery adapter plate!
  • Enjoy reliable 12V/24V regulated power output for your camera & accessories.
  • D-Box Alexa Mini ensures seamless, uninterrupted power for critical shoots.
  • Compact & lightweight design (1.18lbs) maintains camera rig portability.
  • Durable Wooden Camera build quality ensures long-lasting performance.
  • Includes all mounting hardware for quick & secure camera integration.

What's in the box:

  • Wooden Camera D-Box Alexa Mini Gold Mount
  • 2.5mm Allen Wrench
  • 6x M3x6mm Phillips Flat-Head Screws
  • 4x M3x16mm Socket Caps
  • Wooden Camera 1 Year Limited Warranty
