Wooden Camera Blackmagic EVF Modification Kit for Blackmagic URSA and URSA Mini Cameras

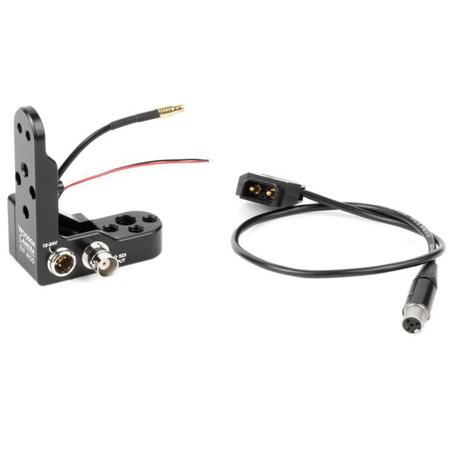

Blackmagic EVF Modification Kit allows you to disassemble the EVF originally intended for the Blackmagic URSA and URSA Mini cameras and use it on many other camera systems. The L bracket design can attach natively to their UVF Mount V2 and has 1/4-20 and 3/8-16 holes on the bottom as well as a 1/4-20 on the side. Included in the kit is a D-Tap to 4pin mini XLR cable measuring 24 inches long (61 cm). The Modification Kit's 4pin mini XLR power input accepts 12-24V.

Some tools needed to perform the modification are included in the kit and a detailed modification instructional video is provided below. Modification should be done with extreme care. Wooden Camera will not be held responsible for any damage during or after modification. Please note that some cameras and devices may not work with the HD-SDI input due to signal format variations. Confirmed working cameras include Phantom FLEx 4K, ARRI Alexa/Alexa Mini, RED Epic/Scarlet, Blackmagic URSA, URSA Mini, Cinema Camera, Studio Camera and Micro Studio Camera.
