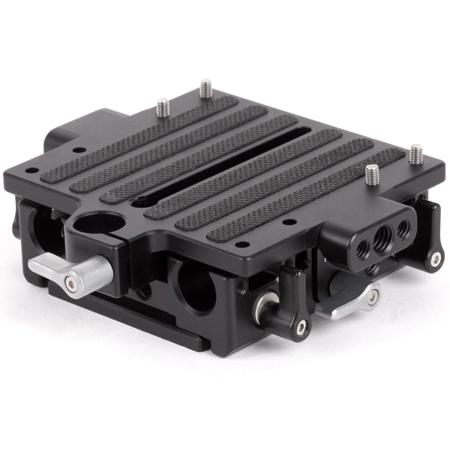

Wooden Camera Unified Baseplate for ARRI Alexa Mini Camera

Because professional videographers demand both versatility and precision, the Unified Baseplate for the ARRI Alexa Mini Camera is engineered to meet these critical needs. This robust quick-release baseplate is designed to provide stable and lightweight 15mm rod support, ensuring the lens is positioned at the optimal height for a wide range of shooting requirements. The rods extend seamlessly from front to back, secured by four robust locking thumbscrews, two on each side, for unwavering stability during filming.

Crafted with the discerning filmmaker in mind, this baseplate offers dual quick-release functionality. Users have the flexibility to either retain the 15mm lightweight rods for continued support or to detach them swiftly when the situation calls for a more minimal setup. To disengage the camera while leaving the rods in place, simply unlock the right-side thumbscrew, slide the camera back, and lift. This intuitive design streamlines the transition between setups, saving valuable time on set.

The baseplate's upper dovetail is compatible with the ARCA Swiss standard, allowing for seamless integration with a multitude of third-party accessories. This feature enhances the baseplate's utility, making it a versatile addition to any filmmaker's toolkit. The upper dovetail also boasts a vertical 15mm rod opening, positioned perfectly to support a lens adapter foot, thereby reinforcing the camera setup directly in front of the camera body.

For those requiring a secure connection to gimbals or tripod plates, the baseplate includes strategically placed 1/4-20 threaded holes on its underside. This thoughtful design ensures that the camera can be mounted securely to a variety of supports, enhancing its adaptability across different filming environments.

The baseplate's lower section features the Lower Quick Dovetail, which is equipped with both 1/4-20 and 3/8-16 threaded holes. These connections are compatible with a wide range of mounting options, including tripod plates and ARRI standard bridge plates such as the Unified Bridgeplate (19mm) or Unified Bridgeplate (15mm Studio). To transport the camera with the 15mm rods, users can unlock the left thumbscrew, slide the baseplate back, and lift, revealing an integrated ARRI dovetail slot that attaches directly to 2060 Dovetails, Safety Dovetails, or Shoulder Rigs.

For those utilizing VCT-14 mounting systems, the Unified Baseplate can be paired with the Unified VCT Wedge Plate, enhancing the camera's balance when shooting from the shoulder. This setup can then be secured to the Unified VCT-14 Tripod Plate, ensuring a stable and reliable connection to the tripod head.

The versatility of the Unified Baseplate extends to its compatibility with additional Unified Lower Quick Dovetails, which can be acquired separately for mounting to gimbals, jibs, cranes, and more. This feature allows for quick, consistent, and reliable camera transitions, making it an indispensable tool for dynamic filming scenarios.

In summary, the Unified Baseplate for the ARRI Alexa Mini Camera is a comprehensive solution that supports the professional videographer's need for quick adaptability, secure camera support, and seamless integration with a variety of filming equipment.
