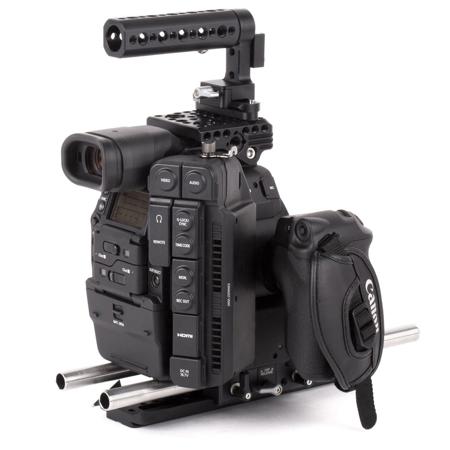

Wooden Camera Unified Accessory Kit for Canon C300mkII Camera (Advanced), Includes Top Plate, Baseplate, 2x 12" Rod, NATO Handle Kit, 8" Safety Dovetail

The Canon C300mkII Unified Accessory Kit (Advanced) is a camera support package designed for the Canon C300mkII camera. The C300mkII accessory package includes: Top Plate (C300mkII), a top mounting cheese plate that attaches by three screws, Unified Baseplate (Canon C00mkII), a quick release baseplate that holds two 15mm Rods (12") at the correct lens height, Safety Dovetail (8") which interfaces with the ARRI dovetail slot on the bottom of the Unified Baseplate, NATO Handle Kit (Cheese, 70mm), a quick release handle that attaches to the Top Plate. Also included as part of the Top Plate (C300mkII) is the Universal Hot Shoe which is used to attach the Canon LCD Unit to any 1/4-20 or 3/8-16 hole.

Top Plate (C300mkII)
Top plate for the Canon C300mkII camera. Arrays of 1/4-20 holes in standard 9mm spacing. Multiple 3/8-16 holes for large accessories. ARRI standard accessory mount on top and sides. Includes Universal Hot Shoe for attaching the Canon C300mkII LCD Unit. To build a cage with this Top Plate, choose either the Fixed Base or Quick Base and add the Cage NATO Arm. Great for mounting EVF Mounts, Handles, external monitors and more.

Unified Baseplate
Unified Baseplate (Sony FS7, Canon C100mkII, C300mkII, C100, C300, C500) is a quick release baseplate that provides lightweight 15mm rod support at the correct lens height. 15mm rods pass through front to back and have two locking thumbscrews per side. The baseplate quick releases in two ways, giving the user the option to take the 15mm lightweight rods or to leave them behind.

To remove the camera and leave the LW 15mm rods behind, unlock the right side thumbscrew, slide the camera backwards a short distance and lift straight up. The dovetail attached to the bottom of the camera is an ARCA Swiss standard shape which can integrate with many third party products. Additionally, there are threaded 1/4-20 holes on the bottom for attaching to gimbals or tripod plates when necessary. Also on this upper dovetail is a vertical 15mm rod opening which can be used to support a lens adapter foot directly in front of the camera body. An example of this would be the Sony FS7 using a Metabones Canon EF adapter. The upper dovetail would be positioned with the vertical 15mm rod opening to the front and the Unified Lens Adapter Support Kit would be installed and threaded into the Metabones support foot.

The bottom of the baseplate is comprised of the Lower Quick Dovetail which has 1/4-20 and 3/8-16 threaded holes for attaching to tripod plate or ARRI standard bridge plate such as Unified Bridgeplate (19mm) or Unified Bridgeplate (15mm Studio). To remove the camera from the included Lower Quick Dovetail and take the 15mm lightweight rods with you, unlock the left thumbscrew, slide the baseplate backwards a short distance and lift up. This action exposes an integrated ARRI dovetail slot on the bottom which can attach directly to any 2060 Dovetails, Safety Dovetails or Shoulder Rigs.

For VCT-14 compatible mounting options, the Unified Baseplate can be attached to the Unified VCT Wedge Plate, providing easy counterbalance ability while on the shoulder. This could then be attached to the Unified VCT-14 Tripod Plate which would be attached to the tripod head. Additional Unified Lower Quick Dovetails can be purchased to mount to gimbals, jibs, cranes, etc, making for quick and repeatable camera transitions.

15mm Rod
15mm diameter iris rods used for mounting accessories like follow focus, matte box, lens support, servo motors and more.

NATO Handle Kit (Cheese, 70mm)
The NATO Handle Kit (Cheese, 70mm) is designed for quick release attaching and detaching on the camera without screws. Simply slide onto Safety NATO Rail and tighten down the thumbscrew. 70mm NATO Rail can attach to any two screw points up to 42mm center to center. Cheese grip with 19mm opening at rear. Arrays of 1/4-20 and 3/8-16 holes provides mounting points for additional accessories.

Safety Dovetail (12")
12" ARRI standard dovetail with safety catch on one end to prevent accidental camera removal. Threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. Attach to Shoulder Pad for custom handheld configurations Perfect for Manfrotto, Miller, Cartoni and more.
