Wooden Camera AIR EVF Mount for RED DSMC2 Viewfinder

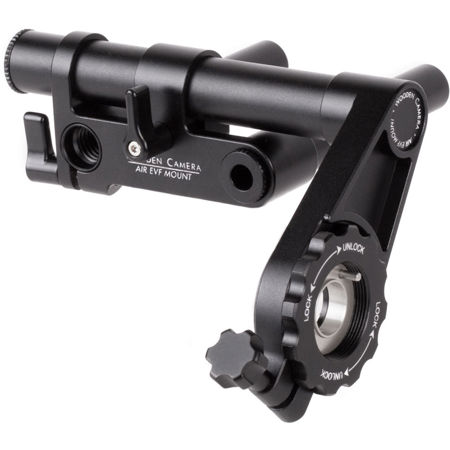

AIR EVF Mount (RED DSMC2 EVF) is an ultra-lightweight EVF mount for the RED DSMC2 viewfinder that allows for easy positioning. The system moves forwards and backwards over the lens area on two 15mm rods, left and right on a 19mm rod and a friction knuckle allows for quick tilting of the EVF without having to loosen a thumbscrew.

The knuckle's thin design allows for both straight and right angle LEMO compatible connectors to be installed into the EVF. If using the Wooden Camera Easy Top (DSMC2), an LCD/EVF Cable (RED, R/R, 24") is ideal as it gives enough length for adequate positioning in most configurations. If using without the Easy Top, a Male Pogo To Male LEMO Compatible LCD/EVF Cable (24") would be recommended.

A top 15mm lightweight rod mount is required for proper attachment of the AIR EVF Mount and the Master Top Handle, shown in the example photos and video is a good option for this. Alternatively, if you have the NATO Handle Kit (Plus, 100mm) or similar, a Rod Clamp (15mm LW) can be added to the front which would hold the two 15mm rods. The tool-less design allows quick installation and removal of EVF and if further extension is needed for tripod shooting, the AIR EVF Extension Arm (RED DSMC2 EVF)can be installed using the same method.
