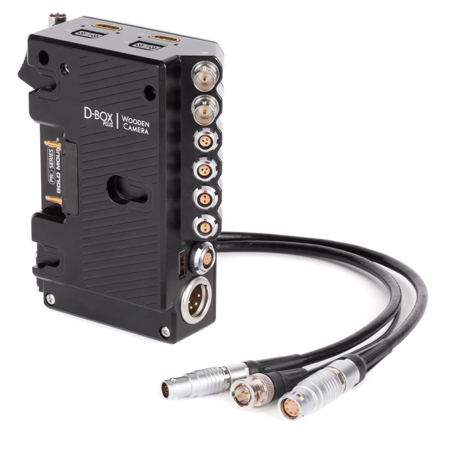

Wooden Camera D-Box Plus Distribution Adapter Box for ARRI ALEXA Mini Camera (Gold Mount)

Before you embark on your next professional filming project, consider the D-Box Plus Distribution Adapter Box, specifically designed for the ARRI ALEXA Mini Camera with a Gold Mount. This advanced power and signal distribution system is an upgraded version of the highly acclaimed D-Box Alexa Mini, offering enhanced features and superior compatibility.

The D-Box Plus seamlessly interfaces with your camera's Power, EXT, and SDI ports, ensuring a smooth and efficient workflow. It now boasts a full-size 4pin XLR connector for DC input, prioritized for use to keep the onboard battery fully charged and ready for action.

In a significant improvement over its predecessor, physical fuses have been replaced with a processor-controlled amp limit. This innovative feature can be set to 3.8, 5.8, or 9 amps using the slide switch on the operator's side. If the set current for accessories is exceeded, only the accessory outputs are disabled, allowing the camera to continue operating normally. Once the current load is reduced, a simple press of the reset button re-enables accessory power.

Constructed with the highest quality Anton Bauer components, the Gold Mount assembly is both robust and lightweight. The unibody power plate design enhances durability without adding unnecessary weight, making it an ideal companion for on-location shoots.

The D-Box Plus features a multitude of interfaces, including a Gold Mount Power Plate, three HD-SDI outputs, two HDMI outputs, and multiple connectors for various voltage requirements. It also includes a 5V USB port and an EXT port, replicating the connector on the rear of the camera to maintain external communication functionality.

The package includes three 16-inch cables compatible with 8pin and 7pin LEMO, and an HD-SDI cable. The D-Box Plus can be easily attached to your camera setup with two 1/4-20 holes, compatible with Rod Clamps of various sizes. For adjustable mount systems, it can be used with the Battery Slide or Battery Swing.

Designed to be versatile and reliable, the D-Box Plus Distribution Adapter Box for ARRI ALEXA Mini Camera with Gold Mount is a valuable addition to any professional videographer's toolkit.
