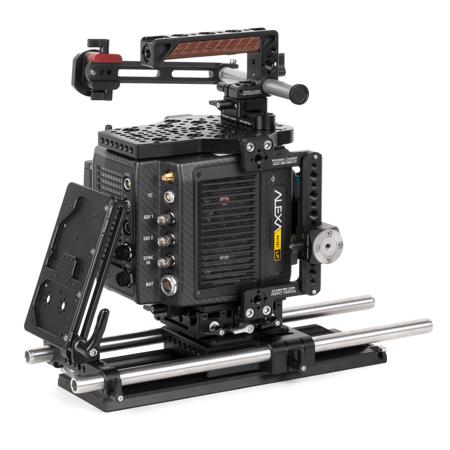

Wooden Camera Unified Accessory Kit for ARRI Alexa Mini LF Camera (Pro, 15mm Studio), Includes Unified Cage, 2x 15mm Rod (15"), NATO Handle Plus v2 Kit, UVF Mount, Unified Bridgeplate, 12" 2060 Dovetail, Rod Clamp (15mm Studio), Battery Slide

SKU: WC273700

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-01-30T07:45:12

Rated 4 out of 5

Perfect start.

It?s a prefect set to begin building your camera out, it?s a little on the pricey side but the quality is unmatched.

Wesley O.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Wooden Camera Unified Accessory Kit Specifications

Includes

Includes

Jump to...
  • Additional Included Items

    Rod Clamp (15mm LW)
    2x Screws (1/4-20 x 1/4")
    2x Screws (1/4-20 x 3/4")
    Battery Slide
    2x Socket Cap Screws (1/4-20 x 1/4)
    6x Pan Head Screws (M3 x 14mm)
    4x Pan Head Screws (M3 x 12mm)
    4x Pan Head Screws (M3 x 8mm)
    4x Phillips Flat Head Screws (M3 x 8mm)

Unified Cage

Jump to...
  • Mounting

    Multiple 1/4"-20 and 3/8"-16 Threads
    Multiple ARRI-Accessory Threads
    Multiple NATO Rails
    2 x ARRI-Type Rosettes

  • Rod System

    15 mm LWS

  • Dimensions

    6 x 4 x 7" (152.4 x 101.6 x 177.8mm)

  • Weight

    2.6 lb (1.2kg)

NATO Handle Plus V2

Jump to...
  • Accessory Mounting Threads

    Multiple 1/4"-20 and 3/8"-16
    ARRI Anti-Twist

  • Shoe Mounts

    2 x Cold Shoes

  • Rod Mount

    1 x 15 mm

  • Dimensions

    5.3 x 3.4 x 1.3" (133.4 x 85.3 x 33.3mm)

  • Weight

    0.54 lb (245g)

Battery Slide

Jump to...
  • Dimensions

    6 x 4.5 x 1.8" (152.4 x 114.3 x 45.7mm)

  • Weight

    0.5 lb (226.8g)

UVF Mount

Jump to...
  • Accessory Type

    Mounting adapter

  • Intended For

    Viewfinder

  • Dimensions

    6.3 x 5.7 x 1.8" (158.8 x 145.4 x 45.4mm)

  • Weight

    0.6 lb (282.07g)

2060/2575/120EX Dovetail Plate

Jump to...
  • Compatibility

    OConnor 2060/2575/120EX and Sachtler Cine 30 tripods

  • Dimensions

    12 x 3.8 x 0.6" (304.8 x 95.2 x 23mm)

  • Weight

    1.4 lb (0.63kg)

15mm Rod Clamp

Jump to...
  • Dimensions

    5.9 x 1 x 0.6" (147.7 x 25 x 15.2mm)

  • Weight

    0.2 lb (0.09kg)

15mm Support Rod

Jump to...
  • Diameter

    0.59" (15mm)

  • Length

    15" (381mm)

Unified Bridgeplate

Jump to...
  • Dimensions (L x W x H)

    7 x 5 x 2" (177.8 x 127 x 50.8mm)

  • Weight

    1 lb (0.45kg)

  • UPC Code

    606184858491

About Wooden Camera Unified Accessory Kit

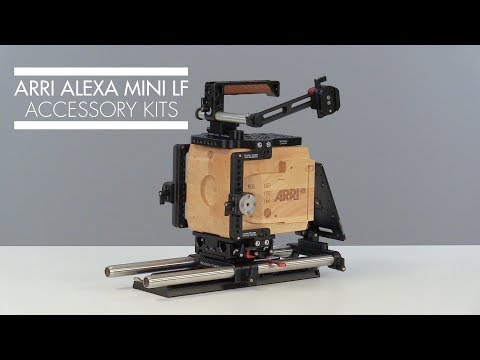

What you're looking at is the Unified Accessory Kit for ARRI Alexa Mini LF Camera (Pro, 15mm Studio), a comprehensive, professional-grade camera support package meticulously designed for the ARRI Alexa Mini LF camera. This high-quality kit is crafted from durable materials, ensuring longevity and resistance to wear and tear, even under rigorous use.

The kit includes a Unified Cage (Alexa Mini LF), a sturdy, form-fitting cage with quick-release NATO rosettes and threaded holes for accessory attachment. This cage is designed to securely hold your ARRI Alexa Mini LF camera, providing a robust base for your shooting setup.

The package also features two 15mm LW rods, perfectly positioned at the correct lens height. These rods are essential for mounting accessories like follow focus, matte box, lens support, servo motors, and more, enhancing the versatility of your camera setup.

Included in the kit is the NATO Handle Plus v2 Kit, a quick-release handle that attaches to the top plate. This handle boasts a rotating top grip, multiple mounting points for accessories, an integrated shoe mount, and a 15mm/19mm rod opening, offering a multitude of customization options.

The UVF Mount (Alexa Mini, No Clamp) is designed for holding the ARRI Multi Viewfinder MVF-2, providing a secure and stable mount for your viewfinder. The Unified Bridgeplate (15mm Studio) holds two 15mm Rod (15") at the correct height and studio offset, ensuring your camera setup is balanced and stable.

The kit also includes a 12" 2060 Dovetail, which attaches natively to various tripod heads, enhancing the stability of your camera setup. The Rod Clamp (15mm Studio) can attach to existing 15mm studio rods to provide 1/4-20 and 3/8-16 mounting points, offering additional accessory mounting options.

Finally, the Battery Slide, an adjustable battery mount, attaches via a Rod Clamp (15mm Studio) and holds a V-Mount or Gold Mount plate. This feature allows for easy adjustment of the battery position, ensuring optimal balance and ease of use.

In summary, the Unified Accessory Kit for ARRI Alexa Mini LF Camera (Pro, 15mm Studio) is a versatile, high-quality, and durable solution for professional photographers and videographers. It offers a comprehensive range of accessories designed to enhance the functionality and versatility of your ARRI Alexa Mini LF camera.

Wooden Camera Unified Accessory Kit Features

  • Professional-grade Unified Accessory Kit for ARRI Alexa Mini LF Camera (Pro, 15mm Studio)
  • Includes a sturdy, form-fitting Unified Cage with quick-release NATO rosettes for easy accessory attachment
  • Features two 15mm LW rods for mounting camera accessories at the correct lens height
  • Comes with a NATO Handle Plus v2 Kit with a rotating top grip & multiple accessory mounting points
  • Equipped with a UVF Mount for holding the ARRI Multi Viewfinder MVF-2 securely
  • Includes an adjustable Battery Slide for easy battery position adjustment and optimal balance

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Professional-grade Unified Accessory Kit for ARRI Alexa Mini LF Camera (Pro, 15mm Studio)
  • Features two 15mm LW rods for mounting camera accessories at the correct lens height
  • Comes with a NATO Handle Plus v2 Kit with a rotating top grip & multiple accessory mounting points
  • Equipped with a UVF Mount for holding the ARRI Multi Viewfinder MVF-2 securely
  • Includes an adjustable Battery Slide for easy battery position adjustment and optimal balance

What's in the box:

  • Unified Cage (Alexa Mini LF)
  • 4x Socket Cap Screws (M4x8mm)
  • 4x Socket Cap Screws (M4x14mm)
  • 8x Socket Cap Screws (1/4-20x3/8 ")
  • 2x 15mm Rod (15 ")
  • NATO Handle Plus V2 & NATO ARRI 70mm Rail (1.67 " Screw Channel)
  • UVF Mount (Alexa Mini / Mini LF
  • No Clamp)
  • Unified Bridgeplate (15mm Studio)
  • 2x 3/8-16 Screws
  • 2x 1/4-20 Screws
  • 2060/2575/120EX Dovetail (12 ")
  • (See Specification Section for Additional Included Items)
  • Wooden Camera 1 Year Limited Warranty
