Wooden Camera Unified Accessory Kit for ARRI Alexa Mini LF Camera (Pro, 19mm), Includes Unified Cage, 2x 19mm Rod (15"), NATO Handle Plus v2 Kit, UVF Mount, Unified Bridgeplate, 12" 2060 Dovetail, Rod Clamp (19mm), Battery Slide

SKU: WC273800

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the main purpose of the Unified Cage in the ARRI Alexa Mini Unified Accessory Kit?

The Unified Cage is a sturdy, form-fitting structure that provides maximum security to your ARRI Alexa Mini LF camera. It features quick-release NATO rosettes and threaded holes for easy accessory attachment.

What is the function of the NATO Handle Plus v2 Kit included in the package?

The NATO Handle Plus v2 Kit is a quick-release handle that attaches to the top plate of your camera. It offers a rotating top grip and multiple mounting points for accessories, enhancing the versatility and usability of your setup.

Can the Unified Bridgeplate in the ARRI Alexa Mini Unified Accessory Kit be used with other camera rigs?

Yes, the Unified Bridgeplate features a 19mm studio offset spacing, making it compatible with any type of camera rig.

What is the use of the Battery Slide in the ARRI Alexa Mini Unified Accessory Kit?

The Battery Slide is an adjustable battery mount that can hold a V-Mount or Gold Mount plate. It allows for easy adjustment of counterbalance and transitioning from studio to handheld mode.

What accessories can be mounted using the 19mm Rod included in the kit?

The 19mm Rod is ideal for mounting various accessories like follow focus, matte box, lens support, servo motors, and more, offering a comprehensive solution for all your shooting needs.

Reviews about this item

Review Summary

2022-01-30T07:45:12

Rated 4 out of 5

Perfect start.

It?s a prefect set to begin building your camera out, it?s a little on the pricey side but the quality is unmatched.

Wesley O.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Wooden Camera Unified Accessory Kit Specifications

Includes

Includes

Jump to...
  • Additional Included Items

    Rod Clamp (19mm)
    2x Screws (1/4-20 x 1/4")
    2x Screws (1/4-20 x 3/4")
    Battery Slide
    2x Socket Cap Screws (1/4-20 x 1/4)
    6x Pan Head Screws (M3 x 14mm)
    4x Pan Head Screws (M3 x 12mm)
    4x Pan Head Screws (M3 x 8mm)
    4x Phillips Flat Head Screws (M3 x 8mm)

Unified Cage

Jump to...
  • Mounting

    Multiple 1/4"-20 and 3/8"-16 Threads
    Multiple ARRI-Accessory Threads
    Multiple NATO Rails
    2 x ARRI-Type Rosettes

  • Rod System

    15 mm LWS

  • Dimensions

    6 x 4 x 7" (152.4 x 101.6 x 177.8mm)

  • Weight

    2.6 lb (1.2kg)

NATO Handle Plus V2

Jump to...
  • Accessory Mounting Threads

    Multiple 1/4"-20 and 3/8"-16
    ARRI Anti-Twist

NATO Handle Plus V3

Jump to...
  • Shoe Mounts

    2 x Cold Shoes

NATO Handle Plus V4

Jump to...
  • Rod Mount

    1 x 15 mm

NATO Handle Plus V5

Jump to...
  • Dimensions

    5.3 x 3.4 x 1.3" (133.4 x 85.3 x 33.3mm)

NATO Handle Plus V6

Jump to...
  • Weight

    0.54 lb (245g)

Battery Slide

Jump to...
  • Dimensions

    6.0 x 4.5 x 1.8" (152.4 x 114.3 x 45.7mm)

  • Weight

    0.5 lb (226.8g)

UVF Mount

Jump to...
  • Accessory Type

    Mounting adapter

  • Intended For

    Viewfinder

  • Dimensions

    6.3 x 5.7 x 1.8" (158.8 x 145.5 x 45.4mm)

  • Weight

    0.6 lb (282.07g)

2060/2575/120EX Dovetail Plate

Jump to...
  • Compatibility

    OConnor 2060/2575/120EX and Sachtler Cine 30 tripods

  • Dimensions

    12 x 3.8 x 0.6" (304.8 x 95.2 x 23mm)

  • Weight

    1.4 lb (0.63kg)

19mm Rod Clamp

Jump to...
  • Dimensions

    6.3 x 1.2 x 0.6" (158.8 x 29.3 x 15.2mm)

  • Weight

    0.2 lb (0.09kg)

19mm Support Rod

Jump to...
  • Rod Size

    0.74" (19mm)

  • Rod Length

    15" (381mm)

Unified Bridgeplate

Jump to...
  • Dimensions (L x W x H)

    7 x 5 x 2" (177.8 x 127 x 50.8mm)

  • Weight

    1 lb (0.45kg)

  • UPC Code

    606184858507

About Wooden Camera Unified Accessory Kit

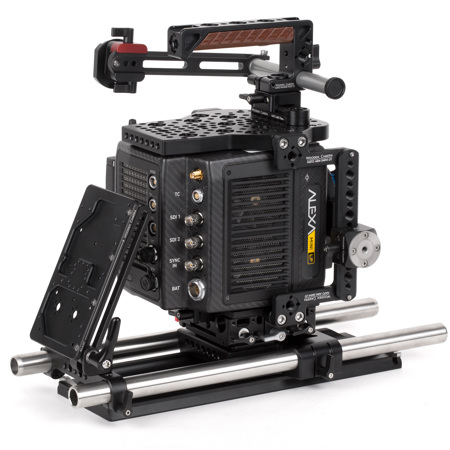

Let the ARRI Alexa Mini Unified Accessory Kit (Pro, 19mm) elevate your professional photography experience. This comprehensive camera support package is meticulously designed for the ARRI Alexa Mini LF camera, offering a robust and versatile solution for all your shooting needs.

The kit includes a Unified Cage (Alexa Mini LF), a sturdy and form-fitting cage with quick-release NATO rosettes and threaded holes for accessory attachment. This cage is designed to provide maximum security to your camera, attaching via four M4 screws on both the top and bottom. The cage top plate mirrors the M4 hole pattern found on the camera body, allowing for seamless attachment of ARRI brand handles and accessories.

The package also features a camera baseplate, designed to hold two 15mm LW rods at the correct lens height. This baseplate is complemented by the NATO Handle Plus v2 Kit, a quick-release handle that attaches to the top plate. This handle offers a rotating top grip, multiple mounting points for accessories, an integrated shoe mount, and a 15mm/19mm rod opening.

The UVF Mount (Alexa Mini, No Clamp) is included for holding the ARRI Multi Viewfinder MVF-2. The Unified Bridgeplate (19mm) is designed for holding two 19mm Rod (15") at the correct height and studio offset, and can be mounted to an ARRI standard dovetail like the included 2060 Dovetail (12").

The Battery Slide, an adjustable battery mount, attaches via a Rod Clamp (19mm) and holds a V-Mount or Gold Mount plate. This feature allows for easy adjustment of counterbalance and transitioning from studio to handheld mode.

The 19mm Rod (15") is perfect for mounting accessories like follow focus, matte box, lens support, servo motors, and more. The NATO Handle Plus V2 Kit (NATO ARRI 70mm Rail, 1.67" Screw Channel) is a quick-release top handle that attaches and detaches quickly without tools, providing a durable composite grip and multiple mounting options.

The UVF Mount (Alexa Mini / Mini LF, No Clamp) attaches the ARRI Multi Viewfinder MVF-1 or MVF-2 directly and works seamlessly with the NATO Handle (Plus) which has an integrated 15mm clamp. The Unified Bridgeplate (19mm) is an ARRI standard bridge plate with 19mm studio offset spacing, compatible with any type of camera rig.

The 2060/2575/120EX Dovetail (12") is a 12-inch ARRI standard dovetail with safety catches on each end, attaching natively to various tripod heads. The Rod Clamp (19mm) can attach to existing 19mm studio rods to provide 1/4-20 and 3/8-16 mounting points.

In conclusion, the ARRI Alexa Mini Unified Accessory Kit (Pro, 19mm) is a comprehensive, high-quality, and versatile solution for professional photographers using the ARRI Alexa Mini LF camera. It offers a wide range of features and accessories to enhance your shooting experience and ensure the best possible results.

Wooden Camera Unified Accessory Kit Features

  • Professional camera support package specifically designed for the ARRI Alexa Mini LF camera
  • Includes a durable Unified Cage with quick-release NATO rosettes and accessory attachment points
  • Features a NATO Handle Plus v2 Kit with a rotating top grip & multiple accessory mounting options
  • Comes with a UVF Mount for holding the ARRI Multi Viewfinder MVF-1 or MVF-2
  • Provides a Unified Bridgeplate with 19mm studio offset spacing, compatible with any camera rig
  • Offers an adjustable Battery Slide for easy counterbalance adjustment and transitioning between studio and handheld modes

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Professional camera support package specifically designed for the ARRI Alexa Mini LF camera
  • Includes a durable Unified Cage with quick-release NATO rosettes and accessory attachment points
  • Features a NATO Handle Plus v2 Kit with a rotating top grip & multiple accessory mounting options
  • Comes with a UVF Mount for holding the ARRI Multi Viewfinder MVF-1 or MVF-2
  • Provides a Unified Bridgeplate with 19mm studio offset spacing, compatible with any camera rig

What's in the box:

  • Unified Cage (Alexa Mini LF)
  • 4x Socket Cap Screws (M4x8mm)
  • 4x Socket Cap Screws (M4x14mm)
  • 8x Socket Cap Screws (1/4-20x3/8 ")
  • 2x 19mm Rod (15 ")
  • NATO Handle Plus V2 & NATO ARRI 70mm Rail (1.67 " Screw Channel)
  • UVF Mount (Alexa Mini / Mini LF
  • No Clamp)
  • Unified Bridgeplate (15mm Studio)
  • 2x 3/8-16 Screws
  • 2x 1/4-20 Screws
  • 2060/2575/120EX Dovetail (12 ")
  • (See Specification Section for Additional Included Items)
  • Wooden Camera 1 Year Limited Warranty
