Wooden Camera Accessory System for Sony FX3/FX30 Cameras, V-Mount

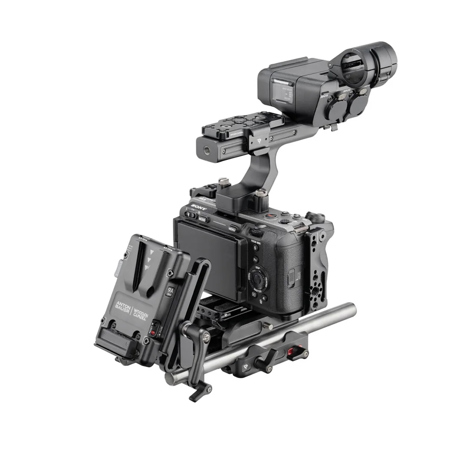

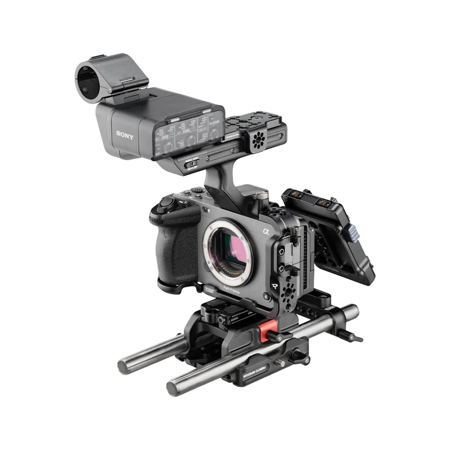

A professional camera support system designed for the Sony FX3/FX30 camera. The FX3/FX30 Elite Accessory System includes: Cage; Cage Grip; Top Plate; Carry Handle Cheese Plate; Base Plate; 2x 9" Rods; 8" Safety Dovetail; D-Tap Dummy Battery; Micro Battery Slide (V-Mount), and Hex Keys.

- Cage and Cage Right Grip -
A feature-rich, expandable, L-style Cage with ARCA Plate mounting points on the underside, 2x 3/8"-16 mounting points (one on the top, one on the side), 2x 1/4"-20 mounting points (both on the side), and a removable HDMI Cable Clamp to keep your setup secure and streamlined. The modular design allows for seamless expansion with additional Wooden Camera or third-party accessories.

- Top Plate -
A Cheese Plate that replaces the stock Sony carry handle and adds 2x 1/4"-20 and 1x 3/8"-16 accessory mounting points. Integrates with Wooden Camera Ultra Handle System and/or other accessories.

- Carry Handle Cheese Plate -
A streamlined Cheese Plate that attaches directly to the stock FX3/FX30 carry handle to enhance configurability. Includes 7 x 1/4"-20, 2 x 3/8"-16, and a cold shoe mounting point.

- Micro Battery Plate Battery Slide -
A V-Mount Universal Micro Battery Plate slide with two D-taps, a dual rod clamp, and a resettable 9-amp fuse.

- LW 15mm Baseplate -
LW 15mm Baseplate (Sony FX3, FX30, Fujifilm GFX100S, X-H2S, X-H2) is a quick release baseplate that provides lightweight 15mm rod support at the correct lens height. 15mm rods pass through front to back and have two locking thumb screws per side. The baseplate quick releases in two ways, giving the user the option to take the 15mm lightweight rods or to leave them behind.

Baseplate features an updated ARCA safety system, as well as an updated ARRI standard safety dovetail system, a vertical lens support post system, and two standard 15mm LW rod clamps.

Baseplate features an updated upper ARCA Swiss standard dovetail with two 3/8"-16 screws for attaching to the bottom of the camera. Updated for safety, the upper ARCA Swiss standard dovetail slides into the LW 15mm Baseplate core, and includes a safety release button for removal. Engraved arrows assist installing the dovetail in the correct direction.

Lower dovetail slot is ARRI standard, for attaching to compatible ARRI dovetails or the included Quick Dovetail. The updated Quick Dovetail is now more user friendly; utilizing a new shape and locating pins, the Quick Dovetail can easily be installed at the same position every time. The offset bolt pattern allows for mounting to any bridge plate following the ARRI Standard bolt pattern and optical height. With Quick Dovetail attached, the baseplate and camera combination can be attached to an ARRI standard bridge plate like Quick Release Bridge plate (19mm) or Quick Release Bridge plate (15mm Studio).

- 8" Safety Dovetail -
8" ARRI standard dovetail with safety catch on one end to prevent accidental camera removal. Threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. Attach to Shoulder Pad for custom handheld configurations.

Perfect for Manfrotto, Miller, Cartoni, and more.

- D-Tap to Sony NP-FZ100 Dummy Battery -
D-Tap to Dummy NP-FZ100 allows you to power select Sony Alpha cameras (those which utilize an NP-FZ100 battery for power) using any V-Mount battery with a D-Tap plug. Voltage converter box mid cable adapts 14.4v to standard 7.4v required by the camera. Reverse polarity protection is built in so if the cable is plugged in backwards to a D-Tap, it will not be damaged.

- 15mm Rod, 9" -
15mm diameter iris rods used for mounting accessories like follow focus, matte box, lens support, servo motors, and more.
