WD VelociRaptor 300GB Hard Drive, 32MB, SATA 6 Gb/s
See all WD items

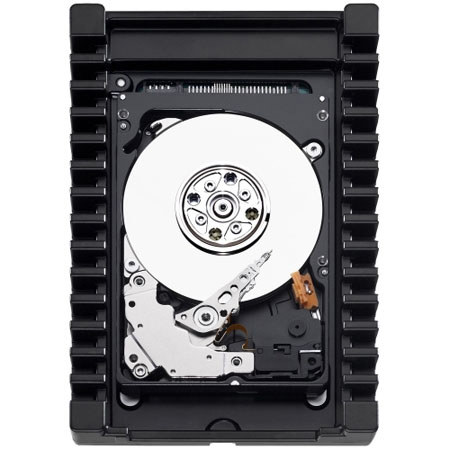

WD VelociRaptor 300GB 3.5" Internal Hard Drive, 32MB Cache, SATA 6 Gb/s Interface, 10000 RPM Speed

SKU: WD3000HLHX
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

WD VelociRaptor 300GB Hard Drive, 32MB, SATA 6 Gb/s Specifications

  • Rotational Speed

    10,000 RPM (nominal)

  • Buffer Size

    32MB

  • Average Latency

    3.00 ms (nominal)

  • Load/unload Cycles

    600,000 minimum

  • Read Seek Time

    3.6 ms (average)

  • Write Seek Time

    4.2 ms (average)

  • Track-To-Track Seek Time

    0.4 ms (average)

  • Transfer Rates

    Buffer To Host (Serial ATA): 6 Gb/s (Max)

  • Formatted Capacity

    300,069MB

  • Capacity

    300GB

  • Interface

    SATA 6 Gb/s

  • User Sectors Per Drive

    586,072,368

  • Operating Shock (Read)

    65G, 2 ms

  • Non-operating Shock

    300G, 2 ms

  • Acoustics: Idle Mode

    30 dBA (average)

  • Acoustics: Seek Mode 0

    37 dBA (average)

  • Operating Temperature

    41 Deg. F to 131 Deg. F

  • Non-operating

    -40 Deg. F to 158 Deg. F

  • Humidity: Operating

    5-95% RH non-condensing

  • Humidity: Non-operating

    5-95% RH non-condensing

  • Altitude: Operating

    -1,000 feet to 10,000 feet

  • Altitude: Non-operating

    -1,000 feet to 40,000 feet

  • Operating: Linear

    20-300 Hz, 0.75G (0 to peak)

  • Operating: Random

    10-300 Hz, 0.008 g / Hz

  • Non-operating: Low Frequency

    0.05 g/Hz (10 to 300 Hz)

  • Non-operating: High Frequency

    20-500 Hz, 4.0G (0 to peak)

  • 12 VDC: Read/Write

    320 mA

  • 12 VDC: Idle

    210 mA

  • 12 VDC: Standby

    5 mA

  • 12 VDC: Sleep

    5 mA

  • 5 VDC: Read/Write

    470 mA

  • 5 VDC: Idle

    360 mA

  • 5 VDC: Standby

    130 mA

  • 5 VDC: Sleep

    120 mA

  • Power Dissipation: Read/Write

    6.20 Watts

  • Power Dissipation: Idle

    4.30 Watts

  • Power Dissipation: Standby

    0.70 Watts

  • Power Dissipation: Sleep

    0.70 Watts

  • Dimensions (W x H x D)

    1.028 x 5.787 x 4" / 26.1 x 147 x 101.6 mm

  • Weight

    1.08 lbs / 0.49 kg

About WD VelociRaptor 300GB Hard Drive, 32MB, SATA 6 Gb/s

The WD WD3000HLHx VelociRaptor 300GB 3.5" Internal Hard Drive delivers maximum speed and reliability for performance enthusiast systems, workstations and low-end servers. With a superbly engineered combination of 10,000 RPM spin speed, SATA 6 Gb/s interface and a 32MB cache, this drive is truly an evolution in performance.

WD VelociRaptor 300GB Hard Drive, 32MB, SATA 6 Gb/s Features

  • Ideal For: Performance enthusiast systems, workstations and low-end servers
  • Fastest SATA hard drive on the planet: 10,000 RPM, 32MB cache and a SATA 6 Gb/s interface gives gamers the speed advantage they crave
  • Rock-solid reliability: Best-in-class 1.4 million hour MTBF makes this the most reliable SATA hard drive around
  • SATA 6 Gb/s interface: Twice the interface speed with backwards compatibility to legacy SATA standards
  • IcePack mounting frame: The 2.5-inch WD VelociRaptor is enclosed in a backplane-ready 3.5-inch enterprise-class mounting frame with a built-in heat sink that keeps this powerful little drive extra cool when installed in high-performance desktop chassis
  • Killer speed: SATA 6 Gb/s interface and 32MB cache enhance the next generation 10,000 RPM WD VelociRaptor making it up to 15% faster than the award-winning previous generation
  • Rotary Acceleration Feed Forward (RAFF): Optimizes operation and performance when the drives are used in vibration-prone, multi-drive chassis
  • NoTouch ramp load technology: The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit
  • Environmentally conscious: In addition to being ROHS compliant, this generation of WD VelociRaptor is also a halogen-free design
