WD Se Datacenter Specifications

  • Interface

    SATA 6 Gb/s

  • Formatted Capacity

    4TB

  • User Sectors per Drive

    7,814,037,168

  • Native Command Queuing

    Yes

  • Form Factor

    3.5-inch

  • RoHS Compliant

    Yes

  • Data Transfer Rate

    Buffer to host: 6 Gb/s
    Host to/from drive: 171 MB/s

  • Cache

    64 MB

  • Rotational Speed (rpm)

    7200

  • Load/Unload Cycles

    300,000

  • Non-recoverable read errors per bits

    <10 in 1015

  • MTBF

    800,000 hours

  • AFR (%)

    1.10

  • Average Power Requirements

    Sequential Read: 9.5
    Sequential Write: 9.1
    Random Read/Write: 9.5
    Idle: 8.1

  • Temperature

    Operating: 41 to 131deg.F / 5 to 55deg.C
    Non-Operating: -40 to 158deg.F / -40 to 70deg.C

  • Shock

    Operating (2 ms, read/write): 30 Gs
    Operating (2 ms, read): 65 Gs
    Non-Operating (2 ms): 300

  • Acoustics

    Idle: 31 dBA
    Seed (Average): 34 dBA

  • Dimensions (LxWxH)

    5.787 x 4 x 1.028" / 14.69 x 10.16 x 2.61 cm

  • Weight

    1.66 lbs / 0.75 kg

  • UPC Code

    718037806020

About WD Se Datacenter

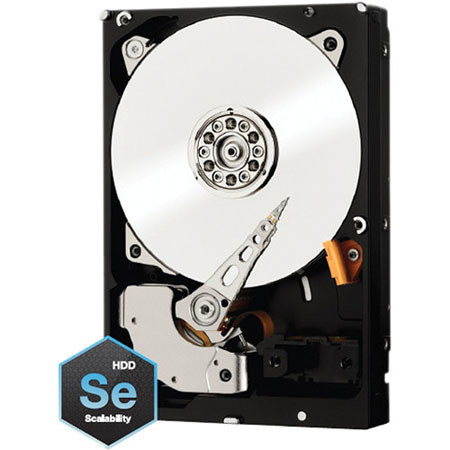

The WD Se Datacenter 4TB SATA 3.5" Internal Hard Drive is a high performance hard drive designed to be used in various datacenter configurations. With a 4TB capacity a large amount of data can be stored and quickly accessed as this drive comes equipped with a SATA 6 Gb/s interface along with a 7200 rpm rotational speed.

Along with the enhanced interface and rotational speed, this WD drive features dual processors as well as RAFF technology aiding in performance enhancements when used in high vibration environments. The head on this drive virtually never touches the disk through the use of NoTouch Ramp Loading Technology and a multi-axis shock sensor. Each drive has been tested to meet the stringent specifications set forth by WD as it undergoes a variety of both functional and real world testing, ensuring that the drive will take just about anything you can throw at it.

WD Se Datacenter Features

  • Designed for Quality and Reliability: All drives undergo at least 5 million hours of functional testing and over 20 million hours of additional testing under actual workloads in actual server and storage systems
  • Dual Processor: Twice the processing power to maximize performance
  • RAFF Rotational Vibration Cancellation Technology: Enhanced RAFF technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time
  • Dual Actuator Technology: A head positioning system with two actuators that improves positional accuracy over the data track(s). The primary actuator provides coarse displacement using conventional electromagnetic actuator principles
  • StableTrac: The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations
  • Multi-Axis Shock Sensor: Automatically detects the subtlest shock events and compensates to protect the data
  • RAID-Specific, Time-Limited Error Recovery (TLER): Prevents drive fallout cause by the extended hard drive error-recovery processes common to desktop drives
  • NoTouch Ramp Load Technology: The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit
  • Thermal Extended Burn-In Test: Each drive is put through extended burn-in testing with thermal cycling to ensure reliable operation
  • Dynamic Fly Height Technology: Each read-write head's fly height is adjusted in real time for optimum reliability
