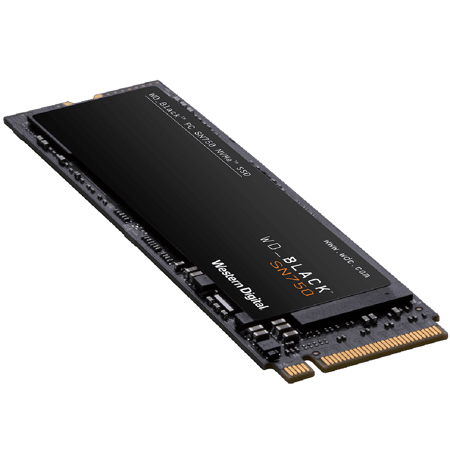

WD BLACK SN750 500GB NVMe M.2 Internal Gaming SSD without Heatsink

SKU: WDBRPG5000A

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-01-06T19:00:00

Rated 5 out of 5

Nice, Slick Design, not actually 1TB

This product was shipped and received very quickly. The actual GB shown in the Disk Management application is 931.50 vs. the 1,000GB marketed, but I think that's typical with any storage device so I'm not going to knock it for this. Either way, it's definitely an upgrade from my original 250GB SSD that came with my ThinkPad P15 [20SUS07U00]

DadWeaver

2020-07-09T15:56:14

Rated 5 out of 5

Great PCIe 3 SSD.

Fast, reliable, and durable, the WD Black NVMe drives in the SN750 series are within a percent or two of the fastest sequential speeds available while offering a longer MTBF rating and being less expensive than other "premium quality" alternatives (like Samsung). Couple that with the fact that they're among the fastest IOPs of any PCIe 3.0×4 drive and can be had with an integrated heat spreader (in case your MoBo doesn't have one) and these make great choices for an NVMe boot drive.

ANDREW R.

2020-06-14T14:59:14

Rated 5 out of 5

Does what it should - Easy install

Painless install. Does not come with a retaining screw, but my Dell laptop didn't have a retaining bracket as it shipped with a 2.5" HDD. A small piece of electrical tape and it works just fine. Laptop is now faster, quieter, and with longer battery life. What's not to love? To answer a question posted about the product; yes, it will work in a laptop, assuming you have a NVMe M.2 socket and room for an 80mm long card. It will not fit into a SATA M.2 socket. Check to see if there's a retaining bracket/screw inside your laptop and if so, check to see that it's in the right spot for this size card. Hint: a 2280 form factor means it's 22mm wide and 80mm long. If you have the right socket, but no retaining bracket, see my solution above. Only been using the drive for a couple weeks, so can't attest first hand to its longevity, but with a 5-year warranty, that isn't a concern -- Just back up your data from time to time and you'll be fine!

MICHELLE W.

2020-06-14T09:23:35

Rated 5 out of 5

As fast as it says

Love this NVME/SSD. Over 3400MB/s on Crystal Disk.

TIMOTHY E.

2020-06-14T08:50:46

Rated 5 out of 5

Excellent, fast, and good aesthetics.

Excellent, fast drive. The SN750 has a black PCB so if the drive is visible it should match your build aesthetic if that’s important to you. Speeds are as advertised and I’m very satisfied with the SSD. Side note, this drive doesn’t come with a screw nor do most M.2 drives so check your motherboard box for it.

RONAK P.

2020-06-08T10:13:52

Rated 5 out of 5

Better speed, less clutter, better airflow

This is a great drive, very happy with the speed and also how uncluttered builds can be with M2 drives. Fewer SATA cables, it lies flush on the motherboard. Better airflow. Just remember GPT not MBR! If you are upgrading, make sure before you clone your old OS drive convert it to GPT, then clone it over to the NVME. That gave me a little headache, but no fault of the drive itself. There are a variety of programs that can convert while keeping your data intact.

Matthew M.

2020-06-07T08:58:26

Rated 5 out of 5

Wd black ssd

Very good!

TIBOR H.

2020-06-04T08:25:29

Rated 5 out of 5

Great product.

Excellent product that met my expectations. Working very well.

LISA H.

2020-02-07T07:22:19

Rated 5 out of 5

Excellent upgrade!

Easy to install, works as advertised, great value for dollar and fast shipping!

Andre W.

WD BLACK SN750 Specifications

General

General

Jump to...
  • Capacity

    500GB

  • Interface

    PCIe

Performance

Jump to...
  • Sequential Read

    3430MB/s

  • Sequential Write

    2600MB/s

  • Random Read 4KB IOPS

    420K

  • Random Write 4KB IOPS

    380K

  • Endurance (TBW)

    300

  • Peak Power (10us)

    2.8A

  • PS3 (low power)

    70mW

  • Sleep (PS4) (low power)

    2.5mW

Reliability

Jump to...
  • MTTF

    1,750,000 hours (Telcordia SR-332, GB, 40 Degree C)

Environmental

Jump to...
  • Operating Temperatures

    32 Degree F to +158 Degree F (0 Degree C to +70 Degree C)

  • Non-operating Temperatures

    67 Degree F to +185 Degree F (-55 Degree C to +85 Degree C)

Safety/Regulatory

Jump to...
  • Certifications

    UL, TUV, CE, BSMI, FCC, KCC, RCM, Morocco, VCCI

  • Form Factor

    M.2 2280-S3-M

Battery

Jump to...
  • Battery Info

    No battery used

  • Battery Material

    -

  • Battery Quantity

    0

  • Battery Type

    -

Physical

Jump to...
  • Dimensions

    3.15 x 0.95 x 0.32" (8 x 2.4 x 0.81cm)

  • Weight

    Approx.: 0.26 oz (7.5g)

  • UPC Code

    718037866451

About WD BLACK SN750

FEATURED REVIEWS

Excellent upgrade!

By Andre W.

Easy to install, works as advertised, great value for dollar and fast shipping!

Nice, Slick Design, not actually 1TB

By DadWeaver

This product was shipped and received very quickly. The actual GB shown in the Disk Management application is 931.50 vs. the 1,000GB marketed, but I think that's typical with any storage device so I'm not going to knock it for this. Either way, it's definitely an upgrade from my original 250GB SSD that came with my ThinkPad P15 [20SUS07U00]

Level Up To NVMe SSD Performance:
The WD_BLACK SN750 NVMe SSD delivers top-tier performance for gaming and hardware enthusiasts who are looking to build or upgrade their PC. Available in capacities up to 500GB, the WD_BLACK SN750 NVMe SSD rivals some of the best performing drives on the market to help give gamers that competitive edge.

Performance Matters:
Live life in the fast lane, whether you're looking to boost your system's overall responsiveness or load games and levels quickly, the WD_BLACK drive cuts down on your wait time to get back into action and gets you ahead of the game.

Space to Play:
At the core of the WD_BLACK drive is its revolutionary NAND technology. By doubling the storage density from its previous generation, our 3D NAND pushes the limitations of storage and showcases the amazing feat of NAND innovation. This means extended capacity on a single-sided drive that's roughly the size of a gumstick, enough to store your large files and video games.

Sleek Heatsink Design:
Every system is not created equal. From different graphics cards and CPUs to DRAM and storage, PCs all differ in performance and appearance. The WD_BLACK SSD's sleek and modern heatsink model goes well with desktop PC builds that support the M.2 form factor and is the perfect component to complement systems with RGB lighting and other cooling technologies, such as water cooling.

The WD_BLACK SSD Dashboard:
The WD_BLACK SSD Dashboard gives you the ability to optimize performance by enabling the gaming mode feature. This disables the low power mode function on the SSD, which keeps your drive firing on all cylinders during intense gaming sessions.

WD BLACK SN750 Features

  • 3430MB/s Read speed
  • 2600MB/s Write speed
  • An exclusive WD_BLACK SSD dashboard with gaming mode improves game performance

Key Features

  • 3430MB/s Read speed
  • 2600MB/s Write speed
  • An exclusive WD_BLACK SSD dashboard with gaming mode improves game performance

What's in the box:

  • BLACK SN750 500GB NVMe Internal Gaming SSD without Heatsink
  • WD 5 Year Limited Warranty
