What is the advantage of AllFrame technology in WD Purple surveillance HDDs?

AllFrame technology enhances ATA streaming to help reduce frame loss, ensure smooth video playback, and increase the number of drive bays supported within a network video recorder (NVR), providing a more reliable and clearer surveillance experience.

Can the WD Purple 18TB HDD be used with ultra-high-definition security cameras?

Yes, the WD Purple 18TB HDD is equipped with AllFrame AI technology, making it fully capable of handling the massive storage needs of ultra-high-definition cameras and supporting Deep Learning analytics.

How does the WD Purple 18TB drive support AI analytics in surveillance systems?

The WD Purple 18TB drive features AllFrame AI technology, which not only allows recording from up to 64 cameras but also supports an additional 32 streams for Deep Learning analytics within AI-capable NVRs.

What does the workload rating indicate for the WD Purple 18TB surveillance HDD?

The workload rating on the WD Purple 18TB HDD indicates its ability to handle the rigorous demands of continuous video recording, with a rating of up to 360TB/year for models supporting AI-driven analytics.

Is the WD Purple 18TB HDD compatible with different surveillance system setups?

Absolutely, the WD Purple 18TB HDD is built with compatibility in mind, ensuring easy and seamless integration with a broad range of enclosures and chipsets, making it a versatile choice for various DVR and NVR configurations.

Reviews about this item

Review Summary

2026-04-16T20:00:00

Rated 3 out of 5

We've only had the camera

We've only had the camera system installed for two weeks, but so far, once we figured out how to configure it properly, (ie. using the NVR set up for motion zones vs the phone app), it works great. The two 10TB hard drives are supposed to last for about 65 days, but that is obviously yet to be seen. Thus, in response to your review request, I'll only give it 3 stars (an average review. ) The only major drawback I've noticed so far, is when I turn off the monitor connected to the NVR or do certain other things with the NVR, it requires a new sign-in. Since we don't have a keyboard on the NVR, that can become cumbersome. Is there a way to connect a keyboard to the NVR?

Buddy V.

2025-04-08T20:00:00

Rated 5 out of 5

Easy to install

Perfect addition to my system, it has doubled the recording capacity, it was very easy to install and it self installs the software.

jose l.

2025-03-10T20:00:00

Rated 5 out of 5

I definitely recommend upgrading your storage capacity.

Great option to add additional storage to your overall system.

B2C C.

2024-12-14T19:00:00

Rated 1 out of 5

This product does not work

This product does not work with the system I purchased , even thou Lorex sale person recommend it?. I had to return it, seems to me that lorex sales personal need to be more educated on their systems!!

Ignacio D.

2024-11-23T19:00:00

Rated 5 out of 5

It's just what I needed.

It's just what I needed.

Justin P.

2024-06-18T20:00:00

Rated 5 out of 5

Works

Hard drive works like it's supposed to. Easy fix besides replacing the whole DVR

Richard B.

2024-06-12T20:00:00

Rated 5 out of 5

Plug and Play, easy installation!

Watched a YT video that gave me step by step instructions. Very easy. Works as expected.

Mark C.

2024-03-04T19:00:00

Rated 5 out of 5

Hard drive

Installed easy.Fired right up and still running fine.

Tim H.

2024-02-27T19:00:00

Rated 5 out of 5

Hard drive

It's working perfectly. The hard drive is saving over two weeks of recordings.

TERRANCE W.

2024-02-21T19:00:00

Rated 5 out of 5

Hours and hours of storage

Hours and hours of storage space

Francis S.

2023-11-09T19:00:00

Rated 5 out of 5

Hard drive Upgrade

Replacing the hard drive was relatively easy. The extra capacity is well needed to extend the recording time.

Wally G.

2023-10-15T20:00:00

Rated 4 out of 5

Works good will consider additional

Works good will consider additional purchases.

brice t.

2023-09-25T20:00:00

Rated 5 out of 5

Professional installed 4 weeks ago

Professional installed 4 weeks ago and working as designed.

Mark J.

2023-08-02T20:00:00

Rated 5 out of 5

Upgraded from 2TB drive to 4TB

Installation was easy and the drive started working as soon as I powered up the NVR. It's been a few weeks and everything is working perfectly. Now I get seven days of 24-7 high-definition recording on six 4K cameras.

Jeffrey Y.

2023-06-13T20:00:00

Rated 5 out of 5

Installer

Great quality hard drive at a good price

Installer B.

2023-06-09T20:00:00

Rated 5 out of 5

Excelente

Excelente

fernando m.

2023-04-05T20:00:00

Rated 5 out of 5

easy to install

Easy to install and adds a lot of storage space

Bunker Y.

2023-03-28T20:00:00

Rated 5 out of 5

Thank you

Thank you

rick s.

2023-03-27T20:00:00

Rated 4 out of 5

Hard drive.

Works great.

m h.

2023-03-26T20:00:00

Rated 5 out of 5

Very happy

100% happy!!

William A.

2023-01-07T19:00:00

Rated 5 out of 5

William G

Very easy to install

william g.

2022-10-31T20:00:00

Rated 2 out of 5

lll

take too long to ship out;;take too long to ship out

llllll

2022-08-30T20:00:00

Rated 4 out of 5

Extra

Very easy too install

Rob M.

2022-08-23T20:00:00

Rated 4 out of 5

added memory

I am satisfied with this add on memory

Gary B.

2022-08-17T20:00:00

Rated 3 out of 5

Ok

Ok

Dave G.

2022-05-09T20:00:00

Rated 5 out of 5

Great system. Still learning how

Great system. Still learning how to use everything

Kenny T.

2022-05-04T20:00:00

Rated 5 out of 5

Great products!

Great products!

Todd M.

2022-04-28T20:00:00

Rated 5 out of 5

Nice pictures!

Nice pictures!

daniel s.

2022-04-27T20:00:00

Rated 5 out of 5

holds over a months worth

holds over a months worth of video in our warehouse

Albert C.

2022-04-27T20:00:00

Rated 5 out of 5

Awesome just what I needed

Awesome just what I needed

Anthony C.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

WD Purple Specifications

Storage

Storage

Jump to...
  • Capacity

    18 TB

  • Buffer

    512 MB

Performance

Jump to...
  • Write Speed

    Sequential: 272 MB/s

  • Read Speed

    Sequential: 272 MB/s

Physical

Jump to...
  • Drive Type

    HDD

  • Form Factor

    3.5"

  • Noise Level

    27.0 dB (Active)
    20.0 dB (Idle)

HDD Specs

Jump to...
  • Spindle Speed (RPM)

    7200 rpm

Reliability

Jump to...
  • Endurance (Total Bytes Written)

    360 TB

  • Load/Unload Cycles

    300000

  • Mean Time Between Failures (MTBF)

    1.5 Million Hours

  • Non-Recoverable Read Errors

    Per Bits Read: < 1 in 1015

Electrical

Jump to...
  • Power Draw

    6.3 W (Active)
    5.9 W (Idle)
    0.9 W (Standby)

Environmental

Jump to...
  • Operating Shock

    50 G / 2.0 ms

  • Storage Shock

    250 G / 2.0 ms

  • Operating Temperature

    32 to 149 Degree F (0 to 65 Degree C)

  • Storage Temperature

    -40 to 158 Degree F (-40 to 70 Degree C)

General

Jump to...
  • Certifications

    RoHS, as per Manufacturer

  • Dimensions (W x H x D)

    4 x 1.03 x 5.79" (101.6 x 26.16 x 147.07mm)

  • Weight

    1.52 lbs (689.46g)

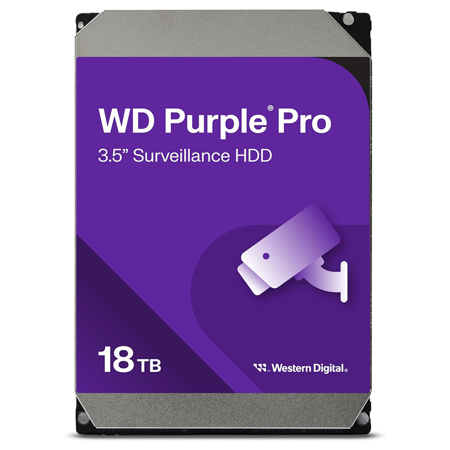

About WD Purple

You can elevate your surveillance system's performance with the Western Digital Purple 18TB SATA III 3.5" Internal Surveillance HDD, designed for round-the-clock security environments. This high-capacity, reliable hard drive is engineered to handle the demanding needs of continuous high-definition security footage, ensuring spacious and secure storage for your critical surveillance data.

The WD Purple 18TB HDD integrates Western Digital's exclusive AllFrame technology, enhancing video quality and minimizing disruptions during recording. This advanced technology works to reduce video errors and pixelation, providing you with smooth, uninterrupted footage that is essential for accurate monitoring and analysis.

With a substantial 18TB of storage space, this durable hard drive is perfect for systems that require extensive video archiving, supporting up to 64 cameras. It's an ideal solution for businesses and individuals seeking a fast, high-performance HDD that can cope with the rigors of 24/7 surveillance.

The drive's enhanced workload rating ensures it can handle the intense demands of video recording, making it a robust choice for DVR and NVR systems. The WD Purple 18TB HDD is not only optimized for current surveillance setups but is also future-ready, supporting ultra high definition cameras and Deep Learning analytics with its AllFrame AI technology.

This HDD is built to last, with a mean time between failures (MTBF) of up to 1.5 million hours, and features tarnish-resistant components, ensuring reliable operation in diverse surveillance environments. Its fifth-generation HelioSeal technology underpins the drive's high capacity and reliability, making it a field-proven choice for extensive 4K video storage and advanced analytics.

Compatibility and integration are seamless with the WD Purple 18TB HDD, which is designed to work effortlessly with a wide array of industry-standard enclosures and chipsets. This ensures a smooth upgrade path for your surveillance system, allowing you to expand storage capacity without compatibility concerns.

Efficiency is also a key feature of this HDD, with IntelliSeek technology optimizing seek speeds to reduce power consumption, noise, and vibrations. This not only enhances the drive's efficiency but also contributes to a more stable and quieter operating environment.

Western Digital's commitment to quality is evident in their rigorous Functional Integrity Testing, ensuring that the WD Purple 18TB HDD meets the highest standards of reliability and performance. With access to Western Digital's extensive Knowledge Base, software, utilities, and customer support, you can trust in a product that delivers surveillance storage solutions you can depend on.

WD Purple Features

  • 18TB Storage Capacity
  • Support for up to 64 cameras per drive
  • AllFrame Technology
  • Up to 16 AI channels for Deep Learning analytics on AI-enabled NVRs
  • MTBF of up to 1.5 million hours

Key Features

  • 18TB high-capacity HDD optimized for 24/7 surveillance systems
  • AllFrame technology for improved video quality and reduced footage disruptions
  • Supports up to 64 cameras with additional 32 streams for AI analytics
  • Durable design with up to 1.5 million hours MTBF and tarnish-resistant components
  • Seamless integration with wide compatibility across DVR and NVR setups
  • Energy-efficient with IntelliSeek technology for reduced noise and power consumption

What's in the box:

  • WD Purple 18TB SATA III 3.5" Internal Surveillance HDD
  • WD 3 Year Limited Warranty
