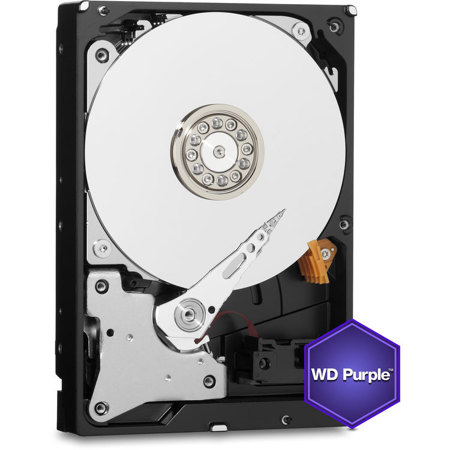

WD Purple 4TB 3.5" Internal Surveillance Hard Disk Drive, 5400 RPM, SATA III 6 Gbps

SKU: WDPR4TBINT

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2025-04-08T20:00:00

Rated 5 out of 5

Easy to install

Perfect addition to my system, it has doubled the recording capacity, it was very easy to install and it self installs the software.

jose l.

2025-03-10T20:00:00

Rated 5 out of 5

I definitely recommend upgrading your storage capacity.

Great option to add additional storage to your overall system.

B2C C.

2024-12-14T19:00:00

Rated 1 out of 5

This product does not work

This product does not work with the system I purchased , even thou Lorex sale person recommend it?. I had to return it, seems to me that lorex sales personal need to be more educated on their systems!!

Ignacio D.

2024-11-23T19:00:00

Rated 5 out of 5

It's just what I needed.

It's just what I needed.

Justin P.

2024-06-18T20:00:00

Rated 5 out of 5

Works

Hard drive works like it's supposed to. Easy fix besides replacing the whole DVR

Richard B.

2024-06-12T20:00:00

Rated 5 out of 5

Plug and Play, easy installation!

Watched a YT video that gave me step by step instructions. Very easy. Works as expected.

Mark C.

2024-03-04T19:00:00

Rated 5 out of 5

Hard drive

Installed easy.Fired right up and still running fine.

Tim H.

2024-02-27T19:00:00

Rated 5 out of 5

Hard drive

It's working perfectly. The hard drive is saving over two weeks of recordings.

TERRANCE W.

2024-02-21T19:00:00

Rated 5 out of 5

Hours and hours of storage

Hours and hours of storage space

Francis S.

2023-11-09T19:00:00

Rated 5 out of 5

Hard drive Upgrade

Replacing the hard drive was relatively easy. The extra capacity is well needed to extend the recording time.

Wally G.

2023-10-15T20:00:00

Rated 4 out of 5

Works good will consider additional

Works good will consider additional purchases.

brice t.

2023-09-25T20:00:00

Rated 5 out of 5

Professional installed 4 weeks ago

Professional installed 4 weeks ago and working as designed.

Mark J.

2023-08-02T20:00:00

Rated 5 out of 5

Upgraded from 2TB drive to 4TB

Installation was easy and the drive started working as soon as I powered up the NVR. It's been a few weeks and everything is working perfectly. Now I get seven days of 24-7 high-definition recording on six 4K cameras.

Jeffrey Y.

2023-06-13T20:00:00

Rated 5 out of 5

Installer

Great quality hard drive at a good price

Installer B.

2023-06-09T20:00:00

Rated 5 out of 5

Excelente

Excelente

fernando m.

2023-04-05T20:00:00

Rated 5 out of 5

easy to install

Easy to install and adds a lot of storage space

Bunker Y.

2023-03-28T20:00:00

Rated 5 out of 5

Thank you

Thank you

rick s.

2023-03-27T20:00:00

Rated 4 out of 5

Hard drive.

Works great.

m h.

2023-03-26T20:00:00

Rated 5 out of 5

Very happy

100% happy!!

William A.

2023-01-07T19:00:00

Rated 5 out of 5

William G

Very easy to install

william g.

2022-10-31T20:00:00

Rated 2 out of 5

lll

take too long to ship out;;take too long to ship out

llllll

2022-08-30T20:00:00

Rated 4 out of 5

Extra

Very easy too install

Rob M.

2022-08-23T20:00:00

Rated 4 out of 5

added memory

I am satisfied with this add on memory

Gary B.

2022-08-17T20:00:00

Rated 3 out of 5

Ok

Ok

Dave G.

2022-05-09T20:00:00

Rated 5 out of 5

Great system. Still learning how

Great system. Still learning how to use everything

Kenny T.

2022-05-04T20:00:00

Rated 5 out of 5

Great products!

Great products!

Todd M.

2022-04-28T20:00:00

Rated 5 out of 5

Nice pictures!

Nice pictures!

daniel s.

2022-04-27T20:00:00

Rated 5 out of 5

holds over a months worth

holds over a months worth of video in our warehouse

Albert C.

2022-04-27T20:00:00

Rated 5 out of 5

Awesome just what I needed

Awesome just what I needed

Anthony C.

2022-04-23T20:00:00

Rated 5 out of 5

Hard Drive Upgrade

Easy install and working great extending full video HD recording

Henry B.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

WD Purple Specifications

Performance

Performance

Jump to...
  • Interface transfer rate

    Buffer to host: 6 Gb/s
    Host to/from drive (sustained): 150 MB/s

  • Cache

    64MB

  • Performance Class

    5400 RPM Class

Reliability/Data Integrity

Jump to...
  • Load/unload cycles

    300000

  • Annualized workload rating

    180TB/yr

  • Non-recoverable read errors

    <1 in 10 (per bits read)

  • MTBF

    1,000,000 hours

Power Management

Jump to...
  • Average power requirements

    Read/Write: 5.1W
    Idle: 4.5W
    Standby and Sleep: 0.4W

Environmental

Jump to...
  • Operating Temperature

    0 to 65 deg. C (32 to 149 deg. F)

  • Non-operating Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Operating Shock

    30 Gs (2 ms, read/write)
    65 Gs (2 ms, read)

  • Non-operating Shock

    250Gs (2ms)

  • Idle Acoustics

    25dBA

  • Seek Acoustics

    28dBA

General

Jump to...
  • Formatted capacity

    4TB

  • Form Factor

    3.5"

  • Advanced Format (AF)

    Yes

  • RoHS compliant

    Yes

  • Cameras supported

    Up to 64

  • Drive Bays Supported

    8+

  • Firmware Feature Name

    AllFrame 4K

  • Tarnish resistant components

    Yes

  • Dimensions (HxLxW)

    26.1 x 147 x 101.6mm (1.03 x 5.79 x 4.00")

  • Weight

    1.5 lbs (0.68kg)

  • UPC Code

    718037856773

About WD Purple

FEATURED REVIEWS

holds over a months worth

By Albert C.

holds over a months worth of video in our warehouse

Easy to install

By jose l.

Perfect addition to my system, it has doubled the recording capacity, it was very easy to install and it self installs the software.

WD Purple drives are built for 24/7, always-on, high-definition security systems. WD Purple surveillance storage feature Western Digital's exclusive AllFrame technology, so you can confidently create a security system tailored to the needs of your business. Using AllFrame technology, WD Purple drives improve video capturing and helps to reduce errors, pixelation and video interruptions that could happen in a video recorder system. WD Purple drives have an enhanced workload rating that supports systems designed for 24x7 video recording with up to 64 cameras.

Industry-leading storage. Surveillance you can trust
Western Digital is a worldwide leader in the hard drive industry. With WD Purple surveillance storage, you have a drive engineered for high temperature, always-on surveillance systems so you can rely on quality video playback when you need it most. Whether you're protecting loved ones or monitoring your business, WD Purple offers performance you can trust.

Western Digital's exclusive AllFrame technology
All WD Purple drives are equipped with AllFrame technology, which improves ATA streaming to help reduce frame loss, improve overall video playback and increase the number of hard drive bays supported within a NVR. Help make your surveillance solution future-ready knowing that WD Purple drives are ready for ultra high definition cameras. WD Purple capacities up to 8TB feature AllFrame 4K technology enabling high quality recording for up to 64 cameras.

Enhanced workload ratings
WD Purple drives with AllFrame 4K technology feature a workload rating of up to 180TB/year - up to three times that of desktop drives - to handle the unique demands of modern video surveillance DVR and NVR systems.

Expand your view to 64
Each WD Purple drive is optimized to support up to 64 cameras. With so many options, you have the flexibility to upgrade or expand your security system in the future. Designed for today's and tomorrow's surveillance solutions With an MTBF of up to 1.5 million hours, WD Purple drives are engineered for mainstream surveillance DVRs and NVRs that operate 24/7. With support for more than eight bays and tarnish resistant components, WD Purple drives deliver reliable operation in large scale surveillance systems in harsh environments.

Wide compatibility. Seamless integration
WD Purple hard drives are built with compatibility in mind, so you can quickly and seamlessly add capacity to your surveillance system. With a wide range of industry-leading enclosures and chipsets supported, you're sure to find the DVR or NVR configuration that's right for you.

Low Power. High efficiency
With our exclusive IntelliSeek technology, WD Purple drives are able to calculate optimum seek speeds. This keeps power consumption low so ambient noise and vibrations are at a minimum.

Three year limited warranty
As an industry-leading hard drive manufacturer, WD stands behind their surveillance storage solutions with a 3-year limited warranty included with every WD Purple drive.

What's in the box:

  • WD Purple 4TB 3.5 " Internal Surveillance Hard Disk Drive
  • WD 3 Year Limited Warranty
