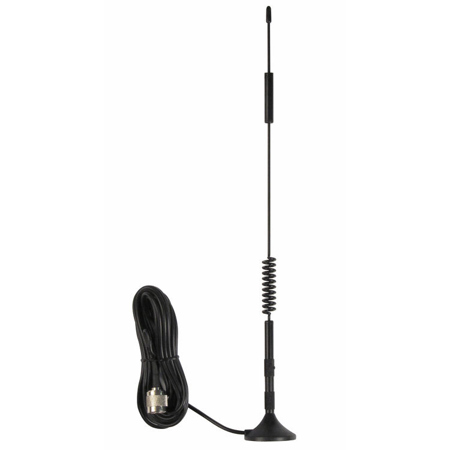

Wilson Electronics 12" Multi-Band Magnet Mount Antenna with FME-Female Connector
See all Wilson Electronics items

Wilson Electronics 12" Multi-Band Magnet Mount Omnidirectional Vehicle Exterior Antenna with FME-Female Connector, 700-2170MHz

SKU: WILS301103
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Wilson Electronics Antenna Specifications

  • Compatibility

    50Ohms amplifiers and accessories

  • Frequency & Gain

    700-800MHz: 1.9dB
    824-894MHz: 5.1dB
    880-960MHz: 3.1dB
    1710-1880MHz: -4.0dB
    1850-1990MHz: 6.1dB
    2110-2170MHz: 2.3dB

  • Polarization

    Vertical

  • Horizontal Beam width

    360 deg.

  • Vertical Beam width

    20-30 deg. (avg. each band)

  • Impedance

    50Ohms

  • VSWR

    =1.8:1 at 700-800MHz and 824-960MHz
    1.5:1 at 1850-1990MHz

  • Lightning Resistance

    Anti Static Coating

  • Connector

    FME female

  • Cable Type

    RG-174

  • Cable Length

    12.5' / 3.81m

  • Magnet Strength Vertical Pull

    6lbs / 2.72kg

  • Rated wind velocity

    80mph / 128kph

  • Radiator material

    Stainless Steel, Powder Coated

  • Base material

    Injection Molded, Encapsulated Magnet & Cable

  • Maximum input power

    50W

  • Operating temperature

    -40 to 55 deg. C / -40 to 131 deg. F

  • Dimensions

    12.5 x 1.5" / 317.50 x 38.10mm

  • Weight

    Antenna: 4oz / 113.40g with cable

  • UPC Code

    813986000038

About Wilson Electronics Antenna

Wilson 301103 (also known as the 311103) Magnet-Mount Antenna is a multi-band antenna that delivers a powerful performance and features up to 6.12 dB of gain. It is designed to be used with one of Wilson Electronics amplifiers. The Wilson 301103 antenna is omnidirectional which allows it to receive signal from all directions. Made of stainless steel it is a perfect antenna for cars, pickup trucks, vans and SUVs.

Wilson Electronics Antenna Features

  • Works with 50Ohms amplifiers and accessories
  • Magnet-mount, removable, easy installations
  • Up to +6.1 dB Gain
  • High gain output omni-directional antenna
  • Boosts all 700, 800, 900 and 1900 MHz cellular frequencies
  • Boosts voice and data
  • Ideal for M2M installations
  • Installs on any ferrous metal surface
  • Portable and easy to store
  • Outdoor rated waterproof
  • Perfect for car, truck, RV installation
  • Connects to cell phone signal boosters and modems
  • Assembled in USA & 2 year warranty

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Wilson Electronics 12 " Multi-Band Magnet Mount Omnidirectional Vehicle Exterior Antenna with FME-Female Connector
  • 12.5' RG174 Cable
  • Wilson Electronics 2 Year Warranty
