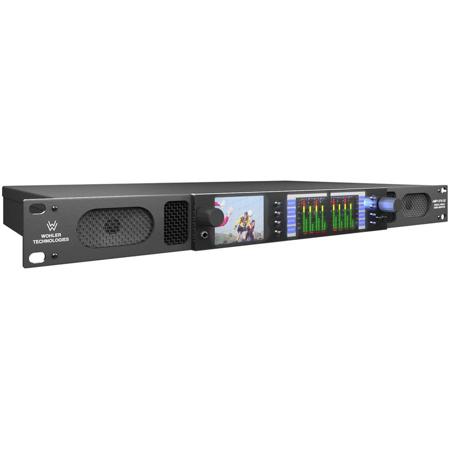

Wohler AMP1-16V-MD 16CH Dual Input 3G/HD/SD-SDI Audio with Video Monitor, 1 Rack Unit
SKU: WOAMP116VMD MFR: AMP1-16V-MD
Earn VIP Reward Points
Key Features
- Monitor 16 channels of audio with dual 3G/HD/SD-SDI inputs for comprehensive control.
- Ensure high video quality with this audio monitor, perfect for broadcast environments.
- Get reliable connectivity with AES and SDI inputs, switchable for versatile use cases.
- This multimedia mixer offers low latency, crucial for live production and seamless workflows.
- The Wohler AMP1-16V-MD provides versatile compatibility, fitting into any standard 19" rack.
- Enjoy easy to use audio monitoring with intuitive controls for efficient audio management.
Special Order?Estimated to Ship: 08/13/2025
Free Shipping
See Options
Qty
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$189.99
3 Year
$219.99
4 Year
$279.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Wohler AMP1-16V-MD
Take your audio and video monitoring to the next level with the AMP1-16V-MD 16CH Dual Input 3G/HD/SD-SDI Audio with Video Monitor. This high-quality, professional-grade unit is a testament to cutting-edge technology and advanced features. It boasts an enhanced audio fidelity, thanks to its Class-D digital amplifier system that efficiently drives the integrated midrange and low-frequency speaker drivers.
This durable and reliable device is capable of monitoring 16 channels of embedded 3G/HD/SD-SDI and AES audio, providing you with a comprehensive audio solution. For those requiring Dolby capabilities, the AMP1-E16V-MD variant includes Dolby D and Dolby E functionality.
One of the standout features of this unit is its innovative OLED screen. All channels can be selected for simultaneous display and real-time monitoring. The screen is user-configurable, allowing you to easily adjust the bar graph meter look, scale, and ballistics to suit your needs. All popular scales are readily accessible at the touch of a button, ensuring a seamless user experience.
For added flexibility, this advanced audio and video monitor allows you to route any selected signal to either the left, right, or both speakers for stereo or mono applications. Whether you're a professional in the field or an enthusiast seeking top-tier equipment, the AMP1-16V-MD 16CH Dual Input 3G/HD/SD-SDI Audio with Video Monitor is a reliable choice for superior audio and video monitoring.
Wohler AMP1-16V-MD Features
- The AMP1-16 Series monitors are truly flexible systems. Integrate one and benefit from the rich feature set
- Three color LCDs not only allow you to customize colors for easy monitoring, but also display up to 16 bar graph level meters simultaneously. The third screen displays video, audio metadata or help text
- At only 1RU it gives you the power of several units with the simplicity of a single package
- Each displayed meter can feature stereo phase indication, user-defined channel labeling and selectable scales and ballistics, such as AES, BBC and Nordic. A custom setting allows user-defined limits and colors
- All 16 channels of audio visually monitored on 16 level meters displayed in two LCD screens
- Monitoring for up to 16 channels of embedded audio in a single, multi-rate 3G/HD/SD-SDI signal
- Totally digital system architecture with high-fidelity class D amplifier
- Video de-embedded from 3G/HD/SD-SDI displayed on the third screen
- Stereo or mono monitoring assignment to speakers
- Analog and digital surround sound system outputs, controllable from the front panel volume control
- Includes demux outputs for 8AES pairs on unbalanced on 2 HD15 connectors
- Create and store 8 user-defined operation configurations
- Stereo phase indicator for stereo pairs
- Includes outputs for 8 analog channels on a balanced DB-25
- Re-clocked output of 3G/HD/SD-SDI and 3G to HD and HD to SD signal down conversion output
