Wohler AMP1-E16V-MD 16-Channel 1RU Audio Video Monitor, 320x240, 3G/HD/SD-SDI, Dolby D/E/DD+

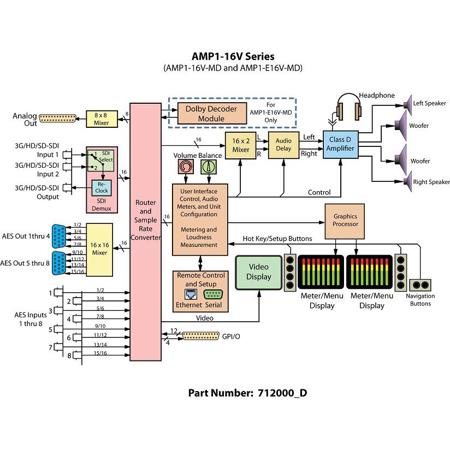

The AMP1-16V Series monitors represents leading edge technology and features. The audio fidelity of Wholer most popular models have been improved with a Class-D digital amplifier system to drive the integrated midrange and low frequency speaker drivers. These units monitor 16 channels of embedded 3G/HD/SD-SDI and AES audio, while the AMP1-E16V-MD includes Dolby D, E and DD+ capability. All channels can be selected for simultaneous display and concurrently monitored on an innovative third screen that is easily user- configured for bar graph meter look, scale and ballistics. All popular scales are available on screen, at the touch of a button. You can route any selected signal to either the left or right or both speakers for stereo or mono applications.

• All 16 channels of audio visually monitored on 16 level meters displayed in two LCD screens
• Monitoring for up to 16 channels of embedded audio in a single, multi-rate 3G/HD/SD-SDI signal
• Totally digital system architecture with high-fidelity class D amplifier
• Video de-embedded from 3G/HD/SD-SDI displayed on the third screen
• Stereo or mono monitoring assignment to speakers
• Analog and digital surround sound system outputs, controllable from the front panel volume control
• Includes demux outputs for 8 AES pairs on unbalanced on 2 HD15 connectors
• Create and store 8 user-defined operation configurations
• Stereo phase indicator for stereo pairs
• Includes outputs for 8 analog channels on a balanced DB-25

Benefits
• The AMP1-16V Series monitors are truly flexible systems. Integrate one and benefit from the rich feature set.
• Three color LCDs not only allow you to customize colors for easy monitoring, but also display up to 16 bar graph level meters simultaneously. The third screen displays video, audio metadata or help text.
• At only 1RU it gives you the power of several units with the simplicity of a single package.
• Each displayed meter can feature stereo phase indication, user-defined channel labeling and selectable scales and ballistics, such as AES, BBC and Nordic. A custom setting allows user-defined limits and colors.
