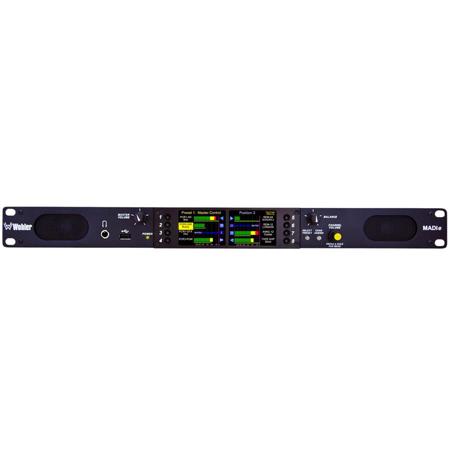

Wohler has re-invented in-rack MADI monitoring and mixing with the new AMP1-MADIe, specifically designed for fast-paced OB and live-to-air production environments. The AMP1-MADIe provides intuitive metering and monitoring of MADI audio, with instant access to 8 stored configurations of any user-defined channel groups (8 each) for easy navigation between all 64 channels in a MADI stream. The AMP1-MADIe comes equipped with BNC and multi-mode optical fi ber interfaces or BNC and single mode optical fi ber interfaces.
In addition to its unique capabilities as a standalone MADI audio monitor and mixer, multiple units can be controlled and configured from a single PC workstation. The AMP1-MADIe supports fast configuration and use of multiple distributed units within a MADI network via an Ethernet connection with a free, downloadable software GUI. An added benefi t of the AMP1-MADIe is its ability to convert between optical and BNC. It's the perfect solution for any application that requires a simple, compact system for monitoring MADI-delivered audio.
Fast selection and summing of multiple MADI channels
Accepts and converts MADI signals between optical and BNC I/O
Supports transmission up to 100m on coax cable
Supports transmission up to 2km distance with multi-mode optical fiber version
Supports transmission up to 20km distance with single-mode optical fiber version
Intuitive front panel operation
Channel names can be created and displayed for each input
Pre or Post metering options offer maximum flexibility
Stores and retrieves presets via USB or remote PC software control
Master volume, channel volume and balance with quick muting
Menu access enabled or disabled via external software control
Channel lock to prevent local reassignment of selected MADI channels
8 level meters with channel select/assign and preset select
Built-in speakers, headphone jack, USB and Ethernet ports
Stereo analog outputs plus mono mix on balanced XLRs
Regenerated or Re-clocked optical and BNC I/O
Built-in universal power supply
Compact (4.25" deep) 1-RU chassis
About MADI
MADI (AES10) is an industry-standard electronic communications protocol that defi nes the data format and electrical characteristics of an interface carrying multiple channels of digital audio. The main advantages of MADI are that it supports a great number of channels per line, plus transmission of audio signals over 100 meters of coax and up to 2 km of optical fi ber with the multi-mode model or up to 20 km of optical fi ber with the single-mode model.
