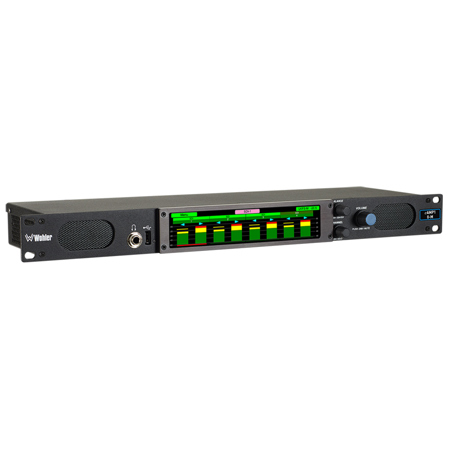

Wohler eAMP1-8-M Dual Input 3G/HD/SD-SDI 8-Channel Audio Monitor, 1RU

SKU: WOEAM18M8314 MFR: EAMP1-8-M (8300-0140)
Earn VIP Reward Points

Key Features

  • Monitor up to 8 audio channels with dual 3G/HD/SD-SDI inputs for real-time analysis.
  • Enjoy high video quality with a 7" LCD touchscreen for precise audio monitoring tasks.
  • Ensure reliable connectivity in your studio with this standard 1RU rack-mountable unit.
  • Versatile compatibility: Perfect for broadcast, production, and post-production environments.
  • Easy to use interface allows quick adjustments, enhancing your audio workflow efficiency.
  • Affordable price for a professional-grade audio monitor; upgrade via USB for future needs.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Wohler eAMP1-8-M Specifications

  • Power Consumption / Supply

    19W, 100 to 240 VAC +/- 10%, 50-60 Hz, CE & UL approved

  • Display Type / Resolution

    7" (178mm) LCD Capacitive Touchscreen; 1242 (H) x 280 (V)

  • Viewing Angle

    160 (H) x 160 (V)

  • Audio Channels

    8 Max

  • Hum and Noise

    Better than -68 dB below full output

  • Peak Acoustic Output

    90 dB SPL @ 2'

  • Speaker Power Output

    5W RMS per side, 12W Peak

  • Upgrades

    Via USB or GUI web interface

  • Dimensions (W x H x D)

    1RU in standard 19" rack: 19 x 1.75 x 5.5" (483 x 45 x 140mm)

  • Weight

    3.3 lbs (1.5kg)

About Wohler eAMP1-8-M

Let the eAMP1-8-M Dual Input 3G/HD/SD-SDI 8-Channel Audio Monitor, a 1RU unit, revolutionize your audio monitoring experience. This compact, cost-effective device is designed to select and monitor up to eight audio channels from either of its two 3G/HD/SD-SDI inputs, making it an ideal replacement for the AMP1-8-M models.

Engineered for the most demanding production applications, the eAMP1-8-M ensures rapid, intuitive operation, whether you're in a studio or on the road. This audio monitor allows for the simultaneous selection and summing of any grouping of SDI audio pairs, offering unparalleled flexibility and control over your audio output.

The eAMP1-8-M stands out with its adjustable volume and balance controls, providing precise audio adjustments to suit your needs. It also boasts a clear display of levels and phase indications, ensuring you have all the information you need at a glance.

The centerpiece of this audio monitor is its bright 7-inch LED-backlit LCD display. This single screen offers a clear, vibrant view of your audio channels, making monitoring a breeze. With the eAMP1-8-M Dual Input 3G/HD/SD-SDI 8-Channel Audio Monitor, you're not just getting a device, you're investing in a superior audio monitoring experience.

Wohler eAMP1-8-M Features

  • Simultaneous level metering of 8 channels of de-embedded audio channels from SDI
  • Touch-enabled or scroll and push selection of any pairs to sum for monitoring
  • Monitor through built-in speakers, headphones and analog outputs with optional muting for internal speakers
  • Stereo or mono monitoring
  • Stereo phase indicators
  • Adjustable Volume and Balance
  • Switch between monitoring channels 1-8 and 9-16
  • Balanced stereo analog outputs on XLR-Ms with fixed level or volume / balance configuration options
  • Automatic frame rate detection and selection
  • Selectable line level or front panel volume control and outputs
  • Shallow chassis depth for easy installation in OB vehicles and consoles
  • OPT-DOLBY adds decoding of Dolby D, DD+ and E (requires OPT-e package)
  • APIs provide easy integration with 3rd party systems (requires OPT- e package)

Key Features

  • Monitor up to 8 audio channels with dual 3G/HD/SD-SDI inputs for real-time analysis.
  • Enjoy high video quality with a 7" LCD touchscreen for precise audio monitoring tasks.
  • Ensure reliable connectivity in your studio with this standard 1RU rack-mountable unit.
  • Versatile compatibility: Perfect for broadcast, production, and post-production environments.
  • Easy to use interface allows quick adjustments, enhancing your audio workflow efficiency.
  • Affordable price for a professional-grade audio monitor; upgrade via USB for future needs.

What's in the box:

  • Wohler eAMP1-8-M Dual Input 3G/HD/SD-SDI 8-Channel Audio Monitor (1RU)
  • Wohler 1 Year Limited Warranty
