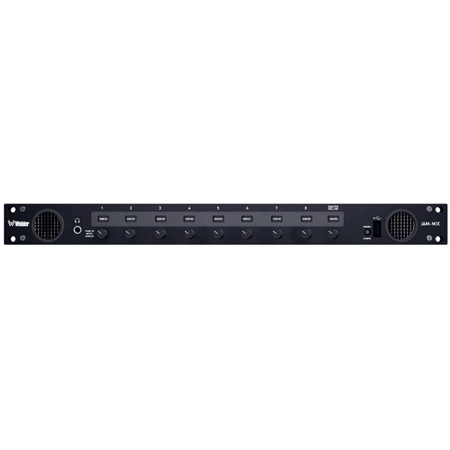

Wohler iAM-MIX-8 Multi-Source Mixing Audio Monitor with Analog Interface, 8 Output Controls, 1RU

SKU: WOIAMMIX8 MFR: IAM-MIX8
Earn VIP Reward Points

Key Features

  • Monitor up to 8 audio channels simultaneously with this multi-source mixing audio monitor.
  • Enjoy versatile compatibility with optional Dante, Ravenna, and MADI audio input streams.
  • Easily mix and control audio via front panel controls, including 8 channel volume encoders.
  • Ensure high audio quality with a frequency response of 40 Hz to 20 kHz for electrical input.
  • Integrate seamlessly with your existing setup using the 1RU rack height design.
  • Rely on low latency audio monitoring for live production with optional Dolby decoding.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$129.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Wohler Mixing Audio Monitor Specifications

Signal I/O

Signal I/O

Jump to...
  • 3G/HD/SD-SDI Input

    Option: SFP-SDIB (829089) 3G/HD/SD-SDI Active Loopback Video Transceiver, HD-BNC

  • 3G/HD/SD-SDI Output

    Option: SFP-SDIB (829089) 3G/HD/SD-SDI Active Loopback Video Transceiver, HD-BNC

  • AES3 Input

    Optional Software License: OPT-AES (829080) enables decoding and monitoring of 4 AES input pairs on BNC

  • AES3 Output

    Optional Software License: OPT-AES (829080) enables 1 AES output pair on BNC of mix to speakers

  • Analog Input

    8 Balanced Analog Inputs on DB-25

  • Analog Output

    2 on XLR of mix to speakers

  • Dolby AC-3 Input

    Optional Hardware Proccesing Card: OPT-DOLBY (829077) Enables decoding and monitoring of Dolby D, DD+, and E Streams

  • Dolby D Input

    Optional Hardware Proccesing Card: OPT-DOLBY (829077) Enables decoding and monitoring of Dolby D, DD+, and E Streams

  • Dolby DD+ Input

    Optional Hardware Proccesing Card: OPT-DOLBY (829077) Enables decoding and monitoring of Dolby D, DD+, and E Streams

  • Dolby E Input

    Optional Hardware Proccesing Card: OPT-DOLBY (829077) Enables decoding and monitoring of Dolby D, DD+, and E Streams

  • MADI Input

    Software Processing Options: OPT-MADI (829092) Enables decoding and monitoring of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors

  • AES67 Input

    Option: OPT-RAVENNA (829079) or OPT-DANTE (829078) Enables decoding and monitoring of AES67 Compliant Dante input streams.

  • Dante Input

    Option: OPT-DANTE (829078) Enables decoding and monitoring of Dante input streams.

  • Ravenna Input

    Option: OPT-RAVENNA (829079) Enables decoding and monitoring of Ravenna input streams.

  • Data Ports

    1 Ethernet port for updating software/firmware, and for configuration/control of unit via remote GUI

Audio Specification

Jump to...
  • AES Input Sampling Rate

    48 kHZ

  • Analog Input Impedance

    40k Ohms balanced

  • Frequency Response

    150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical

  • Hum and Noise

    Better than -68 dB below full output

  • Peak Acoustic Output @ 2 feet

    90 dB SPL @ 2 feet

  • Power Output

    RMS Each Side: 12W Continuous/24W Peak

Features

Jump to...
  • Level Meters

    OLEDx8

  • Audio Channels (max)

    8

  • Audio Mixing

    Yes

  • Presets

    Yes

Interfacing

Jump to...
  • Front Panel Controls

    8 Channel Volume/Mute Encoders, Preset/Configuration Switch; 16 Activity Display Strips

  • Remote User Interface

    Yes

  • Headphone Jack

    Yes

  • Ethernet GbE

    Yes

  • USB Port

    Yes

  • SFP Cage

    Yes, 2 + 1

Physical

Jump to...
  • Rack Height

    1RU

  • Speakers

    Yes

  • Power Consumption

    30 Watts typical

  • Power Supply

    External 18VDC to 100-240 VAC +/- 10%, 50/60 Hz,CE & UL approved

  • Additional Options

    Field installed options available: 3G-SDI Input; 4 AES input pairs/1 AES Output pair; MADI via coax, singlemode optical or multimode optical; Dante or Ravenna AoIP inputs; Dolby D/DD+/E upgrades

  • Dimensions (W x H x D)

    19 x 1.75 x 6" (483 x 45 x 153mm)

  • Weight

    4.5 lb (2kg)

About Wohler Mixing Audio Monitor

What sets the iAM-MIX-8 Multi-Source Mixing Audio Monitor apart is its advanced and sophisticated design, tailored for the professional audio industry. This high-quality, innovative audio monitor boasts a sleek 1RU form factor, ideal for seamless integration into rack-mounted setups commonly found in broadcast and live production environments.

Wohler Technologies, a pioneer with over 25 years of expertise in rack monitoring solutions, has once again revolutionized the field with the iAM Series. The iAM-MIX-8 is a testament to their commitment to flexible, adaptable, and future-proof technology.

The iAM-MIX-8 excels in fast-paced Outside Broadcast (OB), studio, and live-to-air production settings. It offers intuitive audio signal monitoring and facilitates instant access to eight stored configurations. Users can effortlessly navigate between up to 64 channels, making it a breeze to manage complex audio setups.

Equipped with a diverse array of input options, the iAM-MIX-8 supports Analog, AES3, 3G/HD/SD-SDI, and both multi/singlemode fiber and coax MADI audio. It also accommodates networked audio via Dante or Ravenna/AES67, ensuring comprehensive compatibility with contemporary audio systems.

The front panel of the iAM-MIX-8 is where the magic happens, with eight selectable output controls that allow for precise audio mixing and monitoring. Each control is complemented by an individual OLED display indicator, providing real-time status, presence metering, and channel naming. These names can be manually edited or automatically populated from a network-connected router for added convenience.

For environments requiring centralized control, the iAM-MIX-8 offers a browser-based user interface. This interface supports swift configuration and role-based authentication, safeguarding critical settings from unauthorized changes.

In summary, the iAM-MIX-8 Multi-Source Mixing Audio Monitor is the perfect solution for professionals seeking a simple yet comprehensive tool for monitoring a diverse range of audio signals. Its robust construction, coupled with Wohler's reputable legacy, ensures that users receive a product that not only meets but exceeds industry standards for audio monitoring and mixing.

Wohler Mixing Audio Monitor Features

  • Fast selection and summing of up to 16 audio channels
  • Intuitive front panel with 8 or 16 individual level controls and quick muting
  • Channel names can be displayed for each input
  • Store and retrieve presets via USB or remote software control
  • Built-in speakers, headphone jack, USB and Ethernet ports
  • A range of useful connectors, including SFP slots for future I/O support
  • Open API for remote control, logging and setup
  • Apply software feature upgrades with zero downtime
  • Compact, space-saving units

Key Features

  • Monitor up to 8 audio channels simultaneously with this multi-source mixing audio monitor.
  • Enjoy versatile compatibility with optional Dante, Ravenna, and MADI audio input streams.
  • Easily mix and control audio via front panel controls, including 8 channel volume encoders.
  • Ensure high audio quality with a frequency response of 40 Hz to 20 kHz for electrical input.
  • Integrate seamlessly with your existing setup using the 1RU rack height design.
  • Rely on low latency audio monitoring for live production with optional Dolby decoding.

What's in the box:

  • Multi-Source Mixing Audio Monitor with Analog Interface (1RU)
  • Wohler 1 Year Limited Warranty
