Wohler OPT-OUTPUT-ROUTING Option for iAM Series - Option to Enable the Ability to Flexibly Route Input Signals to Various Outputs, Requires a Software Activation Key

SKU: WOOPTOROUTIN MFR: OPT-OUTPUT-ROUTING
Earn VIP Reward Points

Key Features

  • Unlock flexible audio routing with this Wohler iAM series output option.
  • Easily route input signals to various outputs using software activation key.
  • Enjoy optional 3G/HD/SD-SDI output with active loopback via HD-BNC.
  • Get one AES output pair on BNC for a seamless mix to speakers setup.
  • Utilize two XLR analog outputs for a professional mix to speakers experience.
  • Upgrade your rack mount audio monitor with this essential Wohler accessory.
See More Product Details
Special Order?Estimated to Ship: 09/15/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Wohler OPT-OUTPUT-ROUTING Specifications

Signal Input / Output

Signal Input / Output

Jump to...
  • 3G/HD/SD-SDI Output

    OPTIONAL: SFP-SDI (829089): 3G/HD/SD-SDI single video receiver with active loopback, HD-BNC

  • AES3 Output

    1 AES output pair on BNC of mix to speakers

  • Analog Output

    2 on XLR of Mix to speakers

Features

Jump to...
  • Presets

    Yes

Designed For Use With:

  • Rack Mount Audio Monitor

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

Models
Wohler OPT-OUTPUT-ROUTING Option (Requires a Software Activation Key)
$395.00

Special Order

Generally ships in 7-14 days, subject to availability

Wohler OPT-DOLBY ATMOS Dolby ATMOS Option (Requires Software Activation Key)
$6,495.00

Special Order

Generally ships in 7-14 days, subject to availability

CompatibilityRack Mount Audio MonitorRack Mount Audio Monitor
Accessory TypeUpgradesUpgrades

About Wohler OPT-OUTPUT-ROUTING

Experience the advanced functionality of the OPT-OUTPUT-ROUTING Option for iAM Series, an innovative solution designed to enable flexible routing of input signals to various outputs. This high-quality product requires a software activation key, offering a user-friendly interface for seamless operation.

The OPT-OUTPUT-ROUTING Option for iAM Series features a Common Output Routing licensed feature, allowing channels to be routed or combined in custom ways to different destination outputs. This feature is applicable to signals monitored using the 'Input Source select' from the Front Panel and presets that have been created to apply the Common Output Routing (COR).

Any modification to the COR will influence the presets that have 'Apply COR' selected. For instance, multiple channels of a 7.1 channel program can be combined and directed to the left or right internal speakers. Six or eight channels could be directed to the AES outputs, which could feed an external surround sound system.

If the Common Output Routing is not licensed, any of the iAM-MIX inputs can be monitored in stereo or mono only through the internal speakers. The headphone jack, the analog XLR outputs, and the first AES output will follow whatever is directed to the speakers.

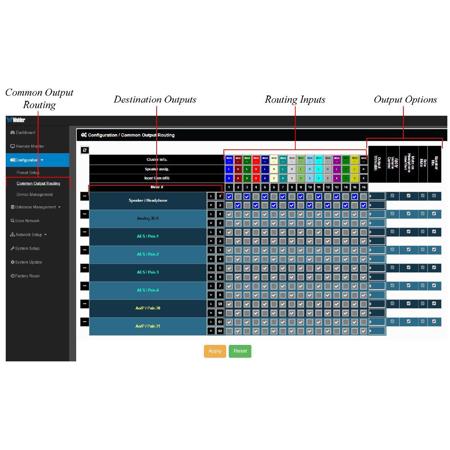

When licensed, select Common Output Routing under Configuration. This will display the Common Output Routing (COR) screen. This screen contains a matrix which forms an easy way for you to set up the wide variety of input to output routing and mixing capabilities.

This durable product is made by Wohler, a reputable brand in the audio industry known for producing high-quality equipment. Sold by Adorama, a leading retailer of photography equipment, digital cameras, lenses, pro audio & video, professional gear & musical instruments from top brands.

Wohler OPT-OUTPUT-ROUTING Features

  • Audio Monitor
  • Audio Mixing
  • Headphone Socket
  • Speakers

Key Features

  • Unlock flexible audio routing with this Wohler iAM series output option.
  • Easily route input signals to various outputs using software activation key.
  • Enjoy optional 3G/HD/SD-SDI output with active loopback via HD-BNC.
  • Get one AES output pair on BNC for a seamless mix to speakers setup.
  • Utilize two XLR analog outputs for a professional mix to speakers experience.
  • Upgrade your rack mount audio monitor with this essential Wohler accessory.
