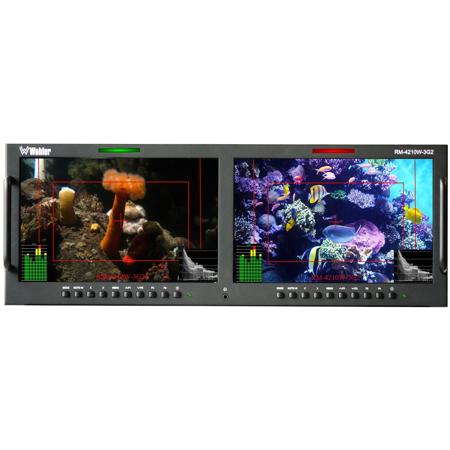

Wohler RM-4210W-3G2 Dual 10.1 3G/HD/SD-SDI, Composite, HDMI Video Monitor, 4RU

SKU: WORM4210W3G2 MFR: RM-4210W-3G2
Earn VIP Reward Points

Key Features

  • Dual 10.1" LCD screens offer high-resolution video monitoring for broadcast and production needs.
  • Supports 3G/HD/SD-SDI, HDMI, and composite video inputs for versatile compatibility.
  • On-screen level meters monitor up to 16 audio channels, ensuring pristine audio quality.
  • Utilize waveform and vector scope tools for precise video signal analysis and adjustments.
  • Remote interface and tally controls streamline operation in fast-paced broadcast environments.
  • Rack-mounted design with forward tilt enhances viewing in any studio or mobile setup.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Wohler RM-4210W-3G2 Specifications

Signal Input / Output

Signal Input / Output

Jump to...
  • 3G/HD/SD-SDI Input

    2x auto-sensing 3G/HD/SD-SDI (per screen)

  • 3G/HD/SD-SDI Output

    2x looped 3G/HD/SD-SDI (per screen)

  • Analog Input

    2 Analog Audio Inputs on RCA (per screen)

  • HDMI Input

    1x HDMI on type A (per screen)

  • CVBS Input

    1 CVBS Video Inputs on BNC (per screen)

  • CVBS Output

    1x looped CVBS on BNC (per screen)

  • Data Ports

    2x RS485 (IMD) on RJ-45; 1 x RJ-45 (tally); 1 USB S/W Upgrade per screen

  • Analog Input Impedance

    52 kOhms

  • Meter Dynamics

    VU

  • Meter Scale

    VU

  • Power Output

    5 Watts

  • Color Depth

    16.7M

  • Contrast

    800:1

  • Diagonal Display Size

    10.1" (25.6cm)

  • Display Modes

    LCD

  • Display Resolution (H x V)

    1920 x 1200

  • Display Type

    IPS-LCD with LED Backlight

  • Luminance

    320 cd/sq. m

  • Native Aspect

    16:9

  • Number of screens

    2

  • Pixel Response

    25 ms, typical

  • Viewing Angle (H x V)

    170 x 170

Features

Jump to...
  • Level Meters

    On-Screen for up to 16 Channels

  • Audio Channels (max)

    16

  • Video Waveform

    Yes

  • Tally Controls

    Tally on RJ-45

  • UMD

    2 ea. RS485 (In & Out) for UMD

Interfacing

Jump to...
  • Front Panel Controls

    Signal Select; Mute; OSD Menu Controls; F1-F4, Power

  • Remote User Interface

    Yes

  • Headphone Jack

    Yes

  • Ethernet GbE

    Yes

  • USB Port

    Yes, for upgrades

Physical

Jump to...
  • Rack Height

    4RU

  • Speakers

    Yes

  • Power Consumption

    35 Watts

  • Power Supply

    External 120V to 240 VAC +- 10%, CE & UL approved.

  • Additional Options

    Rack Mounted Mechanical Design with Forward Tilt

  • Dimension (W x H x D)

    19 x 7 x 1.7" (484 x 176 x 43mm)

  • Weight

    6.0 lb (2.7kg)

About Wohler RM-4210W-3G2

From the renowned RM Series, the Wohler RM-4210W-3G2 Dual 10.1" 3G/HD/SD-SDI, Composite, HDMI Video Monitor, 4RU is a top-tier, slim, in-rack video monitor, specifically designed for high-demand environments such as mobile trucks, newsrooms, transmission control rooms, production and post-production studios, and video surveillance applications.

This advanced monitor boasts a high-resolution 10.1-inch display, capable of showcasing clear, detailed images in both high-definition and standard-definition video across a variety of aspect ratios. With support for all standard frame rates and resolutions from 3G-SDI, HDMI, or Analog input sources, this monitor offers unparalleled versatility. Each input also features a looping output for enhanced connectivity.

The Wohler RM-4210W-3G2 comes standard with in-monitor level metering, capable of visually monitoring up to 16 audio channels using an on-screen bar graph style level meter. This feature, combined with the built-in monitoring speakers at the rear of the unit and a 3.5mm headphone socket, ensures comprehensive audio monitoring capabilities.

This reliable video monitor also includes selectable video waveform, vectorscope, and histogram displays, safe area and aspect ratio markers, and IMD labeling. It also features built-in color bars and a variety of picture controls and assistive video features such as zoom controls and focus assist.

The intuitive on-screen menu allows for easy parameter selection and adjustment, while the tally and on-screen labeling provide quick and easy signal identification. The Wohler RM-4210W-3G2 also supports client/server GUI network control, making it an ideal choice for configuring hard-to-reach wall-mounted monitors.

With its high-quality display, multiple input options, and comprehensive monitoring features, the Wohler RM-4210W-3G2 Dual 10.1" 3G/HD/SD-SDI, Composite, HDMI Video Monitor, 4RU is a robust and efficient solution for all your professional video monitoring needs.

Wohler RM-4210W-3G2 Features

  • Audio Monitor
  • Video Monitor
  • 3G/HD/SD-SDI
  • Analog
  • HDMI
  • Level Meters
  • Measurement Tools
  • Headphone Socket
  • Speakers

Key Features

  • Dual 10.1" LCD screens offer high-resolution video monitoring for broadcast and production needs.
  • Supports 3G/HD/SD-SDI, HDMI, and composite video inputs for versatile compatibility.
  • On-screen level meters monitor up to 16 audio channels, ensuring pristine audio quality.
  • Utilize waveform and vector scope tools for precise video signal analysis and adjustments.
  • Remote interface and tally controls streamline operation in fast-paced broadcast environments.
  • Rack-mounted design with forward tilt enhances viewing in any studio or mobile setup.

What's in the box:

  • RM-4210W-3G2 Dual 10.1 3G/HD/SD-SDI Video Monitor
  • AC Power Supply
  • Wohler 1 Year Limited Warranty
