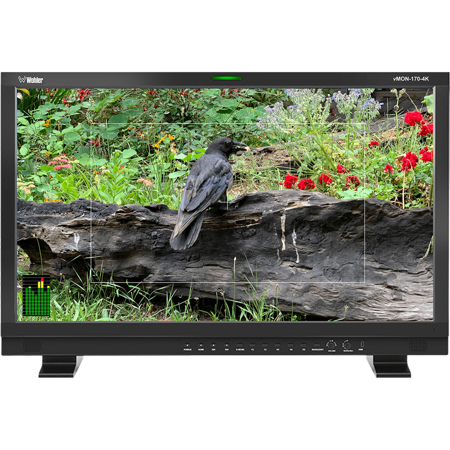

Wohler vMON-170-4K 17.3" 16:9 4K Ultra HD HDR Production Video Monitor

SKU: WOVMON1704K MFR: VMON-170-4K
Earn VIP Reward Points

Key Features

  • Experience superior clarity with this 17.3" 4K Ultra HD production monitor.
  • Achieve accurate color representation with 8-Bit color support on this Wohler monitor.
  • Utilize real-time LUT monitoring (SDR, HDR) for precise video adjustments on set.
  • Enjoy versatile connectivity with HDMI and SDI inputs/outputs for all your devices.
  • Analyze your footage with built-in tools like waveform, vectorscope, and histogram.
  • Trust in the durability of this 11.7 lbs production monitor for field use.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Wohler VMON-170-4K Specifications

Display

Display

Jump to...
  • Display Size

    17.3" (43.9cm)

  • Screen Area

    15.1 x 8.5" (382.8 x 215.4mm)

  • Resolution

    3840 x 2160

  • Aspect Ratio

    16:9

  • Touchscreen

    No

  • Maximum Brightness

    400 nits / cd/sq. m

  • Contrast Ratio

    1000:1

  • Bit Depth / Color Support

    8-Bit (16.7 Million Colors)

  • HDR Compatibility

    Yes

  • Pixels Per Inch (ppi)

    255 ppi

  • Real-Time LUT Monitoring

    SDR, HDR

  • Image Controls

    Blue Only, False Color, Focus Assist, Histogram, Image Flip, Overscan, Screen Markers, Vectorscope, Waveform, Zebra

Inputs / Outputs

Jump to...
  • Video I/O

    2xBNC (12G-SDI) Input
    2xBNC (3G-SDI) Input
    1xHDMI 2.0 Input
    1xBNC (Unspecified SDI) Input
    2xBNC (12G-SDI) Output
    2xBNC (3G-SDI) Output

  • Embedded Audio

    HDMI/SDI: 16-Channel

  • Audio I/O

    1x1/8" (3.5mm) Headphone Output

  • Built-In Speaker

    2

  • Power I/O

    1xBarrel (12 VDC) Input

  • Media/Memory Card Slot

    No

  • Wi-Fi

    No

  • Bluetooth

    No

  • Mobile App Compatible

    No

Format Support

Jump to...
  • Video Format

    HDMI/SDI (10/12-Bit)
    UHD 4K

  • Gamma Curve

    ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, DCI-P3, HDR-HLG, Panasonic V-Log, Rec709, Rec2020, Sony S-Log, Sony S-Log 2, Sony S-Log 3, ST2084

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • DC Input Power

    12 VDC

  • Power Consumption

    50 W

General

Jump to...
  • Dimensions

    17.1 x 12.6 x 5.9" (43.4 x 32 x 15cm)

  • Weight

    11.7lbs (5.3kg)

About Wohler VMON-170-4K

An embodiment of high-quality and professional video production, the vMON-170-4K 17.3" 16:9 4K Ultra HD HDR Production Video Monitor offers advanced and innovative features in a state-of-the-art design. This 17.3-inch display monitor boasts a superior resolution of 3840 x 2160, ensuring crystal-clear image quality and intricate detail in every frame.

Designed to excel in professional video production environments, the vMON-170-4K is capable of displaying 4K signals, offering a viewing experience that surpasses standard HD. This makes it an ideal choice for applications demanding high-quality video output.

This slim, free-standing monitor is not just about aesthetics. It's packed with features that make it a powerful tool for video monitoring and production. The on-screen audio level meters, quad split, waveform, and histogram provide comprehensive control over your video output.

The vMON-170-4K is part of the vMON Series, a range of monitors designed for diverse applications such as mobile trucks, news and transmission control rooms, 4K production/post-production, and video surveillance.

The monitor comes standard with in-monitor level metering, selectable video vectorscope/histogram, safe area and aspect ratio markers, IMD labeling, tally, and built-in color bars. It also offers a variety of picture controls and productive video features such as zoom controls and focus assist.

The vMON-170-4K supports a large variety of professional broadcasting features such as Quad Split, Waveform, Histogram, Darkness Check, making it a vital asset in any 4K production workflow. It supports all standard frame rates and resolutions from 12G-SDI, 6G-SDI, 3G-SDI, and HDMI input sources, and each SDI input has a looping output.

For audio monitoring, up to 16 audio channels can be selected for visual monitoring using on-screen bar graph style level meters. The front panel features monitoring speakers for audible monitoring, while a 3.5mm headphone jack provides an option for private monitoring.

Crafted by Wohler, a trusted name in the professional video production industry, the vMON-170-4K 17.3" 16:9 4K Ultra HD HDR Production Video Monitor is equipped with a stand mount for easy placement and adjustment, making it a versatile and indispensable tool in the realm of professional video production.

Wohler VMON-170-4K Features

  • 3840 x 2160 4K resolution
  • 12 Bit Video Processing, no image delay
  • 12G/6G/3G/HD/SD-SDI auto detect
  • 4K 12G-SDI single link signal, 4K Quad link 2 Sample Interleave (2SI), Square Division (SQD)
  • 1 x SDI SFP+ module optical input cage, 1 x HDMI 2.0 input
  • Free Quad-View (border control/window adjustment), 4 x SDI/HDMI mixed inputs & frequency rates
  • 16 ch Embedded Audio Level Meters
  • 4K HDR Waveform, Vector Scope, Marker/Box Control Function
  • Picture Flip, Focus Assist, False Color, Zebra
  • Full Scan, Over Scan, Blue/Mono Only
  • Key Lock, Video Freeze
  • SDR and HDR comparison, Darkness Check
  • Color Space & EOTF Curves Auto Sensing, matching (REC709/REC2020)
  • Color Space (REC709/EBU/DCI-P3 D65/DCI-P3/REC2020/Bypass)
  • HDR: PQ (ST2084), HLG (1.0, 1.1, 1.2, 1.3, 1.4, 1.5)
  • Sony Camera Log Curves: Slog, Slog2, Slog3
  • Canon Camera Log Curves: Clog, Clog2, Clog3
  • ARRI Camera Log Curves: LogC
  • Panasonic Camera Log Curves: Vlog, Vlog (softroll)
  • Gamma (2.0, 2.2, 2.4, 2.6), HDR Area Display
  • 3D LUT Color calibration with ColorSpace & CalMAN
  • 3rd party 3D LUT files import (USER1/USER2)
  • Eight Selectable Scene Settings
  • Dynamic and Static UMD/IMD Display (TSL3.1/4.0/5.0)
  • 608/708 CC Closed Caption
  • Firmware upgrade/LUT file import via USB/Ethernet
  • GPI (selectable/markable windows)
  • Built-in Speakers

Key Features

  • Experience superior clarity with this 17.3" 4K Ultra HD production monitor.
  • Achieve accurate color representation with 8-Bit color support on this Wohler monitor.
  • Utilize real-time LUT monitoring (SDR, HDR) for precise video adjustments on set.
  • Enjoy versatile connectivity with HDMI and SDI inputs/outputs for all your devices.
  • Analyze your footage with built-in tools like waveform, vectorscope, and histogram.
  • Trust in the durability of this 11.7 lbs production monitor for field use.

What's in the box:

  • Wohler vMON-170-4K 17.3" 16:9 4K Ultra HD HDR Production Video Monitor
  • Power Supply
  • Wohler 1 Year Limited Warranty
