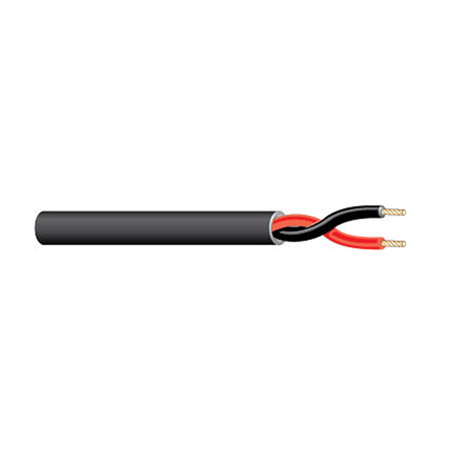

West Penn 1000' 16AWG Unshielded Plenum Speaker Cable

SKU: WPN25225BBK MFR: 25225BBK1000
Earn VIP Reward Points

Key Features

  • Enjoy superior audio with this 1000-foot West Penn 16AWG unshielded plenum speaker cable.
  • Bare copper conductors ensure optimal signal quality for your audio circuits and speakers.
  • This plenum speaker cable is ideal for low-voltage power and background music systems.
  • Install with confidence; this 16 AWG cable meets NFPA 262 plenum standards for safety.
  • Durable plenum PVC jacket protects the unshielded cable, ensuring long-lasting performance.
  • Reduce noise in your audio setup with high-quality, 16-gauge West Penn speaker wire.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

West Penn 1000' 16AWG Unshielded Plenum Speaker Cable Specifications

Conductor Parameter

Conductor Parameter

Jump to...
  • Number of Conductors

    2

  • AWG Size

    16

  • Conductor Stranding

    19x29

  • Conductor Type

    Bare copper

  • Nominal DCR

    4.2 Ohm/1000'

  • Cabling Lay Length

    3" (7.62cm)

  • Twists/Foot

    4 twist/ft

Insulation Parameter

Jump to...
  • Insulation Type

    Plenum PVC

  • Insulation Thickness

    0.008" (0.02cm)

  • Insulation Color Code

    1. Black, 2.Red

Shielding Parameter

Jump to...
  • Shield Type

    None

Electrical/Optical Characteristics

Jump to...
  • UL Flammability

    Overall: NFPA 262 Plenum

  • Operating Range

    Overall: 32 to 140 Degree F (-0 to 60 Degree C)

  • UL Voltage Rating

    Overall: 300

Application

Jump to...
  • Application

    Indoor for:
    Plenum Spaces
    Speaker Level
    Audio Circuits
    Low-Voltage Power
    Background Music
    Division 27 41 00
    Division 27 51 00
    Division 28 05 13

Overall Construction Parameters

Jump to...
  • Jacket Type

    Flexible Plenum

  • Jacket Thickness

    0.015" (0.04cm)

  • Nominal Cable O.D.

    0.176" (0.4cm)

  • Plenum

    Yes

  • NEC UL Rating

    CMP

  • RoHS Compliant

    Yes

  • Pull Tension

    54 lbs (24.49kg)

  • Bend Radius

    1.583" (4cm)

  • Cable Weight

    25 lbs (11.3kg)

About West Penn 1000' 16AWG Unshielded Plenum Speaker Cable

Overcome the challenges of demanding audio installations with the West Penn 1000' 16AWG Unshielded Plenum Speaker Cable. Engineered with precision, this cable features ASTM bare copper conductors, renowned for their superior conductivity and reliability. The conductors are encased in a robust polymer alloy insulation, enhancing both durability and performance, making it an excellent choice for high-quality audio transmission.

The cable's design incorporates short overall twist lengths, a feature that significantly improves signal integrity by reducing interference and maintaining audio clarity. This ensures that your audio signals are transmitted with minimal loss, providing a pristine listening experience.

Additionally, the flexible plenum-rated jacket is specifically designed for easy installation in plenum spaces, adhering to safety standards while offering the flexibility needed for complex routing. This makes the West Penn 1000' 16AWG Unshielded Plenum Speaker Cable ideal for a wide range of applications, from commercial audio systems to sophisticated home theater setups, where high performance and adaptability are paramount.

West Penn 1000' 16AWG Unshielded Plenum Speaker Cable Features

  • ASTM Bare Copper
  • Polymer Alloy insulation
  • Short Overall Twist lengths
  • Overall flex plenum jacket

Key Features

  • Enjoy superior audio with this 1000-foot West Penn 16AWG unshielded plenum speaker cable.
  • Bare copper conductors ensure optimal signal quality for your audio circuits and speakers.
  • This plenum speaker cable is ideal for low-voltage power and background music systems.
  • Install with confidence; this 16 AWG cable meets NFPA 262 plenum standards for safety.
  • Durable plenum PVC jacket protects the unshielded cable, ensuring long-lasting performance.
  • Reduce noise in your audio setup with high-quality, 16-gauge West Penn speaker wire.

What's in the box:

  • West Penn 1000' 16AWG Unshielded Plenum Speaker Cable
