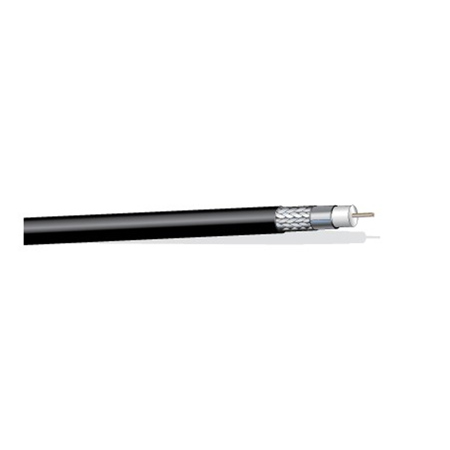

West Penn 1000' RG6/U 12GHz HD-SDI CMR Coaxial Cable
See all West Penn items

West Penn 1000' RG6/U 12GHz HD-SDI CMR Coaxial Cable

SKU: WPN6450BK MFR: 6450BK1000
Be the first to review this itemAsk a Question
$1,215.00
OR
$102/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Ensure a reliable signal with this 1000ft RG6/U coaxial cable, perfect for HD-SDI video.
  • This 12GHz coax cable supports high-bandwidth applications, delivering crystal-clear video.
  • Enjoy superior shielding with our tri-laminate & 95% braid, minimizing signal interference.
  • Use this CMR-rated coaxial cable within walls, meeting fire safety standards for installations.
  • Built to last, this durable RG6/U cable features a robust PVC jacket for long-term performance.
  • Get optimal performance with this 75 Ohm impedance coaxial cable, ideal for video signals.
See More Product Details
Special Order?Estimated to Ship: 08/13/2025
Free Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

West Penn 1000' RG6/U 12GHz HD-SDI CMR Coaxial Cable Specifications

Conductor Parameter

Conductor Parameter

Jump to...

  • Number of Conductors

    1

  • AWG Size

    18

  • Conductor Stranding

    Solid

  • Conductor Type

    SC - Silver Copper

  • Nominal DCR

    6.4 Ohm/1000'

  • RG Size

    RG6/U

Insulation Parameter

Jump to...

  • Insulation Type

    PE - Polyethylene (Foam)

  • Insulation Thickness

    0.18"

Shielding Parameter

Jump to...

  • Shield Type

    100% Tape Tri-Laminate (Alum+Poly+Alum)

  • Shield Type 2

    95% Tinned Copper Braid

Electrical Characteristics

Jump to...

  • Nominal Impedance

    75 Ohm

  • Nom. Cap. Between Conductors

    15.9pf/ft

  • Nom. Vel. Of Prop

    85%

Overall Construction Parameters

Jump to...

  • Jacket Type

    PVC

  • Nominal Cable O.D.

    0.274" (0.7cm)

  • Plenum

    No

  • NEC UL Rating

    CMR

  • RoHS Compliant

    Yes

  • Pull Tension

    69bs/f

  • Bend Radius

    2.7" (6.9cm)

  • Cable Weight

    41 lbs (18.6kg)

Electrical/Optical Characteristics

Jump to...

  • UL Flammability

    Overall: UL1666 Riser

  • Operating Range

    Overall: -4 to 167 Degree F (-20 to 75 Degree C)

  • UL Voltage Rating

    Overall: 300

  • Frequency / Attenuation

    1 MHz: 0.23 dB/100ft
    5 MHz: 0.51 dB/100ft
    7 MHz: 0.59 dB/100ft
    10 MHz: 0.7 dB/100ft
    25 MHz: 1.04 dB/100ft
    55 MHz: 1.45 dB/100ft
    71.5 MHz: 1.62 dB/100ft
    100 MHz: 1.89 dB/100ft
    135 MHz: 2.1 dB/100ft
    180 MHz: 2.44 dB/100ft
    270 MHz: 2.97 dB/100ft

  • Frequency / Attenuation (Contd.)

    360 MHz: 3.45 dB/100ft
    540 MHz: 4.3 dB/100ft
    720 MHz: 5 dB/100ft
    1000 MHz: 5.9 dB/100ft
    1500 MHz: 7.3 dB/100ft
    2000 MHz: 8.5 dB/100ft
    3000 MHz: 10.6 dB/100ft
    4500 MHz: 13.2 dB/100ft
    6000 MHz: 15.5 dB/100ft
    12000 MHz: 23 dB/100ft

About West Penn 1000' RG6/U 12GHz HD-SDI CMR Coaxial Cable

Discover the West Penn 1000' RG6/U 12GHz HD-SDI CMR Coaxial Cable, meticulously engineered for superior performance in SMPTE broadcast video applications. This high-definition serial digital interface cable is crafted to meet the rigorous demands of professional broadcasting environments. Featuring high conductivity conductors, this cable ensures optimal signal transmission, reducing the risk of data loss and maintaining the integrity of your video signals. The gas-injected insulation provides enhanced dielectric properties, contributing to the cable's exceptional performance over long distances. Additionally, the premium shielding offers robust protection against electromagnetic interference, ensuring clear and uninterrupted video quality. Ideal for high-frequency applications, this RG6/U coaxial cable supports up to 12GHz, making it a reliable choice for HD-SDI video transmission needs. Enhance your broadcast setup with the West Penn 1000' RG6/U 12GHz HD-SDI CMR Coaxial Cable and experience unparalleled video clarity and reliability.

West Penn 1000' RG6/U 12GHz HD-SDI CMR Coaxial Cable Features

  • HD-SDI Cables are designed and built for SMPTE broadcast video applications
  • Coaxial cables are built with high conductivity conductors

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure a reliable signal with this 1000ft RG6/U coaxial cable, perfect for HD-SDI video.
  • This 12GHz coax cable supports high-bandwidth applications, delivering crystal-clear video.
  • Enjoy superior shielding with our tri-laminate & 95% braid, minimizing signal interference.
  • Use this CMR-rated coaxial cable within walls, meeting fire safety standards for installations.
  • Built to last, this durable RG6/U cable features a robust PVC jacket for long-term performance.
  • Get optimal performance with this 75 Ohm impedance coaxial cable, ideal for video signals.

What's in the box:

  • West Penn 1000' RG6/U 12GHz HD-SDI CMR Coaxial Cable
