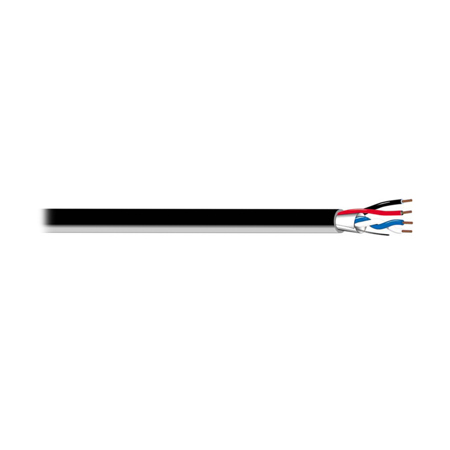

West Penn 1000' Media Control Cable

SKU: WPND25350BK MFR: D25350BK1000
Earn VIP Reward Points

Key Features

  • Ensure reliable signal quality with this West Penn media control cable, 1000 ft.
  • This flexible cable is ideal for indoor communication, power, and media control circuits.
  • Bare copper conductors provide excellent conductivity for your audio and control signals.
  • Plenum-rated PVC jacket ensures safety and compliance for in-wall cable installations.
  • Features shielded pairs to minimize interference and maintain clear audio signals.
  • Durable construction supports low-voltage power and media control applications.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

West Penn 1000' Media Control Cable Specifications

Conductor Parameter

Conductor Parameter

Jump to...
  • Number of Conductors

    Unshielded: 2

  • Number of Pairs

    Shielded: 1

  • AWG Size

    Shielded: 22
    Unshielded: 18

  • Conductor Stranding

    Shielded: 7x30
    Unshielded: 7x26

  • Conductor Type

    Bare Copper

  • Nominal DCR

    Shielded: 17 Ohm/1000'
    Unshielded: 6.2 Ohm/1000'

Insulation Parameter

Jump to...
  • Insulation Type

    Shielded: Foam FEP
    Unshielded: Plenum PVC

  • Insulation Thickness

    Shielded: 0.022" (0.06cm)
    Unshielded: 0.008" (0.02cm)

  • Insulation Color Code

    Shielded: 1. Blue, 2.White
    Unshielded: 1. Black, 2.Red

Shielding Parameter

Jump to...
  • Shield Type

    Shielded: Overall 100% Aluminum Foil
    Unshielded: None

  • Drain Wire Type

    Shielded: Tinned Copper

  • Drain Wire AWG

    Shielded: 24 AWG

Electrical Characteristics

Jump to...
  • Nominal Impedance

    Shielded: 100 Ohm

  • Nom. Cap. Between Conductors

    Shielded: 12.5 pF/ft

  • Nom. Cap. Conductor to Shield

    Shielded: 22.5 pF/ft

Electrical/Optical Characteristics

Jump to...
  • UL Flammability

    Overall: NFPA 262 Plenum

  • Operating Range

    Overall: -4 to 140 Degree F (-20 to 60 Degree C)

  • UL Voltage Rating

    Overall: 300

Application

Jump to...
  • Application

    Indoor for:
    Communication Bus
    Low-Voltage Power
    Media Control Circuits
    Division 27 41 00
    Division 27 51 00

Overall Construction Parameters

Jump to...
  • Total Number of Conductors

    4

  • Jacket Type

    PVC

  • Jacket Thickness

    0.030" (0.08cm)

  • Nominal Cable O.D.

    0.265" (0.67cm)

  • Plenum

    Yes

  • NEC UL Rating

    CMP

  • RoHS Compliant

    Yes

TIA Test

Jump to...
  • Pull Tension

    29 lbs (13.15kg)

  • Bend Radius

    2.385" (6.1cm)

  • Cable Weight

    34 lbs (15.4kg)

About West Penn 1000' Media Control Cable

Overcome the challenges of media control installations with the West Penn 1000' Media Control Cable, designed to deliver superior performance and reliability. This high-quality cable features a combination of 22 AWG shielded and 18 AWG unshielded conductors, making it an excellent choice for a wide range of applications. The cable includes one pair of bare copper conductors, ensuring optimal conductivity and signal transmission.

The flexible plenum PVC jackets are specifically engineered for use in plenum spaces, providing both durability and ease of installation. The shielded version of this cable is equipped with aluminum foil protection, which significantly enhances signal integrity by minimizing electromagnetic interference (EMI) and radio frequency interference (RFI). This ensures that your media control systems operate with precision and clarity.

Both the shielded and unshielded versions of the West Penn Media Control Cable are NEC UL-rated CMP, meeting stringent safety standards for plenum-rated cables. Additionally, they are RoHS compliant, reflecting a commitment to environmental responsibility by restricting the use of hazardous substances. Whether you're setting up a new media control system or upgrading an existing one, this cable offers the safety, reliability, and performance you need for successful installations.

West Penn 1000' Media Control Cable Features

  • ASTM Bare Copper
  • Foam Polyolefin Insulation (Data Pair), Thermoplastic (Control Pair)
  • Short Overall Twist Lengths
  • (Data Pair) Overall Shield 100% Coverage of Aluminum Polyester Foil with drain Wire, (Control Pair) Unshielded
  • Overall PVC Jacket

Key Features

  • Ensure reliable signal quality with this West Penn media control cable, 1000 ft.
  • This flexible cable is ideal for indoor communication, power, and media control circuits.
  • Bare copper conductors provide excellent conductivity for your audio and control signals.
  • Plenum-rated PVC jacket ensures safety and compliance for in-wall cable installations.
  • Features shielded pairs to minimize interference and maintain clear audio signals.
  • Durable construction supports low-voltage power and media control applications.

What's in the box:

  • West Penn 1000' Media Control Cable
