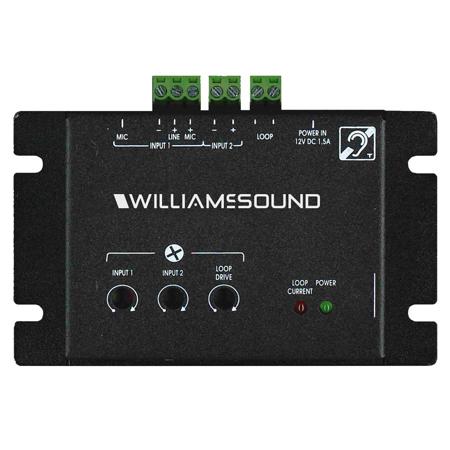

Williams Sound DL102 Counter Loop Amplifier with MIC 103 Microphone

SKU: WSDL102

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the DL102 Counter Loop Amplifier?

The DL102 Counter Loop Amplifier is designed to amplify sound for individuals with T-coil equipped hearing aids in small settings such as service counters and desks. It transmits sound directly to the hearing device, providing a clear and personalized audio feed.

What is included in the package?

The package includes the DL102 amplifier, MIC 103 Microphone, a loop pad for under-counter setup, and a spool of wire for the creation of the induction loop area.

What is the role of the loop wire in the DL102 system?

The loop wire is used to create an induction loop area. When audio is fed from the amplifier, it is distributed through this wire. Users within this loop area can engage their T-coil hearing aids to capture the transmitted audio signal, enhancing their listening experience.

Can the DL102 Counter Loop Amplifier be used in larger spaces?

The DL102 Counter Loop Amplifier is specifically designed for smaller areas such as service counters and information desks. For larger spaces, a different model or multiple units might be needed.

How does the DL102 system promote inclusivity?

The DL102 system allows individuals with T-coil equipped hearing aids to interact more effectively in public spaces. It provides a clear and personalized audio feed without the need for a physical connection to the service personnel, ensuring these individuals can hear and communicate effectively.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Williams Sound DL102 Specifications

  • Audio Input

    3 (1 microphone or line input, isolated line input, Mic)

  • Connector Type

    3.5mm jack, Mic-2 pole line in, 3 pole line in, Mic in

  • Power Supply

    12 V DC 1.5 A output

  • Power Voltage

    100-240 V AC, 50/ 60 Hz - 2.0 A Input

  • Dynamic Range

    >60dB

  • THD

    THD+N < 0.5% - 1 kHz

  • Amplifier Type

    Constant current

  • Loop Resistance

    0.1 Ohm to 1.0 Ohm

  • Current Output

    2 A RMS at 1 kHz (2.8 APK)

  • Protection

    Thermal, short-circuit and start

  • Dimensions

    3.9 x 2.3 x 1" (100 x 60 x 25mm)

  • Weight

    0.48 lbs (218g)

About Williams Sound DL102

With the DL102 Counter Loop Amplifier, individuals with T-coil equipped hearing aids can experience enhanced audio clarity in intimate settings such as service counters and information desks. This innovative system is designed to transmit sound directly to T-coil hearing devices, ensuring users receive a clear and personalized audio feed without the need for a physical connection to the service personnel.

The DL102 amplifier seamlessly integrates into various environments, accepting audio through both a line-level input and the included MIC 103 Microphone. This flexibility allows for a wide range of audio sources to be amplified and distributed through the loop wire, which is strategically installed in the vicinity to create an induction loop area. Users within this area can then engage their T-coil hearing aids to capture the transmitted audio signal, resulting in an improved listening experience.

This loop system not only amplifies sound but also promotes inclusivity, enabling users to interact more effectively in public spaces. The package comes complete with a loop pad, which can be placed directly under the counter for a discreet setup, and a generous spool of wire, providing ample length for a customized installation to suit the specific dimensions of the intended area.

Crafted with precision, the DL102 Loop Amplifier is an essential tool for businesses and organizations looking to accommodate the hearing impaired with a user-friendly audio solution. Its straightforward installation and operation make it an ideal choice for enhancing communication in small, customer-facing environments.

Williams Sound DL102 Features

  • Innovative audio solution for T-coil equipped hearing aid users
  • Includes DL102 amplifier and MIC 103 Microphone for versatile audio input
  • Transmits sound through a loop wire to create an induction loop area
  • Enhances listening experience in small settings like service counters and desks
  • Package includes a loop pad and spool of wire for customized installation
  • Promotes inclusivity and effective communication in public spaces

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Innovative audio solution for T-coil equipped hearing aid users
  • Includes DL102 amplifier and MIC 103 Microphone for versatile audio input
  • Transmits sound through a loop wire to create an induction loop area
  • Enhances listening experience in small settings like service counters and desks
  • Package includes a loop pad and spool of wire for customized installation
  • Promotes inclusivity and effective communication in public spaces

What's in the box:

  • DL102 Counter Loop Amplifier
  • Power Supply
  • AC Line Cord
  • Loop Notice Stickers
  • Set of Adhesive Cable Clips
  • MIC 103 Microphone
  • Williams Sound 2 Year Warranty
