Williams Sound Digi-Wave TGS 11 400 Series Tour Guide System, Includes DLT 400 Transceiver, 11x DLR 400 RCH Receivers & MIC 144 Headset Microphone

SKU: WSDT11400RCH MFR: DWS TGS 11 400 RCH
Earn VIP Reward Points

Key Features

  • Crystal-clear audio: Experience exceptional sound quality with this tour guide system.
  • Long-lasting battery: Enjoy up to 32 hours of use with the DLR 400 RCH receivers.
  • Portable and protected: Carry case included for easy transport and secure storage.
  • Seamless connectivity: 2.4 GHz operation ensures reliable, interference-free audio.
  • Ideal for guided tours: Perfect for museums, factories, and outdoor excursions.
  • User-friendly design: Simple setup with intuitive controls for ease of operation.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Williams Sound DWS TGS 11 400 Specifications

DLT 400 Transceiver

DLT 400 Transceiver

Jump to...
  • Color

    Black/Silver (Front/Back)

  • Case Material

    Black ABS plastic

  • Battery type

    Lithium Polymer with smart charge built into transceiver; 1800 mAH

  • Battery life

    Up to 16 hrs talk time per charge at 1ch Tx and 1ch Rx

  • Power Save

    Auto Sleep Mode after 5 minutes of no RF signal from compatible devices

  • Charge time

    5 hrs. approx.

  • Operating frequencies

    2.4GHz (ISM band); 2402 - 2476MHz FHSS

  • Audio Frequency Response (-3dB Level)

    Intercom Mode: 100 - 7,200Hz
    Other Modes: 100 - 11,500Hz

  • SNR

    73 dB (A-weighted, default Rx volume with mic input )

  • THD

    0.1 % (Default Volume, 1kHz)

  • Microphone input

    Internal microphone (disabled when MIC jack engaged) and 3.5mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range

  • Line Input

    USB-C

  • Headphone Output

    3.5mm TRRS headphone jack; 25 mW, R 32 ohms

  • Audio Output

    Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041)

  • Range

    Up to 900' (274m) (depending upon environmental conditions)

  • Modulation

    FSK

  • RF Output

    19 dBm Typical

  • Security

    87 bit encryption (300 Series Compatible), 87+128 bit Encryption, Encrpytion PIN, Lock for settings

  • Side tone

    -6 dB below volume, tone variation (Off, Low and High settings available)

  • Indicators

    OLED

  • LEDs

    Red LED around Talk button when enabled; Bi-color, changing green and red LED at top

  • Charging Connectors

    USB-C; Two contacts for use with CHG 412

  • Compatible Receiver

    DLR 400 RCH, DLR 400 ALK, DLT 300 with some limitations and DLR 360 with some limitations

  • Operating Temperature Range

    14 Degree to 113 Degree F (-10 Degree to 45 Degree C)

  • Approvals

    FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki

  • Dimensions (W x H x D)

    4.22 x 2.6 x 0.50" (107.3 x 66 x 12.6mm)

  • Weight

    3.3 oz (94g) including battery

DLR 400 RCH Receiver

Jump to...
  • Color

    Black

  • Battery type

    Lithium Polymer with smart charge built into receiver; 1800 mAH

  • Battery life

    Up to 32 hrs per charge at 1ch Rx

  • Power Save

    Auto Sleep Mode after 5 minutes of no RF signal from compatible devices

  • Charge time

    5 hrs. approx.

  • Operating frequencies

    2.4 GHz (ISM band); 2402 - 2476 MHz FHSS

  • Audio Frequency Response (-3dB Level)

    Intercom Mode: 100 - 7,200Hz
    Other Modes: 100 - 11,500Hz

  • SNR

    73 dB (A-weighted)

  • THD

    0.1 % (Default Volume, 1kHz)

  • Headphone Output

    3.5mm TRRS headphone jack; 25 mW, R32 Ohm

  • Range

    Up to 900 ft (274 m) (depending upon environmental conditions)

  • Modulation

    FSK

  • RF Sensitivity

    -92 dBm

  • Security

    87 bit encryption (300 Series Compatible), 87+128 bit Encryption, Encrpytion PIN, Lock for settings

  • Indicators

    OLED

  • LEDs

    Bi-color, changing green and red LED at top

  • Charging Connectors

    USB-C; Two contacts for use with CHG 412

  • Compatible Units

    DLT 400, DLT 300 with some limitations

  • Operating Temperature Range

    14 Degree to 113 Degree F (-10 Degree to 45 Degree C)

  • Approvals

    FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki

  • Dimensions (W x H x D)

    4.22 x 2.6 x 0.50" (107.3 x 66 x 12.6mm)

  • Weight

    3.3 oz (94g) including battery

EAR 022 Surround Earphones

Jump to...
  • Style

    Around-ear speaker

  • Plug

    3.5mm mono

  • Cord

    39" (99.06cm)

  • Driver Size

    0.9" (23mm)

  • Nominal Impedance

    32 Ohm

  • Freq. Response

    20 - 20kHz

  • Max Power Input

    30 mW

  • Sensitivity

    118 dB at 1kHz

  • Weight

    0.52 oz (15g)

CCS 054 Carry Case

Jump to...
  • Dimensions (L x W x H)

    26.2 x 19.7 x 13.2" ( 67.5 x 50 x 33.5cm)

  • Weight

    23 lb (10.4kg)

About Williams Sound DWS TGS 11 400

- DLT 400 Transceiver & DLR 400 RCH Receiver -
The Digi-Wave system is a digital spread-spectrum (DSS), simultaneous two-way wireless listening system. Using it's frequency-hopping algorithm, it avoids interference and is a very secure method of communication. The Digi-Wave communication system allows users to listen and talk to one another wirelessly in a variety of scenarios.

A Digi-Wave system consists of at least one transceiver (DLT 400) and various combinations of transceivers and receivers (DLR 400 RCH or DLR 400 ALK). Combinations of one or more DLT's and DLR's can be used to facilitate different events, depending on what needs to be spoken and what needs to be heard. Typical scenarios include:

• Guided Tours - with one or more tour guides (2-way), with audience participation (2-way), or without audience participation (1-way)

• Language Interpretation - one or more interpreted languages transmitted to audience (1-way)

• Intercom - with up to six people able to speak simultaneously, and even more listening

• Hearing Assistance - featuring boosted audio for improved comprehension

Note: The DLR 400 RCH is rechargeable. If alkaline batteries are preferred, see the DLR 400 ALK.


- MIC 144 Headset Microphone -
Headset microphone with TRRS 3.5mm plug for use with Digi-Wave DLT 400 transceiver only.


- EAR 022 Surround Earphone -
Around-ear speaker earphone. Hangs on outside of ear. Excellent sound quality. Can be used with all Williams Sound receivers and Pocketalkers . Rigorously tested and approved for quality, reliability and compatibility with Williams Sound systems


- CHG 412 Charging Bay (12-Bay) -
12-bay drop in charger for DigiWave DLT 400 transceiver and DLR 400 RCH receiver


- CCS 054 Carry Case -
The CCS 054 is ideal for protecting and transporting large DigiWave, FM or IR systems. It has a lower foam insert with 60 slots, and an open-bay style top insert. Slots can hold single PPA Transmitters or Receivers, or can hold two Digiwave devices per slot. It has an extendable handle and bottom wheels for easy transport. Ideal for conferences, tour guide systems, or overseas shipping. Compatible with all Williams Sound body-pack transmitters and receivers.

The CCS 054 replaces the CCS 049.
Replacement Case: CCS 052
Replacement Foam: 1 set FMP 049
Optional: FMP 044: Open Bay Foam Insert


- CCS 061 Silicone Skins with Lanyard and Wrist Strap -
Silicone skins for Digi-Wave DLT 400 transceiver and DLR 400 RCH receiver, with lanyard and wrist strap.

Williams Sound DWS TGS 11 400 Features

  • DLT 400 Transceiver & DLR 400 RCH Receiver Features
  • Communicate as a group, or broadcast your audio one way. Use the system the way you need
  • DLR receiver supports unlimited listeners
  • Backwards compatibility with DigiWave 300 series
  • Crystal-clear digital sound quality
  • Completely Portable - No base station or rack-mounted components required
  • 128+87-bit encryption and PIN code
  • Simplified usage and set up
  • Increased range
  • Easy group join (for Guest units)
  • EAR 022 Surround Earphone Features
  • Hangs on outside of the ear
  • Excellent sound quality
  • 3.5mm mono plug
  • 1m cord
  • Monoaural
  • 32 ohm
  • Recommended for FM receivers and select IR receivers
  • Designed for individuals with mild and low gain hearing loss

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Crystal-clear audio: Experience exceptional sound quality with this tour guide system.
  • Long-lasting battery: Enjoy up to 32 hours of use with the DLR 400 RCH receivers.
  • Portable and protected: Carry case included for easy transport and secure storage.
  • Seamless connectivity: 2.4 GHz operation ensures reliable, interference-free audio.
  • Ideal for guided tours: Perfect for museums, factories, and outdoor excursions.
  • User-friendly design: Simple setup with intuitive controls for ease of operation.

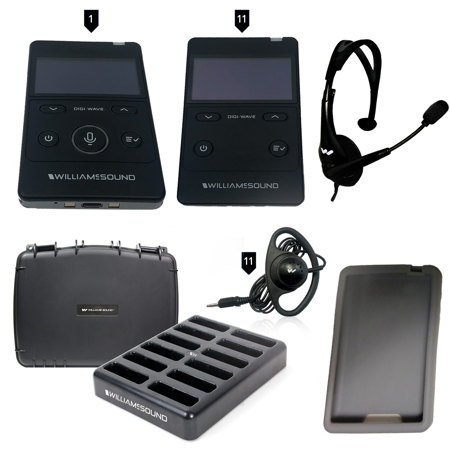

What's in the box:

  • DLT 400 Transceiver
  • 11x DLR 400 RCH Receivers
  • MIC 144 Headset Microphone
  • 11x EAR 022 Surround Earphones
  • CHG 412 12-Bay Charger
  • Power Supply
  • CCS 054 Carry Case
  • CCS 061 GR Silicone Skin with Lanyard & Wrist Strap (Gray)
  • Williams Sound 2 Year Limited Warranty (90 Day Limited Warranty on Accessories & 6 Month Limited Warranty on Internal Battery)
