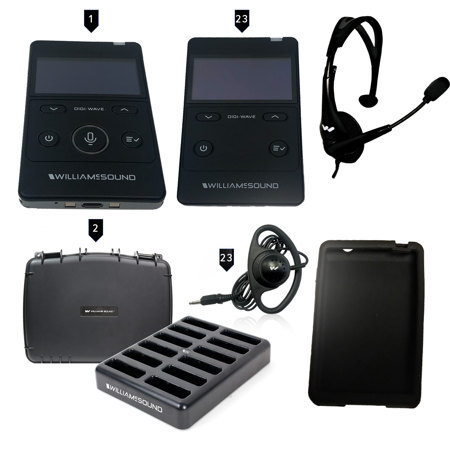

The Digi-Wave TGS 23 400 Series Tour Guide System is a digital spread-spectrum (DSS) technology that provides a secure and interference-free method of wireless communication. It includes the DLT 400 Transceiver, 23 DLR 400 RCH Receivers, and the MIC 144 Headset Microphone.
The Digi-Wave system is versatile and can be used in various scenarios such as guided tours, language interpretation, intercom use, and as a hearing assistance device. It allows for clear, simultaneous two-way communication.
The Digi-Wave TGS 23 400 Series Tour Guide System includes a MIC 144 Headset Microphone, EAR 022 Surround Earphone, CHG 412 Charging Bay, CCS 054 Carry Case for transportation, and CCS 061 Silicone Skins with a lanyard and wrist strap for device protection.
Yes, the Digi-Wave system can be customized with different combinations of transceivers and receivers to suit various events and requirements.
The CCS 061 Silicone Skins provide added protection for your Digi-Wave DLT 400 transceiver and DLR 400 RCH receiver, ensuring they withstand the rigors of daily use.
Review Summary
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
Black/Silver (Front/Back)
Black ABS plastic
Lithium Polymer with smart charge built into transceiver; 1800 mAH
Up to 16 hrs talk time per charge at 1ch Tx and 1ch Rx
Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
5 hrs. approx.
2.4GHz (ISM band); 2402 - 2476MHz FHSS
Intercom Mode: 100 - 7,200Hz
Other Modes: 100 - 11,500Hz
73 dB (A-weighted, default Rx volume with mic input )
0.1 % (Default Volume, 1kHz)
Internal microphone (disabled when MIC jack engaged) and 3.5mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range
USB-C
3.5mm TRRS headphone jack; 25 mW, R 32 ohms
Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041)
Up to 900' (274m) (depending upon environmental conditions)
FSK
19 dBm Typical
87 bit encryption (300 Series Compatible), 87+128 bit Encryption, Encrpytion PIN, Lock for settings
-6 dB below volume, tone variation (Off, Low and High settings available)
OLED
Red LED around Talk button when enabled; Bi-color, changing green and red LED at top
USB-C; Two contacts for use with CHG 412
DLR 400 RCH, DLR 400 ALK, DLT 300 with some limitations and DLR 360 with some limitations
14 Degree to 113 Degree F (-10 Degree to 45 Degree C)
FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki
4.22 x 2.6 x 0.50" (107.3 x 66 x 12.6mm)
3.3 oz (94g) including battery
Black
Lithium Polymer with smart charge built into receiver; 1800 mAH
Up to 32 hrs per charge at 1ch Rx
Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
5 hrs. approx.
2.4 GHz (ISM band); 2402 - 2476 MHz FHSS
Intercom Mode: 100 - 7,200Hz
Other Modes: 100 - 11,500Hz
73 dB (A-weighted)
0.1 % (Default Volume, 1kHz)
3.5mm TRRS headphone jack; 25 mW, R32 Ohm
Up to 900 ft (274 m) (depending upon environmental conditions)
FSK
-92 dBm
87 bit encryption (300 Series Compatible), 87+128 bit Encryption, Encrpytion PIN, Lock for settings
OLED
Bi-color, changing green and red LED at top
USB-C; Two contacts for use with CHG 412
DLT 400, DLT 300 with some limitations
14 Degree to 113 Degree F (-10 Degree to 45 Degree C)
FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki
4.22 x 2.6 x 0.50" (107.3 x 66 x 12.6mm)
3.3 oz (94g) including battery
Around-ear speaker
3.5mm mono
39" (99.06cm)
0.9" (23mm)
32 Ohm
20 - 20kHz
30 mW
118 dB at 1kHz
0.52 oz (15g)
26.2 x 19.7 x 13.2" ( 67.5 x 50 x 33.5cm)
23 lb (10.4kg)
After extensive research and development, the Digi-Wave TGS 23 400 Series Tour Guide System emerges as a cutting-edge solution for wireless communication. This comprehensive package includes the DLT 400 Transceiver, 23 DLR 400 RCH Receivers, and the MIC 144 Headset Microphone, all designed to facilitate seamless, two-way communication in a variety of settings.
The Digi-Wave system is a digital spread-spectrum (DSS) technology, a robust and secure method of wireless communication that employs a frequency-hopping algorithm to avoid interference. This simultaneous two-way wireless listening system allows users to engage in clear, uninterrupted conversations, making it an ideal choice for professional and personal use.
The DLT 400 Transceiver and DLR 400 RCH Receiver are the heart of the Digi-Wave system. The system can be customized with various combinations of transceivers and receivers to suit different events and requirements. Whether it's a guided tour with audience participation, language interpretation, an intercom system for up to six people, or a hearing assistance device with boosted audio, the Digi-Wave system delivers exceptional performance.
The MIC 144 Headset Microphone, designed exclusively for use with the Digi-Wave DLT 400 transceiver, ensures clear and crisp audio transmission. The EAR 022 Surround Earphone, an around-ear speaker earphone, provides excellent sound quality and is compatible with all Williams Sound receivers and Pocketalkers.
The package also includes the CHG 412 Charging Bay, a 12-bay drop-in charger for the DigiWave DLT 400 transceiver and DLR 400 RCH receiver, ensuring your devices are always ready for use. The CCS 054 Carry Case, with its 60 slots and open-bay style top insert, is perfect for protecting and transporting your DigiWave, FM, or IR systems. It's equipped with an extendable handle and bottom wheels for easy transport, making it ideal for conferences, tour guide systems, or overseas shipping.
Finally, the CCS 061 Silicone Skins with Lanyard and Wrist Strap provide added protection for your Digi-Wave DLT 400 transceiver and DLR 400 RCH receiver, ensuring they withstand the rigors of daily use. With the Digi-Wave TGS 23 400 Series Tour Guide System, you're investing in a reliable, high-quality communication solution.
