Williams Sound Digi-Wave AIM Advanced Interpretation Module System

SKU: WSDWSYS1AIM0 MFR: DW SYS1AIM-00
Earn VIP Reward Points

Key Features

  • Crystal-clear audio: Experience superior sound quality with the Digi-Wave AIM system.
  • Interpretation made easy: Ideal for multilingual events, facilitating seamless communication.
  • Long-lasting battery: Enjoy up to 16 hours of talk time with the DLT 400-AIM transceiver.
  • Secure wireless: Benefit from 87-bit encryption for confidential discussions or meetings.
  • Versatile headsets: Includes multiple headset mics for comfortable, hands-free use.
  • Portable charging: Keep your devices ready with the included 12-bay charger & carrying case.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Williams Sound DW SYS1AIM Specifications

DLT 400-AIM Transceiver

DLT 400-AIM Transceiver

Jump to...
  • Color

    Black/Silver (Front/Back)

  • Material

    Black ABS plastic

  • Battery

    Lithium Polymer with smart charge built into transceiver, 1800 mAH

  • Battery life

    Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx

  • Power Save

    Auto Sleep Mode after 5 minutes of no RF signal from compatible devices

  • Charge time

    5 hrs (Approx.)

  • System Voltages

    OLED 14VDC
    RF 5VDC
    Logic 3.3 VDC

  • Operating frequencies

    2.4 GHz (ISM band)
    2402 - 2476 MHz FHSS

  • Audio Frequency response (-3dB Level)

    Intercom Mode, Court Mode, INTP24 Mode, Q&A INTP: 100 - 7,200 Hz
    Other Modes: 100 - 11,500 Hz

  • SNR

    73 dB (A-weighted, default Rx volume with mic input )

  • THD

    0.1 % (Default Volume, 1kHz)

  • Microphone input

    Internal microphone (disabled when MIC jack engaged) and 3.5mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range

  • Line Input

    USB-C, Adjustable level

  • Headphone Output

    3.5mm TRRS headphone jack
    25 mW, R 32 ohms

  • Audio Output

    Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041)
    Line: USB-C, Adjustable level

  • Range

    Up to 900' (274m) (depending upon environmental conditions)

  • Modulation

    FSK

  • RF Output

    19 dBm Typical

  • Security

    87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings

  • Side tone

    -6 dB below volume, tone variation (Off, Low and High settings available)

  • Indicators

    OLED

  • LEDs

    Red LED around Talk button when enabled, Bi-color, changing green and red LED at top

  • Charging Connectors

    USB-C, Two contacts for use with CHG 412

  • Compatible Receiver

    DLR 400 RCH (with firmware 1.3.0 or greater)

  • Operating Temperature Range

    14 Degree to 113 Degree F (-10 Degree to 45 Degree C)

  • Approvals

    FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Gitek

  • Battery Info

    Required, Included

  • Battery Material

    Lithium Ion

  • Battery Type

    Non-Universal

  • Battery Quantity

    3

  • Dimensions (W x D x H)

    2.60 x 4.22 x 0.50" (66 x 107.3 x 12.6mm)

  • Weight

    3.3 oz (94g) (Including Battery)

DLR 400 RCH Receiver

Jump to...
  • Color

    Black

  • Battery

    Lithium Polymer with smart charge built into receiver; 1800 mAH

  • Battery life

    Up to 32 hrs per charge at 1ch Rx

  • Power Save

    Auto Sleep Mode after 5 minutes of no RF signal from compatible devices

  • Charge time

    5 hrs (Approx.)

  • Operating frequencies

    2.4 GHz (ISM band)
    2402 - 2476 MHz FHSS

  • Audio Frequency Response (-3dB Level)

    Intercom Mode: 100 - 7,200Hz
    Other Modes: 100 - 11,500Hz

  • SNR

    73 dB (A-weighted)

  • THD

    0.1 % (Default Volume, 1kHz)

  • Headphone Output

    3.5mm TRRS headphone jack; 25 mW, R32 Ohm

  • Range

    Up to 900' (274m) (depending upon environmental conditions)

  • Modulation

    FSK

  • RF Sensitivity

    -92 dBm

  • Security

    87 bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings

  • Indicators

    OLED

  • LEDs

    Bi-color, changing green and red LED at top

  • Charging Connectors

    USB-C; Two contacts for use with CHG 412

  • Compatible Units

    DLT 400, DLT 300 with some limitations

  • Operating Temperature Range

    14 Degree to 113 Degree F (-10 Degree to 45 Degree C)

  • Approvals

    FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki

  • Battery Info

    Required, Included

  • Battery Material

    Lithium Ion

  • Battery Type

    Non-Universal

  • Battery Quantity

    9

  • Dimensions (W x H x D)

    4.22 x 2.6 x 0.50" (107.3 x 66 x 12.6mm)

  • Weight

    3.3 oz (94g) (Including Battery)

MIC 144 Headset Microphones

Jump to...
  • Microphone Element

    Electret Condenser, Noise Cancelling

  • Microphone Sensitivity

    -62 +/- 4dBv / microbars @1kHz @1/4"

  • Microphone Frequency Response

    100kHz - 10 kHz

  • Microphone Signal to Noise Ratio

    More than 60dB @ 1kHz

  • Earphone Sensitivity

    105dB SPL Typical at 1kHz @ 1mW on flat plate coupler

  • Earphone Impedance

    32 ohms typical @ 1 kHz

  • Boom

    Gooseneck

  • Plug

    3.5mm TRRS with black plastic housing and strain relief

MIC 414 Plug-In Microphone

Jump to...
  • Color

    Black

  • Phantom Powered

    No

  • Pick-Up Pattern

    Unidirectional

  • Element

    Electret Condenser

  • Mic Diameter

    Without Windscreen: 0.51" (13mm)
    With Windscreen: 0.90 " (23mm)

  • Sensitivity

    -36 dB +/- 3 dB

  • Frequency Range

    100 Hz - 15 kHz

  • Output Impedance

    2 k Ohm

  • Standard Operation Range

    1.5 - 5 V DC

  • Plug

    3.5mm TRRS

  • Cord

    None

  • Approvals

    RoHS

  • Weight

    0.5 oz (14g)

EAR 022 Surround Earphone

Jump to...
  • Style

    Around-ear speaker

  • Plug

    3.5mm mono

  • Cord

    39" (99.06cm)

  • Driver Size

    23mm

  • Nominal Impedance

    32 Ohm

  • Freq. Response

    20 - 20kHz

  • Weight

    0.52 oz (15g)

CHG 412 PRO Charger

Jump to...
  • Max Power Input

    30 mW

  • Sensitivity

    118 dB @ 1kHz

  • Enclosure

    Black, ABS plastic with metal base

  • Power Supply Input

    TFP 066, 90-240 VAC input, 1.5 A max

  • Power Supply

    Universal DC adapter, 5 VDC - 6A output, center positive

  • Output Rating

    5 VDC, 0.5 A per bay (12 charging bays)

  • Charge time

    5 hrs (Approx.)

  • Unit Capacity

    12 -Units

  • Compatible Units

    Transceiver: DLT 400
    Receiver: DLR 400 RCH

  • Indicators

    Charge status indicators on DLT or DLR

  • Approvals

    CE, FCC, WEEE, RoHS, CB

  • Dimensions (L x W x H)

    9 x 7 x 1.5" (23 x 17.8 x 3.8cm)

  • Weight

    1.8 lbs (845g)

About Williams Sound DW SYS1AIM

Digi-Wave Advanced Interpretation Module (AIM) system is a portable, digital communication system specially designed for interpretation. With Digi-Wave AIM, you can enjoy all the features of the original Digi-Wave, plus; Q&A mode that allows you to seamlessly switch between languages during interpreted discussions, create customized channel names, use a control mode for offline programming, benefit from subgroup division, and access an impressive 24 channels.

Digi-Wave AIM system is your simultaneous interpretation solution for interpreted presentations, guided tours, business meetings, and more.

The Digi-Wave AIM system is designed specifically for interpretation and includes all the features of the original Digi-Wave. It also has additional features such as Interpretation Q&A Mode, which facilitates questions and answers between the audience and presenter in a bilingual setting. This mode can also be used in bilingual meetings and two-way tours because two open mics for each language are available. This allows for a fluent and natural interchange of opinions and commentary across language barriers.

Customizable channel naming allows users to choose from 100 ISO language abbreviations or create custom 5-character channel names. Devices can be divided into subgroups to limit the channels visible on them. The Control Mode allows for channel naming and sub-groups to be set up offline without interrupting an ongoing event. With 24 available channels, the Digi-Wave AIM system is an industry-leading simultaneous interpretation solution for interpreted presentations, guided tours, and business meetings.

This system supports an interpreted presentation for two languages with one presenter, one bilingual interpreter, one transceiver with a plug-mount mic for audience questions, and nine receivers for the audience to hear the interpreted presentation. Augment with additional DLR 400 RCH receivers for more audience members or with additional DLT 400-AIM transceivers for bilingual meetings or two-way tours.

Q&A Mode to facilitate questions and answers between the audience and a presenter in a bilingual setting. Q&A Mode can also be utilized in bilingual meetings and two-way tours since two open mics for each language are available. This enables a fluent and natural interchange of opinions and commentary across language barriers


- DLT 400-AIM Transceivers -
The Digi-Wave 400 Advanced Interpretation Module (AIM) is a portable, digital communication system specially designed for simultaneous interpretation. With Digi-Wave AIM, you can enjoy all the features of Digi-Wave 400 plus interpretation equipment features for effortless interpreting: Q&A mode for switching languages during interpreted discussions, customized channel naming, a control mode for offline programming, subgroup division, and an industry-leading 24 available channels.

The Digi-Wave AIM Transceiver is designed to simplify simultaneous interpretation during trainings, presentations, meetings, and tours. It supports bilingual, two-way guided tours, language interpretation with Q&A, and bilingual meetings. With Digi-Wave Advanced Interpretation Mode, you can enjoy all the features of Digi-Wave 400 plus; effortless Q&A mode for switching languages during interpreted discussions, customized channel naming, a control mode for offline programming, subgroup division, and an industry-leading 24 available channels.

Q&A Mode
Industry unique feature enables easy Questions and Answers switching between two languages. With this device, every participant can listen and speak, enabling seamless discussions with two open microphones per language at a time. The industry-unique feature of two-way communication between the interpreter and the audience also allows audience members to ask questions back to the interpreter.

Control Function
The control function allows administrators to program channel names and subgroups offline and update all devices in the system when convenient for the administrator.

Subgroup Division
The subgroups function allows administrators to program custom channel names and subgroups offline, making it easy for guests to identify the language they are hearing or the subgroup they belong to. Great for divisible rooms or changing group needs.

Features
• Q&A Mode - Industry unique feature enables easy Questions and Answers switching between two languages for simultaneous interpreting
• Custom Channel Naming - Customize room names or choose from 100 ISO language codes
• 24 Channels - Industry-leading channel count with up to 24 channels available for interpretation
• Control Function - Program channel naming and subgroups offline
• Subgroup Division- Divide interpretation groups into subsets of channels. Great for divisible rooms or changing group needs


- DLR 400 RCH Receivers -
The Digi-Wave system is a digital spread-spectrum (DSS) wireless listening system. The receiver uses a frequency-hopping algorithm to avoid interference and provide a secure method of communication. The Digi-Wave 400 receiver allows users to listen to users with a Digi-Wave transceiver wirelessly in a variety of scenarios.

Great for use during training, presentations, and tours, especially in houses of worship, classrooms, and healthcare facilities.

A Digi-Wave system consists of at least one transceiver (DLT 400) and various combinations of transceivers and receivers (DLR 400 RCH or DLR 400 ALK). Combinations of one or more DLT's and DLR's can be used to facilitate different events, depending on what needs to be spoken and what needs to be heard. Typical scenarios include:

• Guided Tours - with one or more tour guides (2-way), with audience participation (2-way), or without audience participation (1-way)
• Language Interpretation - one or more interpreted languages transmitted to audience (1-way)
• Intercom - with up to six people able to speak simultaneously, and even more listening
• Hearing Assistance - featuring boosted audio for improved comprehension

Note: The DLR 400 RCH is rechargeable. If alkaline batteries are preferred, see the DLR 400 ALK.


- MIC 144 Headset Microphones -
Experience clear communication with this single-muff headset microphone featuring a TRRS 3.5mm plug. It seamlessly integrates with the DLT 400 transceiver and can also be used with DLT 100/300 transceivers when paired with the AC ADP3 adapter. This headset microphone can be used with the TRRS input on the IC-2 interpreter console.


- MIC 414 Plug-In Microphone -
Plug-mount TRRS microphone, no cord, unidirectional condenser. Can be used with Digi-Wave DLT 400 and DLT 400-AIM transceivers

Features
• 3.5mm TRRS plug
• Unidirectional condenser


- EAR 022 Surround Earphone -
Experience a secure fit with the Surround Earphone, designed to hang on the outside of the ear. Enjoy excellent sound quality with a 32 Ohm mono configuration. Ideal for mild hearing loss and low gain. Weighing just 0.04 lbs, this lightweight earphone ensures a comfortable and high-quality audio experience.

Features
• Hangs on outside of the ear
• Excellent sound quality
• 3.5mm mono plug
• 1m cord
• Monoaural
• 32 ohm
• Recommended for FM receivers and select IR receivers
• Designed for individuals with mild and low gain hearing loss


- CHG 412 PRO 12-Bay Drop-in Charger with Case -
12-bay, drop-in charger with case for Digi-Wave DLT 400 transceivers and/or DLR 400 RCH receivers. Power Supply Included.

Williams Sound DW SYS1AIM Features

  • Q&A Mode to facilitate questions and answers between the audience and a presenter in a bilingual setting
  • Custom Channel Naming - Customize room names or choose from 100 ISO language codes
  • 24 Channels - Industry-leading channel count with up to 24 channels available for interpretation
  • Control Function - Program channel naming and subgroups offline without interrupting an ongoing event
  • Subgroup Division- Divide interpretation groups into subsets of channels. Great for divisible rooms or changing group needs

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Product Documents

User Manual

Key Features

  • Crystal-clear audio: Experience superior sound quality with the Digi-Wave AIM system.
  • Interpretation made easy: Ideal for multilingual events, facilitating seamless communication.
  • Long-lasting battery: Enjoy up to 16 hours of talk time with the DLT 400-AIM transceiver.
  • Secure wireless: Benefit from 87-bit encryption for confidential discussions or meetings.
  • Versatile headsets: Includes multiple headset mics for comfortable, hands-free use.
  • Portable charging: Keep your devices ready with the included 12-bay charger & carrying case.

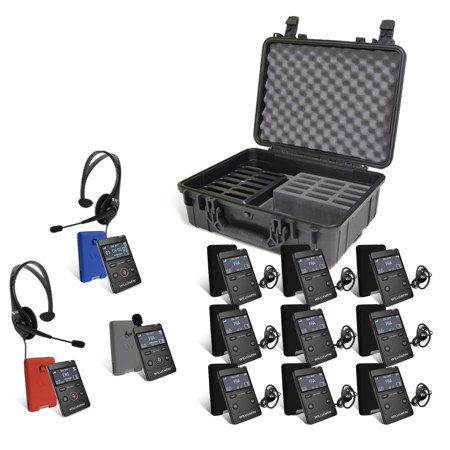

What's in the box:

  • 3x DLT 400-AIM Transceivers
  • 9x DLR 400 RCH Receivers
  • 2x MIC 144 Headset Microphones
  • MIC 414 Plug-In Microphone
  • 9x EAR 022 Surround Earphone
  • CHG 412 PRO Case with 12-Bay Charger
  • CCS 061 GR Silicone Skin (Gray)
  • 9x CCS 061 BK Silicone Skins (Black)
  • CCS 061 BL Silicone Skin (Blue)
  • CCS 061 RD Silicone Skin (Red)
  • Williams Sound 2 Year Limited Warranty (90 Day Limited Warranty on Accessories & 1 Year Limited Warranty on Internal Battery)
