Black/Silver with silver legends on the front, white legends on the back
Standard 19" Rack, one EIA rack space high, 1/2 space wide
1-2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits
Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
Push On/Push Off latching power button, backlit green indicates power ON, backlight off indicates power OFF, fading from bright to dark indicates Sleep Mode
Operating: +32 to +104 Degree F (0 Degree C to 40 Degree C)
Storage: -4 to +158 Degree F (-20 to 70 Degree C)
3.12" High Resolution OLED display with selections via buttons. Hosted Web page. Remote control and monitoring
Yes
RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address
FCC, RoHS3, WEEE, Industry Canada
72.1-75.9 MHz , 17 wideband channels (selectable)
+/- 2 ppm stability, 0-50 Degree C
+/- 75 kHz maximum
75 microsec
Does not exceed 80 mV/m at 3 m
ANT 005, ANT 021, ANT 024, or ANT 025
Up to 1000' (304 m) with ANT 005 coaxial antenna mounted on rear chassis connector
10-32 stud connector in center of unit (pcb mounted)
F-connector on rear chassis
1 Green LED On Air Indicator
Full, Medium, Low or OFF indicated by menu icon.
30 min. duration, 4 hr. duration, or Always On selected via menu. Starts when audio is below -18 dB level with no button pressed for selected duration
DSP based
Compression: 1:1, 1.5:1 or 2:1
High-pass and Low-pass Filter Frequency control
31-16000 Hz, +/-3 dB (re: 1 kHz, +/-3 dB) ("Music" Audio Preset)
67 dB (typical) Transmitted RF
Less than 0.25% @ 1 kHz (RF output)
Greater than 57 dB @ 1 kHz, Mic or Line
Combination 3-pin XLR, 1/4" (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power
In menu, adjustable to 0 to -50 dB, in 1dB steps
14.4 VDC applied through 2.2 kOhms resistors to analog combo jack: Pin 2 and Pin 3 on XLR jack, or tip and ring on 1/4" TRS jack
10-LED array that reads -18 to +9 dB at 3 dB intervals. 7 Green, 2 Amber, and 1 red LED. Green LEDs indicate normal operating audio level peaks, Amber LEDS indicate close to overload peaks, Red LED indicates overload peaks
1/4" TRS stereo jack, mono signal, 14.85 mW at +9dB, maximum in 33 O (level adjustable in menu 0 to -40 dB in 2 dB steps)
RCA jack (black), -10 dBV (.32 VRMS)
Output impedance 100 Ohms at +9dB
Nominal (1st Amber LED): -55 dBV (1.7 mV RMS)
Overload Warning (Displayed on Screen): -15 dBV (180 mV RMS)
Absolute Max. Rating: +20 dBV (10.0 V RMS)
Nominal (1st Amber LED): -25 dBV (55 mV RMS)
Overload Warning (Displayed on Screen): +16 dBV (6.3 V RMS)
Absolute Max. Rating: +20 dBV (10.0 V RMS)
8.45 x 8.25 x 1.72" (21.5 x 21 x 4.4cm)
Transmitter: 3.2 lb (1.45kg)
Black
2x AA Alkaline or 2 x AA NiMH
Two (2x) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs
(2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs
52mA nominal
- 0 to 50C
17, accessed via seek button in battery compartment
72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz
75 kHz
75 kHz
75 microS
Power: Green
Low Battery: Flashes Green
+/- 120 kHz
2 microV at 12 dB Sinad with squelch defeated
100 mV
200 - 15 kHz
FM, +/- 75 kHz peak deviation
65 dB min @ 100 uV
Integral with earphone/headphone cord
35 mW max, peak into 16 ohms
3.5mm stereo/mono phone jack
Earbud-type with foam cushion, 3.5 mm plug, 32 O
Enters sleep mode after approx 6 mins of no RF signal
FCC, Industry Canada, RoHS, WEEE
4.1 x 2.85 x 1.38" (104 x 72 x 35mm)
With batteries: 4.6 oz (130g)
Without batteries: 2.6 oz (73g)
Around-ear speaker
3.5mm mono
39" (99.06cm)
0.9" (23mm)
32 Ohm
20 - 20kHz
30 mW
118 dB at 1kHz
0.52 oz (15g)
Black
3.5mm mono plug
8-16 Ohms
500 mW max
25 mW input at 1000 Hz produces 1.7 A/m 6" above the
center of loop
85microW input produces 0.1 A/m (IEC Standard)
RoHS, WEEE
18.5" (47cm) cord
1.5 oz (42.5g)
Black ABS
90 - 240 VAC input
TFP 037 Switching AC adapter, 5 VDC - 4A output
16 Hour Charge: 140 mA
Pulse/Maintain: 140 mA
16 hours nominal
12 Units
Individual Charging Indicators: Red LEDs.
LEDs blink when batteries are charged
CE, WEEE, RoHS
9.5 x 7.4 x 1.7" (24.1 x 18.8 x 4.3cm)
1.2 lb (0.54 kg), excluding power supply
PPA T45,PPA T45NET, PPA T27 Transmitters
F-connector
RG 59 coax
75 Ohm
80" (203cm)
22' (6.7m)
10.375 x 6.25 x 0.125" (26.3 x 15.9 x 0.31cm)

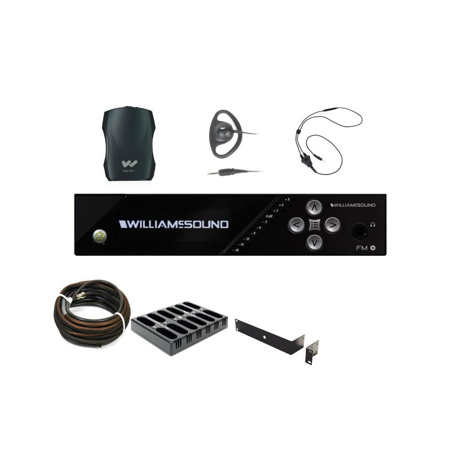

Because clarity and inclusivity are paramount in large venues, the FM 557 Pro D Plus Large Area Dual FM & Wi-Fi Assistive Listening System from Williams Sound stands out as a comprehensive solution for assistive listening needs. This advanced system integrates the high-quality WaveCAST Wi-Fi audio server technology with a professional FM assistive listening system, offering unparalleled flexibility and exceptional audio quality.
The core of this system is the FM T55 D Transmitter, which is built on a robust digital audio (DSP) platform, ensuring crystal-clear sound transmission. It supports both FM and Wi-Fi connectivity, allowing end users to choose between using the included PPA R37N Receivers or their own smartphones with the WaveCAST Listening App for a discreet listening experience. This innovative approach means that venues no longer have to compromise when it comes to providing assistive listening options.
The FM Plus transmitter is not only versatile but also future-proof, with an optional Dante interface for full audio networking, making it a smart choice for integrators looking for a scalable solution. Although this particular model is not Dante compatible, those interested in this feature can consider the FM T55 D for their needs.
Listeners using the PPA R37N Receivers will appreciate the simple, seek-button channel selection, accessing 17 pre-set wideband frequencies between 72-76 MHz. These receivers are digitally synthesized for enhanced audio clarity and stability and feature a versatile 3.5mm stereo/mono jack that is compatible with a range of earphones and headphones, as well as being neckloop/telecoil-equipped-hearing-aid compatible.
The EAR 022 Surround Earphones, included in this package, are designed to hang on the outside of the ear, providing excellent sound quality without intruding into the ear canal. These earphones are rigorously tested to ensure they meet the high standards of quality, reliability, and compatibility with Williams Sound systems.
For those with T-Coil-equipped hearing aids, the NKL 001 Neckloop offers a seamless audio experience by magnetically coupling the audio output from the system into the hearing aid. It includes a safety breakaway feature for added security in dynamic environments.
Keeping the system powered and organized is effortless with the CHG 3512 12-Bay Charger, which can charge up to 12 receivers or transmitters, reducing the need for frequent battery replacements. The ANT 005 Remote Coaxial Antenna ensures reliable signal transmission over large areas and is compatible with an optional 50' antenna extension for even greater coverage.
Additionally, the IDP 008 ADA Wall Plaque informs patrons of the availability of assistive listening devices, ensuring compliance and awareness, while the RPK 005 Rack Panel Kit allows for a neat and professional installation of the transmitter in any standard equipment rack.
This comprehensive system is not only durable and reliable but also designed with the user in mind, offering a high-quality listening experience for individuals with hearing impairments in various large-area settings such as conference rooms, classrooms, and auditoriums. The FM 557 Pro D Plus system by Williams Sound is an innovative and inclusive solution for those seeking to enhance audio accessibility in public spaces.
