Williams Sound FM 558-12 Pro D Plus Large Area Dual FM and Wi-Fi Assistive Listening System, Includes FM T55 D Transmitter with Dante Input, 12x PPA R38N Receivers

SKU: WSFM55812PD MFR: FM 558-12 PRO D
Earn VIP Reward Points

Key Features

  • Crystal-clear audio: FM T55 D transmitter ensures exceptional sound quality for all listeners.
  • Dual FM & Wi-Fi: This assistive listening system supports both FM and Wi-Fi for versatile use.
  • Ideal for large venues: Perfect assistive listening in theaters, churches, and conference rooms.
  • Dante input included: Seamlessly integrate with existing Dante audio networks for streamlined setup.
  • 12 PPA R38N receivers: Provide assistive listening to multiple users with included receivers.
  • Easy to charge: CHG 3512 12-bay charger keeps your assistive listening system ready to use.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Williams Sound FM 558-12 Pro D Specifications

FM T55 D Transmitter: General

FM T55 D Transmitter: General

Jump to...
  • Color

    Black/Silver with silver legends on the front, white legends on the back

  • Rack Mount

    Standard 19" Rack, one EIA rack space high, 1/2 space wide
    1-2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits

  • Power Supply

    Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector

  • Power ON Indicator

    Push On/Push Off latching power button, backlit green indicates power ON, backlight off indicates power OFF, fading from bright to dark indicates Sleep Mode

  • Temperature Range

    Operating: 32 to 104 Degree F (0 to 40 Degree C)
    Storage: -4 to 158 Degree F (-20 to 70 Degree C)

  • User Interface

    3.12" High Resolution OLED display with selections via buttons. Hosted Web page. Remote control and monitoring

  • Dante

    Yes

  • Ethernet

    RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address

  • Approvals

    FCC, RoHS3, WEEE, Industry Canada

FM T55 D Transmitter: RF

Jump to...
  • Operating Frequencies

    72.1-75.9 MHz , 17 wideband channels (selectable)

  • Frequency Accuracy

    +/- 2 ppm stability, 0-50 Degree C

  • Deviation

    +/- 75 kHz maximum

  • Pre-Emphasis

    75 microsec

  • RF Field Strength

    Does not exceed 80 mV/m at 3 m

  • Compatible Antennas

    ANT 005, ANT 021, ANT 024, or ANT 025

  • Transmission Range

    Up to 1000' (304m) with ANT 005 coaxial antenna mounted on rear chassis connector

  • RF Outputs

    10-32 stud connector in center of unit (pcb mounted)
    F-connector on rear chassis

  • RF Transmit Indicator

    1 Green LED On Air Indicator

  • RF Power

    Full, Medium, Low or OFF indiacted by menu icon.

  • RF Time Out (sleep mode)

    30 min. duration, 4 hr. duration, or Always On selected via menu. Starts when audio is below -18 dB level with no button pressed for selected duration

FM T55 D Transmitter: Audio

Jump to...
  • Audio Processor Functions

    DSP based
    Compression: 1:1, 1.5:1 or 2:1
    High-pass and Low-pass Filter Frequency control

  • Frequency Response

    31-16000 Hz, +/-3 dB (re: 1 kHz, +/-3 dB) ("Music" Audio Preset)

  • Signal-to-Noise Ratio

    67 dB (typical) Transmited RF

  • Total Harmonic Distortion

    Less than 0.25% @ 1 kHz (RF output)

  • Common Mode Rejection

    Greater than 57 dB @ 1 kHz, Mic or Line

  • Audio Inputs

    Combination 3-pin XLR, 1/4" (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power

  • Audio Input Gain Adjust

    In menu, adjustable to 0 to -50 dB, in 1dB steps

  • Phantom Power

    14.4 VDC applied through 2.2 kOhms resistors to analog combo jack: Pin 2 and Pin 3 on XLR jack, or tip and ring on 1/4" TRS jack

  • Audio Level Indicators

    10-LED array that reads -18 to +9 dB at 3 dB intervals. 7 Green, 2 Amber, and 1 red LED. Green LEDs indicate normal operating audio level peaks, Amber LEDS indicate close to overload peaks, Red LED indicates overload peaks

  • Headphone Output

    1/4" TRS stereo jack, mono signal, 14.85 mW at +9dB, maximum in 33 O (level adjustable in menu 0 to -40 dB in 2 dB steps)

  • Line Output

    RCA jack (black), -10 dBV (.32 VRMS)
    Output impedance 100 Ohms at +9dB

FM T55 D Transmitter: Input Levels

Jump to...
  • Microphone (at Audio Input Gain = 0dB)

    Nominal (1st Amber LED): -55 dBV (1.7 mV RMS)
    Overload Warning (Displayed on Screen): -15 dBV (180 mV RMS)
    Absolute Max. Rating: +20 dBV (10.0 V RMS)

  • Line (at Audio Input Gain = 0dB)

    Nominal (1st Amber LED): -25 dBV (55 mV RMS)
    Overload Warning (Displayed on Screen): +16 dBV (6.3 V RMS)
    Absolute Max. Rating: +20 dBV (10.0 V RMS)

FM T55 D Transmitter: Physical

Jump to...
  • Dimensions (W x D x H)

    8.45 x 8.25 x 1.72" (21.5 x 21 x 4.4cm)

  • Weight

    3.2 lb (1.45kg)

PPA R38N Receiver

Jump to...
  • Color

    Black/Silver. Black ABS Plastic case with Aluminum faceplate

  • Battery Type

    2x AA Alkaline or 2x AA NiMH Rechargeable

  • Battery Life

    2x AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs.
    2x AA rechargeable NiMH batteries (BAT 026-2), 1500mAh, approx. 32 hrs.

  • Current Consumption

    52 mA nominal

  • Operating Temp. Range

    32 - 122 Degree F (0 to 50 Degree C)

  • Channels

    17 Wideband, accessed via menu

  • Operating Frequencies

    72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz

  • FM Deviation

    75 kHz

  • De-Emphasis

    75 microS

  • Display Screen

    1" OLED

  • Power Indication

    Power button, backlit green. Good battery strength - glows solid. Low battery -flashes

  • Sensitivity

    2 microV at 12 dB Sinad with squelch defeated

  • Input Overload

    100 mV

  • Frequency Response

    200 Hz - 15 kHz, +/-3dB

  • Modulation

    FM, +/- 75 kHz peak deviation

  • Signal-to-Noise Ratio

    Minimum 65 dB @ 1.0V

  • Receive Antenna

    Integral with earphone/headphone cord

  • Audio Output

    35 mW max at 16 O

  • Headphone Connector

    3.5mm stereo jack, mono output for stereo or mono earphones/headphones

  • Supplied Earphone

    Stereo,earbud-type with foam cushion, 3.5 mm plug, 32 O

  • Power Save Mode

    Enters sleep mode after approximately 3 minutes of no RF signal

  • Approvals

    FCC, Industry Canada, RoHS, WEEE

  • Dimensions

    4.1 x 2.85 x 1.38" (104 x 72 x 35mm)

  • Weight

    4.6 oz (130g) (With batteries)
    2.6 oz (73g) (Without batteries)

EAR 022 Surround Earphone

Jump to...
  • Style

    Around-ear speaker

  • Plug

    3.5mm mono

  • Cord

    39" (99.06cm)

  • Driver Size

    23mm

  • Nominal Impedance

    32 Ohm

  • Frequency Response

    20 - 20 kHz

  • Max Power Input

    30 mW

  • Sensitivity

    118 dB @ 1kHz

  • Weight

    0.5 oz (15g)

NKL 001 Neckloops

Jump to...
  • Color

    Black

  • Cord Length

    18.5" (46.9cm)

  • Connector

    3.5mm mono plug

  • Impedance

    8-16 Ohms

  • Input Power

    500 mW max

  • Magnetic Field Strength

    25 mW input at 1000 Hz produces 1.7 A/m 6" above the center of loop
    85microW input produces 0.1 A/m (IEC Standard)

  • Approvals

    RoHS, WEEE

  • Weight

    1.5 oz (42.5g)

CHG 3512 12-Bay Charger

Jump to...
  • Color

    Black ABS

  • Power Consumption

    Input: 90 - 240 VAC input
    Output: 5 VDC - 4A

  • Power Supply

    TFP 037 Switching AC adapter

  • Charging Rate

    16 Hour Charge: 140 mA
    Pulse/Maintain: 140 mA

  • Charging Time

    16 hours nominal

  • Unit Capacity

    12 Units

  • Indicators

    Individual Charging Indicators: Red LEDs. LEDs blink when batteries are charged

  • Approvals

    CE, WEEE, RoHS

  • Dimensions (L x W x H)

    9.5 x 7.4 x 1.7" (24.1 x 18.8 x 4.3cm)

  • Weight

    1.2 lb (0.54kg) (Excluding power supply)

BAT 026-2 AA NiMH Rechargeable Batteries

Jump to...
  • Battery Type

    NiMH

  • Battery Output

    1.2 Volt

  • Battery Capacity

    1500 mAh

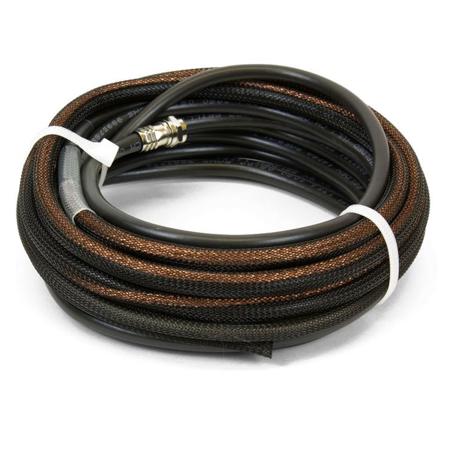

ANT 005 Remote Coaxial Antenna

Jump to...
  • Compatibility

    PPA T45,PPA T45NET, PPA T27 Transmitters

  • Connector type

    F-connector

  • Cable type

    RG 59 coax

  • Nominal Impedance

    75 Ohm

  • Approvals

    RoHs

  • Length

    Total Cable: 22' (6.7m)
    Active Antenna: 80" (203.2cm)

IDP 008 ADA wall plaque

Jump to...
  • Dimensions (L x W x H)

    10.37 x 6.25 x 0.125" (26.3 x 15.8 x 0.31cm)

RPK 005 Rack Panel Kit

Jump to...
  • Compatibility

    PPA T45, PPA T45NET, MOD 232

  • Approvals

    RoHs, IEC

  • Size

    Screws: 6-32 x 3/8" (Each)

About Williams Sound FM 558-12 Pro D

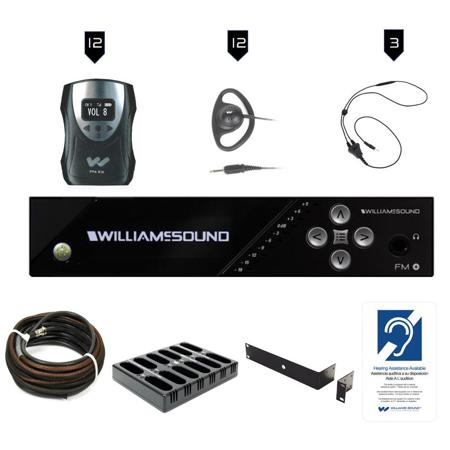

Let the FM 558-12 Pro D Plus Large Area Dual FM and Wi-Fi Assistive Listening System revolutionize the way you provide audio assistance in expansive venues. This advanced system is a seamless integration of high-quality FM transmission and cutting-edge Wi-Fi audio server technology, courtesy of the professional WaveCAST Wi-Fi audio server.

The centerpiece of this comprehensive package is the FM T55 D Transmitter, which boasts a professional digital audio (DSP) platform for exceptional audio clarity. With the flexibility to cater to both traditional FM receiver users and those preferring to use their own smartphones via the WaveCAST Listening App, this system ensures an inclusive and discreet listening experience for all attendees. The optional Dante interface elevates the system's capabilities, offering full audio networking solutions and compatibility with AES67 and SMPTE 2110 standards for seamless integration with other digital audio systems.

Listeners can effortlessly connect to the system using the intuitive WaveCAST app, available for both iOS and Android devices, to select their preferred channel and adjust volume levels. The app's user-friendly interface ensures a straightforward setup, although it is not applicable for FM broadcasts.

The package includes 12 PPA R38N Receivers, each featuring a high-resolution OLED screen for quick status checks and easy navigation through user settings. These receivers are digitally synthesized to deliver outstanding audio clarity and stability, with digital tuning and squelch, as well as a battery-saving sleep mode. The inclusion of both stereo and mono jacks enhances compatibility with a variety of earphones and headphones, ensuring a personalized listening experience.

For those with hearing aids, the NKL 001 Neckloop provides a reliable connection, utilizing a T-Coil to magnetically couple the audio output from the system. The neckloop includes a safety breakaway feature for added security in dynamic environments.

Additionally, the system comes with the EAR 022 Surround Earphone, designed to hang on the outside of the ear, delivering excellent sound quality and compatibility with all Williams Sound receivers and Pocketalkers.

To inform patrons of the available assistive listening options, the IDP 008 ADA Wall Plaque is a prominent, self-adhesive sign that clearly indicates the presence of a hearing assistance system, ideal for theaters, auditoriums, and similar settings.

Lastly, the RPK 005 Rack Panel Kit allows for a neat and professional installation, enabling the mounting of one transmitter or modulator within a standard IEC rack space.

The FM 558-12 Pro D Plus system is a durable and innovative solution for venues seeking to provide a high-quality, inclusive listening experience over large areas. With its dual FM and Wi-Fi capabilities, it stands out as a versatile choice for audio system integrators and venue operators alike.

Williams Sound FM 558-12 Pro D Features

  • FM T55 D Transmitter: System Features
  • First FM/Wi-Fi system with Dante control
  • Dante network interface based on the Audinate UXT Ultimo chipset
  • Professional audio inputs: 1/4"/XLR, phantom power, line level output jack
  • Audio presets hearing assistance, music, voice and custom
  • 16-bit DAC provides 48Khz sample rate
  • 10 segment LED bar graph
  • FM T55 D Transmitter: Wi-Fi Features
  • Single-channel audio streaming over Wi-Fi
  • True professional audio interface
  • Supports 45 users in unicast mode or 1500+ users in multicast mode
  • Works with free WaveCAST iOS/Android app
  • FM T55 D Transmitter: FM Features
  • Up to 1000 foot operating range
  • Adjustable RF power output
  • Professional DSP audio platform
  • Works with existing Williams Sound FM receivers
  • PPA R38N Receiver Features
  • OLED high-resolution screen - easy to read and provides a quick view of receiver status
  • All user settings are accessible via the on-screen menu - including all 17 wideband channels
  • Stylish new design
  • Now features stereo headphone jack
  • Rechargeable or non-rechargeable batteries
  • Digital Volume Controls
  • 4-step battery level indication
  • Display shows channel or frequency
  • Step/seek function allows user to increment channel manually, or seek to the next active channel
  • Sleep Mode/Auto-Off saves battery power
  • Soft Audio Turn-On
  • EAR 022 Surround Earphone Features
  • Hangs on outside of the ear
  • Excellent sound quality
  • 3.5mm mono plug
  • 1m cord
  • Monoaural
  • 32 Ohm
  • Recommended for FM receivers and select IR receivers
  • Designed for individuals with mild and low gain hearing loss
  • NKL 001 Neckloops Features
  • Integrated safety breakaway device
  • 18" Cord
  • Adult size
  • 3.5mm plug
  • Monoaural
  • 8-16 ohm
  • Recommended for PockeTalkers, FM receivers and select IR receivers
  • For individuals with moderate to severe hearing loss

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Crystal-clear audio: FM T55 D transmitter ensures exceptional sound quality for all listeners.
  • Dual FM & Wi-Fi: This assistive listening system supports both FM and Wi-Fi for versatile use.
  • Ideal for large venues: Perfect assistive listening in theaters, churches, and conference rooms.
  • Dante input included: Seamlessly integrate with existing Dante audio networks for streamlined setup.
  • 12 PPA R38N receivers: Provide assistive listening to multiple users with included receivers.
  • Easy to charge: CHG 3512 12-bay charger keeps your assistive listening system ready to use.

What's in the box:

  • FM T55 D Transmitter
  • 12x PPA R38N Receivers
  • 12x CLP 023 Belt Clips
  • 12x EAR 022 Surround Earphones
  • 3x NKL 001 Neckloops
  • CHG 3512 12-Bay Charger
  • Power Supply & Cord
  • 12x (Pairs) BAT 026-2 AA NiMH Rechargeable Batteries
  • ANT 005 Remote Coaxial Antenna
  • IDP 008 ADA Wall Plaque
  • 2x RPK 005 Rack Ears
  • 4x 6-32x3/8 " Screws
  • Williams Sound 2 Year Warranty on Parts and Labor (90 Day Warranty on Accessories and 1 Year Warranty on Neckloop/Charger & Lifetime Limited Warranty on Receiver)
