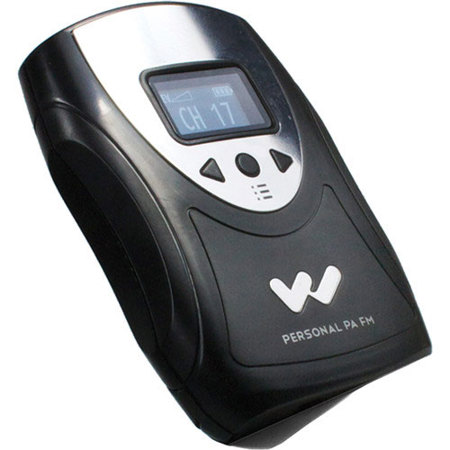

Williams Sound FM R38 PPA Selectview FM Reciever with EAR 022 Surround Earphone

The FM R38N is a multi-channel FM receiver with a high-resolution OLED screen. Offers a quick view of receiver status and immediate entry to all user settings. On-screen channel selection with easy access to 17 pre-set, wide-band frequencies (72-76 MHz). Compatible with all Williams Sound 72-76 MHz wide-band transmitters.

Digitally synthesized for exceptional audio clarity and stability. Digital tuning, digital squelch and battery saving sleep mode. New stereo jack paired with the mono jack adds compatibility with a variety of earphones/headphones. Rechargeable.

FM R38 Architectural and Engineering specifications
The receiver shall be encased in black, PC/ABS impact-resistant plastic with a hinged battery door. The receiver shall be a body-pack style and include a detachable belt-clip for hands-free operation. The receiver shall have a 3.5mm stereo jack to accommodate stereo or mono low impedance earphones, headphones and neckloops.

The receiver shall have a power button that is backlit indicating power is on. The receiver shall receive 17 preset wideband channels between 72-76MHz. Channel selection shall be made in the menu. The receiver shall have channel-lock capability.

The receiver shall have a slide switch inside the battery compartment to select disposable Alkaline or NiMH rechargeable battery operation. It shall have charger contacts on the bottom of the receiver for use with Williams Sound drop-in chargers CHG 3512 and CHG 3502. The recevier shall operate up to 50 hours with two disposable AA Alkaline batteries (BAT 001-2) and up to 32 hours with two AA NiMH rechargeable batteries (BAT 026-2).

The receiver shall provide a maximum output of 35mW at 16 Ohm with an earbud type earphone. The systems audio frequency response shall be 200Hz to 15kHz +/- 3dB and the signal to noise ratio shall be 65dB min. The receiver sensitivity shall be 2microV or better at 12dB Sinad with squelch defeated. The receiver shall accept up to +/-75kHz FM deviation and have a 75 microS de-emphasis time constant.

The receiver shall have FCC, Industry Canada approvals and be compliant with RoHS and WEEE regulations. The receiver shall be covered by a Lifetime PLUS Limited Warranty, 90 Days on most accessories.

This receiver model shall be the Williams Sound model PPA R38N.
