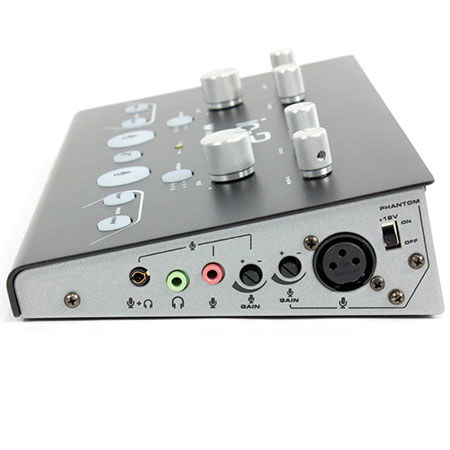

Williams Sound Interpreter Control Console
Williams Sound Interpreter Control Conso...: Picture 1 thumbnail
Williams Sound Interpreter Control Conso...: Picture 2 thumbnail
Williams Sound Interpreter Control Conso...: Picture 3 thumbnail
See all Williams Sound items

Williams Sound Interpreter Control Console for Simultaneous Interpretation of One or More Languages, 45Hz - 20kHz,

SKU: WSIC2 MFR: IC-2
Be the first to review this itemAsk a Question
$2,166.00
$2,404.00
Save: $238 (10%)
OR
$181/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Achieve crystal-clear audio with this interpreter control console for seamless communication.
  • Simultaneous interpretation is easy with this console's intuitive language selection features.
  • Enjoy flexible connectivity with XLR and 3.5mm mic inputs for various audio sources.
  • Easily manage audio levels with dedicated gain and tone controls for optimal sound.
  • Ensure clear communication with the console's visual indicators for output status.
  • Rely on the robust design of this Williams Sound console for dependable performance.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Williams Sound Interpreter Control Console Specifications

  • Floor In

    3-pin XLR female jack, balanced (or unbalanced) input with 24kOhms differential input impedance, max balanced input is +19dBu

  • IC-2 Bus In / Out

    CAT5 8p8c RJ45 female receptacle, distributes balanced line level Floor and Relay audio to another IC-2

  • XLR Microphone Inputs

    3-pin XLR female jack, balanced (or unbalanced) input. Switchable 12VDC simplex power. Variable gain of 58 dB, 2.4kOhms balanced input impedance, maximum balanced input is +19 dBu

  • 3.5mm Microphone Inputs

    Stereo 3.5 mm TRS phone jack, pink and stereo 3.5mm TRRS phone jack, black, unbalanced (r,s) for electret condenser mics, variable gain of 40dB. Bias is 3.7VDC through 2.7kOhms

  • 3.5mm TRRS Headphone Output

    3.5mm TRRS phone jack, Tip = Left, Ring 1 = Right, Ring 2 = GND, Sleeve = Mic. 40mW max power into 32 Ohms stereo headset.

  • 3.5mm Headphone Output

    3.5mm TRS phone jack, mono or stereo headphone, 8 Ohms minimum. 190mW max power into 32 Ohms stereo headset.

  • Norm Out, Relay Out

    3-pin XLR male jack, balanced output. Max output is +19dBu into 600 Ohms balanced load impedance.

  • Volume

    Left and Right rotary, controls headphone volume

  • Bass and Treble Tone

    Left and right rotary with center detent, controls headphone bass and treble tone levels.

  • Mute

    Push button, backlit red, mutes left and right mics while pressed.

  • Mic On

    Push button, backlit bright red, activates microphone. Right and left Mic On buttons are interlocked; mic can only be turned on if the other is off.

  • Floor Input, Relay Input

    Push buttons, backlit blue, select listening language group. Listening modes are either/or: turning one on disables the other.

  • Relay Output

    Push button, backlit yellow, selects microphone output language group: light on = Relay Out, light off = Norm Out.

  • Gain Adjust

    Rotary gain pots control level of microphone and Floor audio.

  • Phantom Power

    Slide switch enables 12VDC Simplex power to XLR microphone.

  • Norm Feedthrough

    Slide switch enables Floor feedthrough to Norm Out XLR jack.

  • Relay Feedthrough

    Slide switch enables Floor feedthrough to Relay Out XLR jack.

  • Ground Lift

    Slide switch disconnects Chassis and Audio Grounds internal to the console.

  • Peak Level Indicator

    Green LED on back panel indicates optimal audio output level on Norm Out XLR when blinking.

  • Relay Output in Use Indicator

    Yellow LED on front panel indicates when Relay Output is in use.

  • Frequency Response

    45Hz to 20kHz, +0/-3dB re: 1kHz with flat bass/treble

  • Distortion at 1kHz

    <0.5% THD at full power

  • Signal to Noise Ratio

    >82dB at 1kHz

  • Crosstalk Attenuation

    >63dB at 1kHz

  • Tone Controls

    Bass: +12dB Boost or -12dB Cut at 100Hz
    Treble: +12dB Boost or -12dB Cut at 10kHz

  • Approvals and Declarations

    CE, FCC, Industry Canada, RoHS, C-Tick, CB

  • Power

    External Power Supply, 18VDC Desktop Style Switching Inverter, 110-240VAC, 50-60Hz, 1A

  • Dimensions

    10 x 6.35 x 2.45" / 25.4 x 16.12 x 6.22cm

  • Weight

    3.4lbs / 1.54kg

About Williams Sound Interpreter Control Console

As a stand-alone unit, the Williams Sound Interpreter Control Console allows one or two interpreters to monitor floor or relay sources, activate microphone inputs and route the interpretation signal to one of two language groups. It is ideal for presentation-style conferences of up to 14 languages, where a floor and a single relay language are used. It can be used with Williams Sound FM, infrared and Digi-Wave transmitters for portable or fixed installations. It is designed to meet international standards for portable interpretation consoles.

Williams Sound Interpreter Control Console Features

  • New CAT 5 audio offers simplified cabling and easy cascading to support additional interpreters
  • Built-in distribution amplifier and mini mixer reduce the need for external equipment and greatly simplify setup
  • Floor language feed-through
  • Interlocking microphone and relay output functions
  • Enhanced flexibility, providing each interpreter with multiple microphone and headset options

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Achieve crystal-clear audio with this interpreter control console for seamless communication.
  • Simultaneous interpretation is easy with this console's intuitive language selection features.
  • Enjoy flexible connectivity with XLR and 3.5mm mic inputs for various audio sources.
  • Easily manage audio levels with dedicated gain and tone controls for optimal sound.
  • Ensure clear communication with the console's visual indicators for output status.
  • Rely on the robust design of this Williams Sound console for dependable performance.

What's in the box:

  • Williams Sound Interpreter Control Console
  • WCA 091 25' CAT 5 Cable
  • TFP 044 Power Supply
  • Williams Sound 5 Year Warranty
