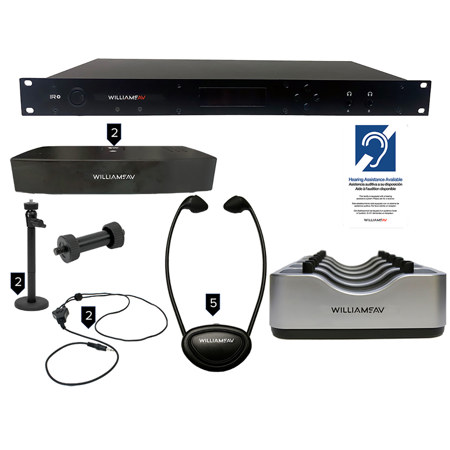

Williams Sound IR+ Secure System with IR M1 Control Center, 5x IR RX20 Receiver

- IR+ Control Center -
The IR+ Control Center offers a versatile dual audio solution, allowing venues to opt between audio transmission via Wi-Fi or Infrared. Its design includes a scalable distributed infrared emitter array architecture, enabling the utilization of up to four emitters. These emitters can be stacked for extensive room arrays or strategically distributed throughout the space to cater to various room layouts, including wings, balconies, or other concealed areas within the venue.

The IR+ Control Center offers both Wi-Fi and Infrared audio transmission options, with Infrared being particularly suitable for assistive audio in spacious environments or for secure transmission within enclosed spaces. By connecting the IR M1 to a Wi-Fi multicast router or an in-house network, users can stream audio over Wi-Fi to the Williams AV WaveCAST app (available in the iOS app store or Google Play store).

Featuring a distributed infrared emitter array architecture, the IR+ Control Center accommodates up to four emitters, which can be either stacked for large room arrays or strategically distributed throughout the venue to accommodate various room layouts, including wings, balconies, or other obscured locations.

The rack-mounted or remotely located IR M1 Control Center includes support for up to four IR emitters as standard. Each emitter connects back to the modulator via a CAT5e cable, delivering both audio and power necessary to operate the remote emitter. With each emitter covering an area of 18,000 sq. ft., ample coverage is ensured throughout the designated space.


- IR+ Emitter -
The IR E4 Emitter transmits the audio input from the IR+ (IR M1). Covering a span of 18,000 sq. ft (1,670 sq. meters), a single emitter can be combined with additional IR E4 emitters to provide extra coverage. Up to four emitters can be stacked together for large room arrays or distributed throughout the room to accommodate wings in room design, balconies or other obscured venue locations.

For the IR E4 Emitter to function, it must be connected to the IR M1 modulator. Up to 4 emitters can be connected to the IR M1 directly, and up to 16 emitters can be connected with the use of IR A4 arrays.


- Infrared Stereo Stethoscope Receiver -
The IR RX20 is a comfortable, stereo stethoscope-shaped infrared receiver. The headset works with all Williams Sound 2.3 or 2.8 MHz infrared systems.

Replacement earpads: EAR 089


- 5-Bay Charger for IR RX20 -
This multi-unit, drop-in style charger will conveniently charge and store up to 5 Williams AV IR RX20 under-the-chin style infrared receivers. Can daisy chain up to 3 chargers from one power supply. This 6-hour smart charger helps keep your products organized and batteries consistently charged.

Note: Charging specifications are based on Williams Sound, rechargeable internal LiPo battery, BAT 020.


- 18" Mono Neckloop -
This mono neck loop is designed to be worn around the neck, allowing an audio signal from a hearing loop to be transmitted directly to a user's hearing aid or cochlear implant equipped with a T-coil switch. It features a mono plug. For a stereo plug, see the NKL 001-S. 3.5 mm plug, mono, 8 - 16 Ohm. This neck loop is for users with moderate to severe hearing loss.

Safety Breakaway Feature
Integrated safety breakaway device. In the event the neck loop cord becomes entangled with an object in motion, the breakaway device will disconnect the neck loop from the user.

Features
• Integrated safety breakaway device
• 18" Cord
• Adult size
• 3.5mm plug
• monoaural
• 8-16 ohm
• Recommended for PockeTalkers, WF R1 receiver
• For individuals with moderate to severe hearing loss


- Linking Bar -
Linking bar used to connect two IR T2 emitters or two IR E4 emitters. 2-1/2" bar with 1/4"-20 threaded male connectors on both ends.


- Wall/Ceiling IR Mounting Bracket -
Omnidirectional wall or ceiling mounting bracket. Use with IR E4 and IR T2.


- ADA Wall Plaque -
Let your customers know that an ADA-compliant hearing assistance system is available to them with a Hearing Assistance Available sign.

Elevate visitor awareness of your hearing assistance offerings through the ADA Wall Plaque. Designed for your convenience, the included adhesive and stand offer versatile mounting choices. You can effortlessly hang it on a wall or window using the provided adhesive or use the provided stand to display it on a service counter or desk, ensuring clear communication of your ADA-compliant hearing assistance options available.
