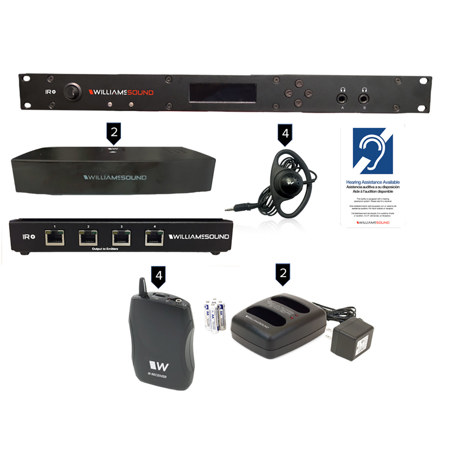

Williams Sound Large-Area Infrared Transmitter System with Dante and 2x Emitters

Commercial-grade, large-area WaveCAST enabled Dante infrared system with IR+ transmitter, 2 emitters and array.

- IR+ Control Center with Dante -
The IR+ Control Center provides audio over Wi-Fi and Infrared. Infrared is best used for assistive audio in large spaces, or for secured audio transmission within a room. Connect the IR M1 to a Wi-Fi multicast router or in-house network you can stream audio over Wi-Fi to the Williams AV WaveCAST app (available in the iOS app store or Google Play store).

The IR+ Control Center features a distributed infrared emitter array architecture allowing up to four emitters either stacked together for large room arrays or distributed throughout the room to accommodate wings in room design, balconies or other obscured venue locations.

The rack mounted or remotely located IR M1 Control Center comes standard with support for up to four IR emitters. Each emitter runs back to the modulator via a CAT5e cable, providing the audio and power needed to support the remote emitter. Each emitter has a coverage area of 18,000 sq. ft.

This version of the product features Dante.


- IR+ Emitter -
The IR E4 Emitter transmits the audio input from the IR+ (IR M1). Covering a span of 18,000 sq. ft (1,670 sq. meters), a single emitter can be combined with additional IR E4 emitters to provide extra coverage. Up to four emitters can be stacked together for large room arrays or distributed throughout the room to accommodate wings in room design, balconies or other obscured venue locations.

For the IR E4 Emitter to function, it must be connected to the IR M1 modulator. Up to 4 emitters can be connected to the IR M1 directly, and up to 16 emitters can be connected with the use of IR A4 arrays.


- IR A4 Array
The IR+ features a distributed IR emitter array architecture allowing up to four emitters either stacked together for large room arrays or distributed throughout the room to accommodate wings in room design, balconies or other obscured venue locations.

Up to 16 IR E4 emitters can be connected to an IR M1 modulator with the use of the IR A4 arrays. Each IR A4 array can have up to 4 IR E4's connected.

Note: The IR A4 is not a stand alone system and requires an IR M1 modulator and IR E4 emitter(s) to function.


- Four-Channel Infrared Receiver -
Featuring a sleek body-pack design, this four-channel selectable infrared receiver offers a convenient channel selector and user-friendly on/off volume control. It covers areas of up to 30,000 square feet (2,800 square meters) in single-channel mode and is compatible with Williams AV infrared transmitters operating within the 2.3/2.8/3.3/3.8 MHz bandwidth.

This infrared receiver, offering four-channel selection, is fully compatible with transmitters operating within the 2.3/2.8/3.3/3.8 MHz bandwidth. Enhanced by dual infrared detectors, it optimizes sensitivity and extends operational range. When utilized with a Williams AV Infrared Transmitter - IR M1 [D], IR T1, or IR T2, it covers up to 30,000 square feet (2,800 square meters) in single-channel mode. Its sleek, body-pack design features convenient channel selector and easy-to-use on/off volume control. The RX22-4N can be used with mono or stereo headphones, earphones or a neck loop (lanyard included).

Note: Headphones, earphones, or neck loop sold separately.

Features
• Use with earphones, headphones or neck loop (lanyard included)
• Uses AA alkaline or rechargeable batteries
• The receiver shall be a body-pack type with IR detector lens behind face of the unit.
• The unit shall have a lanyard for hands-free operation.
• The receiver shall have a rotary-type volume control.
• The receiver shall operate for 60 hours with two AA alkaline batteries and for 30 hours per charge with NiMH AA batteries.
• The receiver shall be charged without battery removal via charger contacts in the case. A drop-in charger accessory shall recharge the batteries in 16 hours when used with CHG 3512 charger.
• The receiver shall be housed in an impact resistant plastic case with a hinged battery door that does not separate from the receiver.
• The receiver shall receive 2.3 MHz, 2.8 MHz, 3.3 MHz or 3.8 MHz modulated IR signals with 50 microS de-emphasis.
The receiver shall have a 3.5 mm stereo phone jack and accommodate low-impedance mono or stereo earphones and headphones.
• The receiver shall accommodate neck loop telecoil couplers.
• The receiver shall provide 125 dB SSPL90 output with HED 021 headphone and 110 dB SSPL90 with EAR 013 earbud-type earphone.
• The system electrical frequency response shall be 25 Hz to 16 kHz, +1, -3 dB and the S/N ratio shall be 60 dB.
• The receiver shall have CE, FCC RoHS and WEEE approval.
• The receiver shall be the Williams AV model WIR RX22-4.


- 2-bay Charger kit -
3 Volt Dual Drop in Charger Kit with CHG 3502 and two (2) AA Bat 026-2 batteries.

For use with:
• PLR BP1 Loop receiver
• PPA R37 FM receiver
• PPA R38 FM receiver
• PPA T46 FM transmitter
• WIR RX22-4 Infrared receiver


- Surround Earphone -
Experience a secure fit with the Surround Earphone, designed to hang on the outside of the ear. Enjoy excellent sound quality with a 32 Ohm mono configuration. Ideal for mild hearing loss and low gain. Weighing just 0.04 lbs, this lightweight earphone ensures a comfortable and high-quality audio experience.

Features
• Hangs on outside of the ear
• Excellent sound quality
• 3.5mm mono plug
• 1m cord
• Monoaural
• 32 ohm
• Recommended for FM receivers and select IR receivers
• Designed for individuals with mild and low gain hearing loss


- ADA Wall Plaque -
Let your customers know that an ADA-compliant hearing assistance system is available to them with a Hearing Assistance Available sign.

Elevate visitor awareness of your hearing assistance offerings through the ADA Wall Plaque. Designed for your convenience, the included adhesive and stand offer versatile mounting choices. You can effortlessly hang it on a wall or window using the provided adhesive or use the provided stand to display it on a service counter or desk, ensuring clear communication of your ADA-compliant hearing assistance options available.
