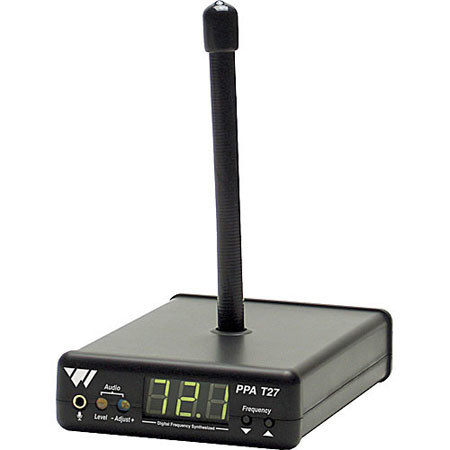

Williams Sound Personal PA Base-station Transmitter, 85Hz-14kHz Frequency Response

SKU: WSPPAT27 MFR: PPA T27
Earn VIP Reward Points

Key Features

  • Enhance auditory experiences with this Personal PA Base-station Transmitter.
  • Crystal-clear audio: Frequency response from 85Hz-14kHz for optimal sound.
  • Broadcast up to 1000ft! Perfect assistive listening for large venues.
  • Versatile inputs: Connect mics or line-level devices to the transmitter.
  • Ensure clear communication using this reliable Williams Sound transmitter.
  • Easy setup: External switches allow for quick channel selection.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Williams Sound Personal PA Base-station Transmitter Specifications

  • Power

    105-130 VAC, 50-60 Hz, 3.2 W at 120 VAC

  • Operating Frequencies

    72-76 MHz: 72.1 (CH A), 72.2 (CH K), 72.3 (CH B), 72.4 (CH N), 72.5 (CH C), 72.6 (CH O), 72.7 (CH D), 72.8 (CH P), 72.9 (CH E), 74.7 (CH I), 75.3 (CH J), 75.4 (CH R), 75.5 (CH F), 75.6 (CH S), 75.7 (CH G), 75.8 (CH T), 75.9 (CH H)

  • Frequency Selector

    External switches, 17 channels (lockable)

  • RF Field Strength

    Does not exceed 80mV/m at 3m

  • Nominal Range

    Up to 1000'/ 304.8m with standard ANT 021 rubber duckie" antenna or optional ANT 005 coaxial antenna.

  • Modulation

    FM, 75 kHz deviation (wide band) max.

  • Stability

    +/- .005% over 0-50½C

  • Pre-Emphasis

    75 uS

  • Frequency Response

    85Hz-14kHz +/-3dB

  • Distortion

    1% Max. THD

  • Signal to Noise Ratio

    65 dB with R35 Receiver

  • Microphone Input

    3.5mm mini phone jack, supplies +DC for electret mics

  • Mic Input Level

    1 10 mV, nominal

  • Line-Level Input

    RCA Jack, Hi Z, unbal.

  • Line Input Level

    .1 1 Vrms, nominal

  • Input Attenuator

    Pot, screwdriver-adjustable

  • Antenna Outputs

    Thread mount for ANT 021 rubber duckie" antenna or ANT 025 telescoping antenna RF connector for ANT 024 dipole or ANT 005 coaxial antenna

  • Approvals

    FCC, Industry Canada, RoHS, WEEE

  • Dimensions (W x L x H)

    4.1 x 6.1 x 1.3" / 104.14 x 154.94 x 33.02mm

  • Weight

    7.8oz / 221.13g

  • UPC Code

    707976050793

About Williams Sound Personal PA Base-station Transmitter

Are you in search of a high-quality, reliable personal PA base-station transmitter Look no further than the Williams Sound Personal PA Base-station Transmitter. This top-tier device is designed to wirelessly broadcast a speaker's voice, music program, or any audio service up to an impressive range of 1000 feet, ensuring your message reaches your audience, no matter the size.

The Williams Sound Personal PA Base-station Transmitter operates on the 72-76 MHz frequency, making it compatible with optional R37, R35-8, or any FM receiver. This ensures a broad range of devices can pick up the broadcast, providing flexibility and convenience for your audience.

One of the standout features of this transmitter is its easy-to-use interface. The speaker can effortlessly connect a microphone with a 3.5mm plug into the unit to broadcast their voice. This makes it an ideal choice for public speaking events, lectures, or any situation where clear, audible communication is key.

Moreover, the Williams Sound Personal PA Base-station Transmitter can also connect to a sound system through a line-level (RCA) jack. This feature allows it to broadcast music or other audio services, making it a versatile addition to your audio equipment collection.

With a frequency response of 85Hz-14kHz, this transmitter ensures a clear, crisp sound quality that will enhance any audio experience. Whether you're broadcasting a speech, music, or any other audio service, the Williams Sound Personal PA Base-station Transmitter is the reliable, high-performance solution you need.

Williams Sound Personal PA Base-station Transmitter Features

  • Simple set-up and operation
  • High-contrast LED display and push-button frequency selection
  • Up to 1000' operating range
  • Flexible 3.5mm mic and RCA line-level inputs

Warranty Information

This product has a limited lifetime warranty.

Product Documents

User Manual

Key Features

  • Enhance auditory experiences with this Personal PA Base-station Transmitter.
  • Crystal-clear audio: Frequency response from 85Hz-14kHz for optimal sound.
  • Broadcast up to 1000ft! Perfect assistive listening for large venues.
  • Versatile inputs: Connect mics or line-level devices to the transmitter.
  • Ensure clear communication using this reliable Williams Sound transmitter.
  • Easy setup: External switches allow for quick channel selection.

What's in the box:

  • Williams Sound Personal PA Base-station Transmitter
  • ANT 021 Antenna
  • WCA 013 Audio Cable
  • TFP 036 Power Supply
  • Williams Sound Lifetime Limited and 90 Day Accessories Warranty
