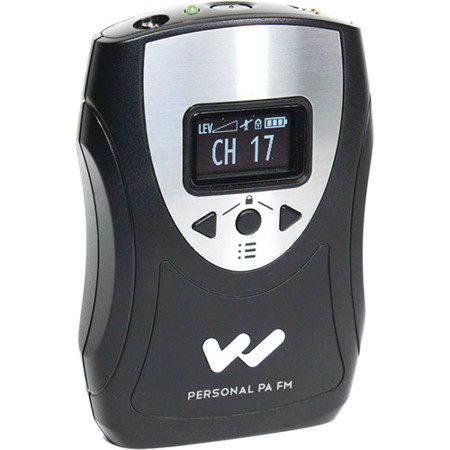

Williams Sound Personal PA Body-pack Transmitter, 180Hz to 13kHz Frequency Response

SKU: WSPPAT46 MFR: PPA T46
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with the Williams Sound transmitter, enhancing sound quality.
  • Enjoy versatile connectivity; use the body-pack transmitter with various audio sources.
  • Benefit from exceptional battery life, providing up to 30 hours of continuous use.
  • The Personal PA system is incredibly easy to use, perfect for any user to set up quickly.
  • Portable design makes this body-pack transmitter ideal for on-the-go assistive listening.
  • Affordable audio solution offering top-tier performance without breaking the bank.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Williams Sound Personal PA Body-pack Transmitter Specifications

  • Enclosure Material

    Shatter-resistant PC/ABS plastic with textured scratch-resistant aluminum faceplate

  • Battery Type options

    2x AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 75 mA nominal current drain, up to 30 hours battery life, or
    2x AA 1.5 V NiMH rechargeable batteries (BAT 026-2), 75 mA nominal current drain, up to 20 hours battery life per charge, recharges in 14 16 hours, uses CHG 3502 or CHG 3512 Charger

  • Operating Frequencies

    Selectable, 17 channels, 72.1 75.9 MHz*. Switchable 8 or 17 Channel Mode. (8-channel mode setting corresponds with PPA R35-8 receiver channels)

  • Stability

    +/- .005%, frequency synthesized, crystal reference, PLL

  • Modulation

    Wide-band FM, 75 kHz peak, 75 ½S pre-emphasis

  • RF Output

    80 mV/m at 3 m (max. allowed by FCC rules)

  • Frequency Response

    180 Hz to 13 kHz, +/- 3 dB at 1% max. THD

  • Signal-to-Noise Ratio

    65 dB (typical) transmitted

  • Transmit Antenna

    Integral with microphone cord

  • Microphone

    Electret type, 3.5 mm mono plug

  • External Display

    OLED for status and menu information.
    Status: Ch/Freq, Mic Audio Level, Auxiliary Input Audio Level, Battery Status, Mic Mute, Channel Lock, Dual-Preset mode.
    Menu: Ch/Freq display mode select, Volume, Aux Input, Compression,
    17 or 8-channel mode, screen time out, screen brightness, restore default settings

  • External Controls

    Momentary push button: push and hold 3 seconds for power On/Off, push and release for microphone mute On/Off.
    Left, Right and Menu buttons for accessing and changing transmitter settings. Battery type switch (Alkaline or NiMH) located behind the battery compartment door.

  • External Indicators

    Power LED - Green, flashes when battery is low

  • Mic Input

    3.5 mm mono jack with electret mic bias, adjustable gain with
    25 dB range

  • Aux Input

    2.5 mm stereo jack, adjustable gain with 60 dB range

  • Audio Compression

    1:1 (off) or 2:1 (on) selectable in menu

  • Dimensions (L x W x D)

    4.1 x 2.8 x 1.72" / 104.14 x 71.12 x 43.69mm

  • Weight

    2.6oz / 73.71g without batteries

  • UPC Code

    192223055384

2 Accessories for Williams Sound Personal PA Body-pack Transmitter, 180Hz to 13kHz Frequency Response

  • All Accessories (2)
  • Batteries & Chargers (2)

About Williams Sound Personal PA Body-pack Transmitter

Take your audio broadcasting to the next level with the Williams Sound Personal PA Body-pack Transmitter. This high-performance device is designed to transmit a speaker's voice or audio program with crystal-clear quality, making it an essential tool for classrooms, tour groups, business meetings, and more.

Operating on one of 17 available channels within the 72-76 MHz frequency range, this transmitter is compatible with PPA R35-8 or PPA R37 receivers, as well as the R1600 speaker. Its flexible microphone and auxiliary input jacks offer versatility, while the push-button on/off/mute controls provide ease of use.

What sets the T46 apart is its dual-channel mode. This feature allows the user to switch effortlessly between two different transmitting channels, each with its own unique set up parameters. This is displayed on a user-friendly OLED screen, which also shows the current operating status and menu information.

The T46 is not only powerful but also efficient. It operates for up to 30 hours on two AA Alkaline batteries, and up to 20 hours with two Ni-MH batteries. Plus, it offers recharge capability when used with Williams Sound drop-in chargers.

Despite its robust features, the T46 remains lightweight and portable. It can operate at a range of up to 150 feet (46m) from the listening audience, ensuring that your message is heard clearly, no matter the size of the room.

In summary, the Williams Sound Personal PA Body-pack Transmitter is a versatile, efficient, and high-quality solution for all your audio broadcasting needs.

Williams Sound Personal PA Body-pack Transmitter Features

  • Sleek, ergonomic design
  • 17-channel selectable, 72-76 MHz
  • Digitally synthesized frequencies
  • 1.25" OLED interface displays master & aux volume level, mic mute, settings lock and battery level
  • Easy-to-use menu-access controls Microphone and auxiliary levels, 8- or 17-channel mode selection, Current frequency/channel number, compression (1:1 or 2:1) and display settings
  • MIC input accepts electret mic with 3.5 mm mono plug
  • AUX audio input accepts 2.5 mm stereo plug (i.e for MP3 or CD player)
  • Range of up to 150' (with PPA R37 receiver)

Warranty Information

This product has a limited lifetime warranty.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with the Williams Sound transmitter, enhancing sound quality.
  • Enjoy versatile connectivity; use the body-pack transmitter with various audio sources.
  • Benefit from exceptional battery life, providing up to 30 hours of continuous use.
  • The Personal PA system is incredibly easy to use, perfect for any user to set up quickly.
  • Portable design makes this body-pack transmitter ideal for on-the-go assistive listening.
  • Affordable audio solution offering top-tier performance without breaking the bank.

What's in the box:

  • Williams Sound Personal PA Body-pack Transmitter
  • BAT 001-2 2x AA Batteries
  • CLP 023 Belt Clip
  • WCA 087 Auxiliary Input Cable
  • Williams Sound Lifetime Limited and 90 Day Accessories Warranty
