Williams Sound TGS PRO 737 Personal PA FM Tour Guide System

SKU: WSTGSPRO737 MFR: TGS PRO 737
Earn VIP Reward Points

Key Features

  • Crystal-clear audio: Excellent sound quality ensures every participant hears clearly.
  • Portable PA system: Ideal for guided tours, presentations, & assistive listening.
  • Easy to use: Intuitive design for quick setup and seamless operation, enhancing user experience.
  • Long battery life: Enjoy extended use with reliable battery performance for all-day events.
  • FM tour guide system: Perfect for noisy environments, ensuring clear communication always.
  • Personal PA system: Includes headset microphone for hands-free, comfortable presentations.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Jonathan W : Does this include earphones/headsets for all receivers?ANDREW R : What's in the box: Williams Sound PPA T46 Transmitter 10x Select PPA R37 Receivers MIC 100 Rear-wear Headset Microphone 11x BAT 001-2 (Two AA Batteries) CCS 030 S Carry Case Belt Clips Williams Sound

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Williams Sound TGS PRO 737 Personal PA FM Tour Guide System Specifications

  • BAT 001-2: Battery chemistry

    Alkaline

  • BAT 001-2: Battery Volt

    1.2V

  • MIC 100: Plug

    3.5mm mono

  • MIC 100: Cord

    39"

  • MIC 100: Phantom Powered

    No

  • MIC 100: Pick-Up Pattern

    Uni-direct

  • MIC 100: Replacement Windscreen

    WND 009

  • PPA R37: Battery Type

    (2) AA Alkaline or 2 x AA NiMH

  • PPA R37: Battery Life

    Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs
    (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs

  • PPA R37: Current Consumption

    52mA nominal

  • PPA R37: Temperature Range

    0 to 50C

  • PPA R37: Channels

    17, accessed via seek button in battery compartment

  • PPA R37: Operating Freq.

    72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz

  • PPA R37: Intermediate Freq.

    75 kHz

  • PPA R37: FM Deviation

    75 kHz

  • PPA R37: De-Emphasis

    75 micro S

  • PPA R37: LED Indicator

    Power: Green; Low Battery: Flashes Green

  • PPA R37: AFC Range

    +/- 120 kHz

  • PPA R37: Sensitivity

    2 micro V at 12 dB Sinad with squelch defeated

  • PPA R37: Input Overload

    100 mV

  • PPA R37: Frequency Response

    200 15 kHz

  • PPA R37: Modulation

    FM, +/- 75 kHz peak deviation

  • PPA R37: Signal-to-Noise Ratio

    65 dB min at 100 uV

  • PPA R37: Receive Antenna

    Integral with earphone/headphone cord

  • PPA R37: Audio Output

    35 mW max, peak into 16 Ohms

  • PPA R37: Output Connector

    3.5 mm stereo/mono phone jack

  • PPA R37: Earphone

    Earbud-type with foam cushion, 3.5 mm plug, 32 ?

  • PPA R37: Auto Shut-off

    Enters sleep mode after approx 6 mins of no RF signal

  • PPA R37: Approvals

    FCC, Industry Canada, RoHS, WEEE

  • PPA T46: Enclosure Material

    Shatter-resistant PC/ABS plastic with textured scratch-resistant aluminum faceplate

  • PPA T46: Battery Type options

    Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 75 mA nominal current drain, up to 30 hours battery life or Two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026-2), 75 mA nominal current drain, up to 20 hours battery life per charge, recharges in 14 16 hours, uses CHG 3502 or CHG 3512 Charger

  • PPA T46: Operating Frequencies

    Selectable, 17 channels, 72.1 75.9 MHz Switchable 8 or 17 Channel Mode. (8-channel mode setting corresponds with PPA R35-8 receiver channels)

  • PPA T46: Stability

    +/- .005%, frequency synthesized, crystal reference, PLL

  • PPA T46: Modulation

    Wide-band FM, 75 kHz peak, 75 micro S pre-emphasis

  • PPA T46: RF Output

    80 mV/m at 3 m (max. allowed by FCC rules)

  • PPA T46: Frequency Response

    180 Hz to 13 kHz, +/- 3 dB at 1% max. THD

  • PPA T46: Signal-to-Noise Ratio

    65 dB (typical) transmitted

  • PPA T46: Transmit Antenna

    Integral with microphone cord

  • PPA T46: Microphone

    Electret type, 3.5 mm mono plug

  • PPA T46: External Display

    OLED for status and menu information
    Status: Ch/Freq, Mic Audio Level, Auxiliary Input Audio Level, Battery Status, Mic Mute, Channel Lock, Dual-Preset mode.
    Menu: Ch/Freq display mode select, Volume, Aux Input, Compression, 17 or 8-channel mode, screen time out, screen brightness, restore default settings

  • PPA T46: External Controls

    Momentary push button: push and hold 3 seconds for power On/Off, push and release for microphone mute On/Off
    Left, Right and Menu buttons for accessing and changing transmitter settings. Battery type switch (Alkaline or NiMH) located behind the battery compartment door

  • PPA T46: External Indicators

    Power LED - Green, flashes when battery is low

  • PPA T46: Mic Input

    3.5mm mono jack with electret mic bias, adjustable gain with 25 dB range

  • PPA T46: Aux Input

    2.5mm stereo jack, adjustable gain with 60 dB range

  • PPA T46: Audio Compression

    1:1 (off) or 2:1 (on) selectable in menu

  • Dimensions

    PPA R37: 4.1 x 2.85 x 1.38" (104.14 x 72.39 x 35.05mm)
    PPA T46 (L x W x D): 4.1 x 2.8 x 1.1" (104.14 x 71.12 x 27.94mm)

  • Weight

    MIC 100: 1.5 oz (42g)
    PPA R37: 4.6 oz (130.40g) with batteries, 2.6 oz (73.70g) without batteries
    PPA T46: 2.6 oz (73.70g), no batteries

  • UPC Code

    632709971468

About Williams Sound TGS PRO 737 Personal PA FM Tour Guide System

Under the banner of Williams Sound, the TGS PRO 737 Personal PA FM Tour Guide System stands as a testament to professional-grade, high-quality audio equipment. This durable, portable system is specifically engineered to facilitate seamless communication between tour guides and participants, particularly those with hearing difficulties.

Designed with a lightweight, single-channel structure, this comprehensive system allows participants to directly tune into the guide's commentary and independently control their volume levels. This feature ensures an inclusive, personalized listening experience for all users.

The TGS PRO 737 system boasts superior audio quality, ensuring clear and crisp sound transmission even in bustling environments like museums, galleries, and other public spaces. Its user-friendly controls make operation effortless, eliminating the need for complex installations and saving both time and money.

This system also comes with a convenient carrying case, making it easy to transport and store, further enhancing its portability.

In compliance with the Americans with Disabilities Act (ADA), the TGS PRO 737 Personal PA FM Tour Guide System from Williams Sound is not just a product, but a commitment to accessibility and inclusivity in public spaces.

Williams Sound TGS PRO 737 Personal PA FM Tour Guide System Features

  • Now featuring the sleek, NEW PPA T46 FM body-pack transmitter
  • Allows full freedom of movement for tour group
  • Easy set-up, simple operation
  • Single-channel, field-tunable receiver
  • Auxiliary input broadcast any audio source

Warranty Information

This product has a limited lifetime warranty.

Product Documents

User Manual

Key Features

  • Crystal-clear audio: Excellent sound quality ensures every participant hears clearly.
  • Portable PA system: Ideal for guided tours, presentations, & assistive listening.
  • Easy to use: Intuitive design for quick setup and seamless operation, enhancing user experience.
  • Long battery life: Enjoy extended use with reliable battery performance for all-day events.
  • FM tour guide system: Perfect for noisy environments, ensuring clear communication always.
  • Personal PA system: Includes headset microphone for hands-free, comfortable presentations.

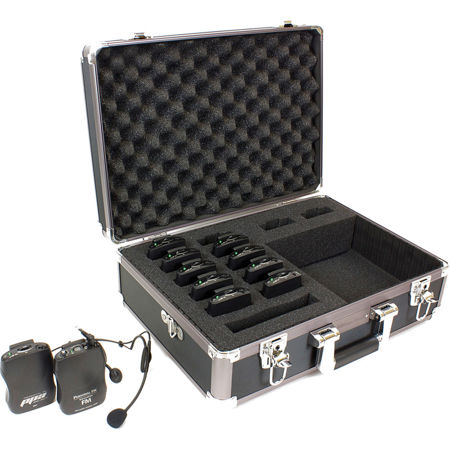

What's in the box:

  • Williams Sound PPA T46 Transmitter
  • 10x Select PPA R37 Receivers
  • MIC 100 Rear-wear Headset Microphone
  • 11x BAT 001-2 (Two AA Batteries)
  • CCS 030 S Carry Case
  • Belt Clips
  • Williams Sound Lifetime PLUS Limited Warranty
