Williams Sound Personal PA FM Tour Guide System, Includes PPA T46 Transmitter, 10x Receivers, MIC 100 Headset Mic, 11x BAT 001-2 AA Alkaline Batteries, Carry Case

SKU: WSTGSPRO738 MFR: TGS PRO 738
Earn VIP Reward Points

Key Features

  • Crystal-clear audio: FM tour guide system ensures everyone hears, boosting the experience.
  • Perfect for multilingual tours: Personal PA system supports clear communication for all guests.
  • Lightweight & durable: Tour guide system is built for daily use, ensuring lasting performance.
  • Simple setup: Wireless audio system gets you started quickly, no tech expertise needed.
  • Long battery life: Enjoy extended use with our FM transmitter and receiver audio solution.
  • Portable carry case: Keep your personal PA system organized and ready for any event or tour.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Williams Sound Personal PA FM Tour Guide System Specifications

  • BAT 001-2: Battery Chemistry

    Alkaline

  • BAT 001-2: Battery volt

    1.2V

  • MIC 100: Plug

    3.5mm mono

  • MIC 100: Cord

    39"

  • MIC 100: Phantom Powered

    No

  • MIC 100: Pick-Up Pattern

    Uni-direct

  • MIC 100: Replacement Windscreen

    WND 009

  • PPA R38N: Battery Type

    (2) AA Alkaline or (2) AA NiMH Rechargeable

  • PPA R38N: Battery Life

    (2) AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs.
    (2) AA rechargeable NiMH batteries (BAT 026-2), 1500mAh, approx. 32 hrs

  • PPA R38N: Current Consumption

    52mA nominal

  • PPA R38N: Operating Temp. Range

    32½ 122½F (0½ to 50½C)

  • PPA R38N: Channels

    17 Wideband, accessed via menu

  • PPA R38N: Operating Frequencies

    72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*

  • PPA R38N: FM?Deviation

    75 kHz

  • PPA R38N: De-Emphasis

    75 ½S

  • PPA R38N: Display Screen

    1" OLED

  • PPA R38N: Power?Indication

    Power button, backlit green
    Good battery strength - glows solid. Low battery - flashes

  • PPA R38N: Sensitivity

    2 ½V at 12 dB Sinad with squelch defeated

  • PPA R38N: Input Overload

    100 mV

  • PPA R38N: Frequency Response

    200 Hz 15 kHz, +/-3dB

  • PPA R38N: Modulation

    FM, +/- 75 kHz peak deviation

  • PPA R38N: Signal-to-Noise Ratio

    Minimum 65 dB at 1.0V

  • PPA R38N: Receive Antenna

    Integral with earphone/headphone cord

  • PPA R38N: Audio Output

    35 mW max at 16 Ohms

  • PPA R38N: Headphone Connector

    3.5 mm stereo jack, mono output for stereo or mono earphones/headphones

  • PPA R38N: Supplied Earphone

    Stereo,earbud-type with foam cushion, 3.5 mm plug, 32 Ohms

  • PPA R38N: Power Save Mode

    Enters sleep mode after approximately 3 minutes of no RF signal

  • PPA R38N: Approvals

    FCC, Industry Canada, RoHS, WEEE

  • PPA T46: Enclosure Material

    Shatter-resistant PC/ABS plastic with textured scratch-resistant aluminum faceplate

  • PPA T46: Battery Type options

    Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 75 mA nominal current drain, up to 30 hours battery life or Two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026-2), 75 mA nominal current drain, up to 20 hours battery life per charge, recharges in 14 16 hours, uses CHG 3502 or CHG 3512 Charger

  • PPA T46: Stability

    +/- .005%, frequency synthesized, crystal reference, PLL

  • PPA T46: Modulation

    Wide-band FM, 75 kHz peak, 75 ½S pre-emphasis

  • PPA T46: RF Output

    80 mV/m at 3 m (max. allowed by FCC rules)

  • PPA T46: Frequency Response

    180 Hz to 13 kHz, +/- 3 dB at 1% max. THD

  • PPA T46: Signal-to-Noise Ratio

    65 dB (typical) transmitted

  • PPA T46: Transmit Antenna

    Integral with microphone cord

  • PPA T46: Microphone

    Electret type, 3.5 mm mono plug

  • PPA T46: External Display

    OLED for status and menu information
    Status: Ch/Freq, Mic Audio Level, Auxiliary Input Audio Level, Battery Status, Mic Mute, Channel Lock, Dual-Preset mode
    Menu: Ch/Freq display mode select, Volume, Aux Input, Compression, 17 or 8-channel mode, screen time out, screen brightness, restore default settings

  • PPA T46: External Controls

    Momentary push button: push and hold 3 seconds for power On/Off, push and release for microphone mute On/Off
    Left, Right and Menu buttons for accessing and changing transmitter settings. Battery type switch (Alkaline or NiMH) located behind the battery compartment door

  • PPA T46: External Indicators

    Power LED - Green, flashes when battery is low

  • PPA T46: Mic Input

    3.5 mm mono jack with electret mic bias, adjustable gain with 25dB range

  • PPA T46: Aux Input

    2.5 mm stereo jack, adjustable gain with 60 dB range

  • PPA T46: Audio Compression

    1:1 (off) or 2:1 (on) selectable in menu

  • Dimensions (L x W x D)

    PPA T46: 4.1 x 2.8 x 1.1" / 10.41 x 7.11 x 2.79cm
    PPA R38N: 4.1 x 2.85 x 1.38" / 10.41 x 7.23 x 3.50cm

  • Weight

    PPA T46: 2.6oz /73.70g no batteries
    PPA R38N: 4.6oz (130.40g) with batteries
    2.6oz (73.70g) without batteries
    MIC 100: 42g (1.48oz)

About Williams Sound Personal PA FM Tour Guide System

For those seeking an optimal audio experience during guided tours, the Williams Sound Personal PA FM Tour Guide System is an excellent choice. This lightweight, single-channel system is specifically designed to assist individuals with hearing difficulties, ensuring they don't miss a single word from the tour guide.

This comprehensive package includes a PPA T46 Transmitter, 10 receivers, a MIC 100 Headset Mic, and 11 BAT 001-2 AA Alkaline Batteries. The system allows tour participants to control their own volume, providing a personalized listening experience.

The Williams Sound Personal PA FM Tour Guide System utilizes wireless technology for effortless communication between the guide and participants. This eliminates the need for complex installations, saving both time and money. The system's user-friendly controls and superior audio quality make it a standout in the field of personal audio systems.

Moreover, this system is designed in compliance with the Americans with Disabilities Act (ADA) accessibility requirements, making it an inclusive solution for all tour participants. Whether you're a tour guide looking to enhance your guests' experience or a participant wanting to ensure you capture every detail, the Williams Sound Personal PA FM Tour Guide System is a reliable and efficient choice.

Williams Sound Personal PA FM Tour Guide System Features

  • Now featuring the sleek, NEW PPA T46 FM body-pack transmitter
  • Allows full freedom of movement for tour group
  • Easy set-up, simple operation
  • Single-channel, field-tunable receiver
  • Auxiliary input broadcast any audio source

Warranty Information

This product has a limited lifetime warranty.

Product Documents

User Manual

Key Features

  • Crystal-clear audio: FM tour guide system ensures everyone hears, boosting the experience.
  • Perfect for multilingual tours: Personal PA system supports clear communication for all guests.
  • Lightweight & durable: Tour guide system is built for daily use, ensuring lasting performance.
  • Simple setup: Wireless audio system gets you started quickly, no tech expertise needed.
  • Long battery life: Enjoy extended use with our FM transmitter and receiver audio solution.
  • Portable carry case: Keep your personal PA system organized and ready for any event or tour.

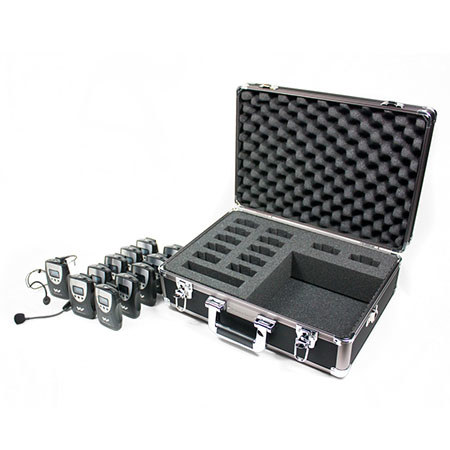

What's in the box:

  • Williams Sound PPA T46 Transmitter
  • 10x PPA R38N Receivers

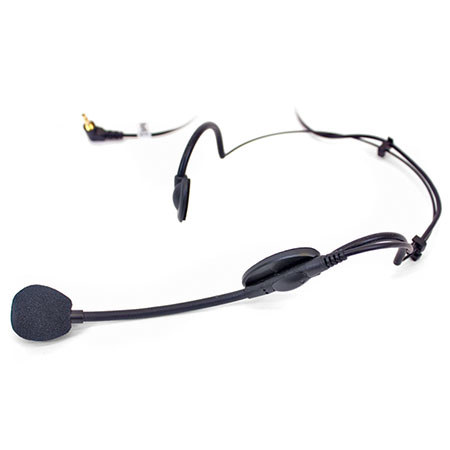

  • MIC 100 Rear-Wear Headset Microphone
  • 11x BAT 001-2 AA Alkaline Batteries
  • CCS 030 S Carry Case
  • Belt Clip
  • Williams Sound Lifetime PLUS Limited Warranty
