Williams Sound WaveCAST WF SY5 PRO-24 Wi-Fi Assistive Listening System with 24x WF R1N Receivers

SKU: WSWFSY5P24

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Williams Sound WF SY5 PRO-24 Specifications

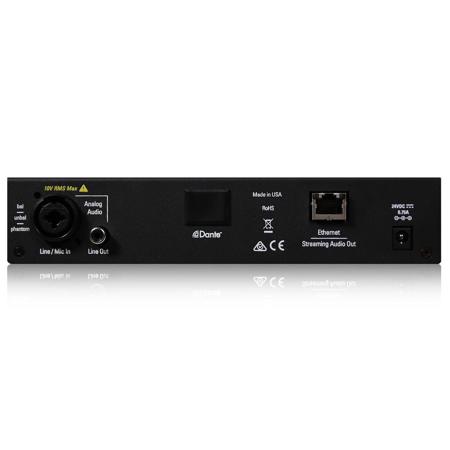

WF T5 Transmitter

WF T5 Transmitter

Jump to...
  • Color

    Black/Silver with silver legends on the front, white legends on the back

  • Rack Mount

    Standard 19" Rack, one EIA rack space high, 1/2 space wide 1-2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits

  • Power Supply

    Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector

  • Power ON Indicator

    Push On/Push Off latching power button, backlit green indicates power ON, backlight off indicates power OFF, fading from bright to dark indicates Sleep Mode.

  • Temperature Range

    Operating: 32 to 104 Degree F (0 to 40 Degree C)
    Storage: -4 to 158 Degree F (-20 to 70 Degree C)

  • Audio Processor Functions

    DSP based; Compression: 1:1, 1.5:1 or 2:1
    High-pass and Low-pass Filter Frequency control

  • Frequency Response

    31 - 16000 Hz, +/-3 dB (Music Audio Preset)

  • Signal-to-Noise Ratio

    Greater than or equal to 74 dB Transmitted RF

  • Total Harmonic Distortion

    Less than 0.25% @ 1 kHz (RF output)

  • Common Mode Rejection

    Greater than 57 dB @ 1 kHz, Mic or Line

  • User Interface

    Front panel buttons or hosted web interface

  • Audio Inputs

    (1x) Combination 3-pin XLR, 1/4" (TRS) jack for Mic or Line Level Analog Audio, Balanced or Unbalanced Line Level, or balanced or unbalanced microphone with Selectable Phantom Power

  • Audio Input Gain Adjust

    In menu, adjustable to 0 to -50 dB, in 1dB steps

  • Phantom Power

    14.4 VDC applied through 2.2 k Ohm resistors to analog combo jack: Pin 2 and Pin 3 on XLR jack, or tip and ring on 1/4" TRS jack

  • Audio Level Indicators

    10-LED array that reads -18 to +9 dB at 3 dB intervals. 7 Green, 2 Amber, and 1 red LED. Green LEDs indicate normal operating audio level peaks, Amber LEDS indicate close to overload peaks, Red LED indicates overload peaks

  • Headphone Output

    1/4" TRS stereo jack, mono signal, 15.7 mW, maximum in 33 Ohm (level adjustable in menu 0 to -40 dB in 2 dB steps)

  • Line Output

    RCA jack (black), -10 dBV (.32 VRMS); Output impedance 100 Ohm

  • Microphone (at Audio Input Gain = 0dB)

    Nominal (1st Amber LED): -55 dBV (1.7 mV RMS)
    Overload Warning (Displayed on Screen): -15 dBV (180 mV RMS)

  • Line (at Audio Input Gain = 0dB)

    Nominal (1st Amber LED): -25 dBV (55 mV RMS)
    Overload Warning (Displayed on Screen): +16 dBV (6.3 V RMS)

  • Ethernet

    RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address

  • Operating Systems

    Apple iOS 9.1 or newer; Android 6.0 or newer; Blackberry and windows not supported

  • Approvals

    FCC, RoHS3, WEEE, Industry Canada, CE, PSE, RCM, CB Scheme

  • Dimensions (W x D x H)

    8.45 x 8.25 x 1.72" (21.5 x 21 x 4.4cm)

  • Weight

    3 lb (1.36kg)

WF R1N Receiver

Jump to...
  • Display

    2.0" (5cm) full color OLED Touchscreen

  • Receiver Jack

    3.5mm standard mono jack

  • Battery Life

    6 hours

  • Charge Time

    About an hour

  • Approvals

    FCC, RoHS3, WEEE, Industry Canada, CE, RCM, Telec

  • Dimensions (W x D x H)

    1.89 x 0.5 x 4.46" (48 x 12.7 x 113.3cm)

CCS 062 BK Receiver Skins

Jump to...
  • Color

    Black

  • Material

    Silicone

  • Compatibility

    WaveCAST Receiver

CHG 408 WF 8-Slot Charger

Jump to...
  • Color

    Black and dark transparent plastic dividers

  • Power Input

    18-20V DC

  • Power Output

    5V DC/1A for black USB ports, 5V DC/2.4A for red USB ports

  • Unit Capacity

    8 Units

  • Indicators

    One LED for indicating power to charger; no individual indicators.

  • Compatible Units

    CHG 408 WF: WF R1

  • Approvals

    WEEE, RoHS, CE, FCC, IC, Japan

  • Dimensions (L x W x H)

    8.3 x 5.5 x 1.2" (210 x 140 x 29.5mm)

  • Weight

    0.9 lb (0.4kg)

EAR 022 Surround Earphone

Jump to...
  • Style

    Around-ear speaker

  • Plug

    3.5mm mono

  • Cord

    39" (99.06cm)

  • Driver Size

    23mm

  • Nominal Impedance

    32 Ohm

  • Frequency Response

    20 - 20kHz

  • Max Power Input

    30 mW

  • Sensitivity

    118 dB @ 1kHz

  • Weight

    0.5 oz (15g)

NIK 001 S Neckloops

Jump to...
  • Color

    Black

  • Connector

    NKL 001-S: 3.5mm stereo plug with ring disconnected

  • Impedance

    8-16 Ohms

  • Input Power

    500 mW max

  • Magnetic Field Strength

    25 mW input at 1000 Hz produces 1.7 A/m 6" above the center of loop
    85microW input produces 0.1 A/m (IEC Standard)

  • Approvals

    RoHS, WEEE

  • Cord Length

    18.5" (46.9cm)

  • Weight

    1.5 oz (42.5g)

RPK 005 Rack Panel Kit

Jump to...
  • Compatibility

    PPA T45, PPA T45NET, MOD 232

  • Approvals

    RoHs, IEC

  • Size

    Screws: 6-32 x 3/8" (Each)

IDP 008 ADA Wall Plaque

Jump to...
  • Dimensions (L x W x H)

    10.37 x 6.25 x 0.13" (26.3 x 15.8 x 0.31cm)

About Williams Sound WF SY5 PRO-24

Become an advocate for inclusivity and exceptional audio quality with the WaveCAST WF SY5 PRO-24 Wi-Fi Assistive Listening System, featuring 24x WF R1N Receivers. This advanced system is engineered by Williams Sound, a leader in professional audio solutions, ensuring a high-quality listening experience for individuals with hearing impairments.

The core of this comprehensive system is the WF T5 Transmitter, a state-of-the-art Wi-Fi platform tailored for pro-audio applications where pristine sound is paramount. Utilizing a hardware-based DSP audio system architecture, the WaveCAST allows for meticulous system optimization, catering to the specific needs of the audio stream. Whether it's enhancing hearing assistance, delivering high-fidelity music, or ensuring clear speech intelligibility, this system adapts with precision. Custom presets can be created for various performance scenarios, further demonstrating its versatility.

Professional audio inputs, including 1/4" XLR connectors with phantom power and a line level output jack, are integral to the WaveCAST's design. The system's DSP capabilities extend to AGC, limiters, high and low pass filters, and adjustable range compressor control, all contributing to its superior sound management. The 16-bit DAC with a 48Khz sample rate ensures a smooth digital stream, reducing any potential digital harshness.

Supporting both unicast and multicast network configurations, the WaveCAST can accommodate up to 45 users in unicast mode or over 1500 users in multicast mode. Up to four WaveCAST systems can seamlessly integrate into the same Wi-Fi network, providing multiple listening channels. Configuration is user-friendly, with settings adjustable via the front panel interface or the hosted web interface, and a remote programming guide is available upon request.

The WaveCAST app, compatible with both iOS and Android devices, offers an intuitive user interface for listeners to easily select their channel and volume level once connected to the Wi-Fi network.

For those who prefer not to use their personal device, the WF R1N Receiver comes pre-installed with the WaveCAST App, serving as a dedicated assistive listening receiver. The CHG 408 WF 8-Slot Charger ensures that your receivers are always ready for use, providing a convenient charging solution for up to eight devices simultaneously.

Listeners will appreciate the EAR 022 Surround Earphone, which delivers excellent sound quality and comfortably hangs on the outside of the ear. Compatible with all Williams Sound receivers and Pocketalkers, these earphones have been rigorously tested for quality, reliability, and compatibility.

For users with T-Coil-equipped hearing aids, the NKL 001 S Neckloop offers a magnetic audio coupling solution, working seamlessly with any audio device with an 8-16 Ohm audio output through a 3.5mm jack. The integrated safety breakaway feature ensures user safety by disconnecting the neckloop if it becomes entangled.

The RPK 005 Rack Panel Kit allows for a neat and professional installation, mounting one transmitter or modulator in a standard IEC rack space. Lastly, the IDP 008 ADA Wall Plaque informs patrons of the availability of hearing assistance, making it an essential addition to venues such as theaters and auditoriums.

The WaveCAST WF SY5 PRO-24 Wi-Fi Assistive Listening System is the epitome of innovative and professional audio equipment, designed to deliver a high-quality, inclusive listening experience.

Williams Sound WF SY5 PRO-24 Features

  • WF T5 Transmitter Features
  • Audio presets hearing assistance, music, voice and custom
  • Professional audio DSP architecture
  • Supports 45 users in unicast mode or 1500+ users in multicast mode, dependent upon network configuration
  • Single-channel audio streaming over Wi-Fi
  • Works with free WaveCast iOS or Android apps
  • Professional audio inputs: combo 3-pin XLR/1/4", phantom power, line level output jack
  • 16-bit DAC provides 48Khz sample rate
  • EAR 022 Surround Earphones Features
  • Hangs on outside of the ear
  • Excellent sound quality
  • 3.5mm mono plug
  • 1m cord
  • Monoaural
  • 32 ohm
  • Recommended for FM receivers and select IR receivers
  • Designed for individuals with mild and low gain hearing loss
  • NKL 001 S Neckloops Features
  • Integrated safety breakaway device
  • 18" Cord
  • Adult size
  • 3.5 mm stereo plug
  • monoaural
  • 8-16 ohm
  • Recommended for PockeTalker 2.0, FM receivers and select IR receivers
  • For individuals with moderate to severe hearing loss

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • High-quality WF T5 Transmitter with hardware-based DSP audio system for optimal sound delivery
  • Supports both unicast and multicast network configurations, accommodating up to 1500+ users
  • Includes EAR 022 Surround Earphone and NKL 001 S Neckloop for versatile listening options

What's in the box:

  • WF T5 Transmitter
  • 1/4 " XLR Connector
  • Phantom Power
  • 24x WF R1N Receivers
  • 24x Power Charging Block & USB Cable
  • 24x CCS 062 BK Receiver Skins (Black)
  • 3x CHG 408 WF 8-Slot Charger
  • 24x Micro-B USB Cables
  • 3x Power Supply
  • 24x EAR 022 Surround Earphone
  • 6x NKL 001 S Neckloops
  • 2x RPK 005 Rack Ears
  • 4x 6-32x3/8 " Screws
  • IDP 008 ADA Wall Plaque
  • Williams Sound 2 Year Warranty on Parts and Labor (90 Day Warranty on Accessories and 1 Year Warranty on Neckloops/Charger)
