Williams Sound WaveCAST WF SY5 PRO-3 D Wi-Fi Assistive Listening System with Dante Input and 3x WF R1N Receivers

Black/Silver with silver legends on the front, white legends on the back

Standard 19" Rack, one EIA rack space high, 1/2 space wide 1-2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits

Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector

Push On/Push Off latching power button, backlit green indicates power ON, backlight off indicates power OFF, fading from bright to dark indicates Sleep Mode.

Operating: 32 to 104 Degree F (0 to 40 Degree C)
Storage: -4 to 158 Degree F (-20 to 70 Degree C)

DSP based; Compression: 1:1, 1.5:1 or 2:1
High-pass and Low-pass Filter Frequency control

31 - 16000 Hz, +/-3 dB (Music Audio Preset)

Greater than or equal to 74 dB Transmitted RF

Less than 0.25% @ 1 kHz (RF output)

Greater than 57 dB @ 1 kHz, Mic or Line

Front panel buttons or hosted web interface

Yes

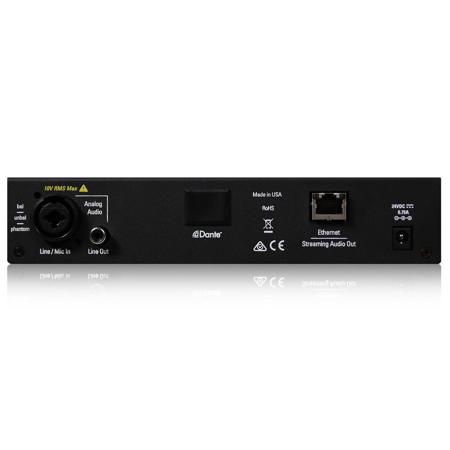

(1x) Combination 3-pin XLR, 1/4" (TRS) jack for Mic or Line Level Analog Audio, Balanced or Unbalanced Line Level, or balanced or unbalanced microphone with Selectable Phantom Power

In menu, adjustable to 0 to -50 dB, in 1dB steps

14.4 VDC applied through 2.2 k Ohm resistors to analog combo jack: Pin 2 and Pin 3 on XLR jack, or tip and ring on 1/4" TRS jack

10-LED array that reads -18 to +9 dB at 3 dB intervals. 7 Green, 2 Amber, and 1 red LED. Green LEDs indicate normal operating audio level peaks, Amber LEDS indicate close to overload peaks, Red LED indicates overload peaks

1/4" TRS stereo jack, mono signal, 15.7 mW, maximum in 33 Ohm (level adjustable in menu 0 to -40 dB in 2 dB steps)

RCA jack (black), -10 dBV (.32 VRMS); Output impedance 100 Ohm

Nominal (1st Amber LED): -55 dBV (1.7 mV RMS)
Overload Warning (Displayed on Screen): -15 dBV (180 mV RMS)

Nominal (1st Amber LED): -25 dBV (55 mV RMS)
Overload Warning (Displayed on Screen): +16 dBV (6.3 V RMS)

RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address

Apple iOS 9.1 or newer; Android 6.0 or newer; Blackberry and windows not supported

FCC, RoHS3, WEEE, Industry Canada, CE, PSE, RCM, CB Scheme

8.45 x 8.25 x 1.72" (21.5 x 21 x 4.4cm)

3 lb (1.36kg)

2.0" (5cm) full color OLED Touchscreen

3.5mm standard mono jack

6 hours

About an hour

FCC, RoHS3, WEEE, Industry Canada, CE, RCM, Telec

1.89 x 0.5 x 4.46" (48 x 12.7 x 113.3cm)

Black

Silicone

WaveCAST Receiver

Black and clear plastic

AC 100-220V 50/60Hz 0.5A (max)

DC 5.0V 1.1A per bay (22W max)

4 Units

Individual Charging Indicators: Blue LEDs light up dividing clear panels

CHG 404 WF: WF R1

WEEE, RoHS, CE, FCC, IC

6 x 5 x 3" (15.6 x 12.7 x 7.85cm)

0.7 lb (0.3kg)

Stereo Headphones

3.5mm stereo

39" (99.06cm)

30mm

16 Ohm

20 - 20kHz

100 mW

108 dB @ 1kHz

HED 023 (one pair)

RoHS

2.1 oz (60g)

Black

NKL 001-S: 3.5mm stereo plug with ring disconnected

8-16 Ohms

500 mW max

25 mW input at 1000 Hz produces 1.7 A/m 6" above the center of loop
85microW input produces 0.1 A/m (IEC Standard)

RoHS, WEEE

18.5" (46.9cm)

1.5 oz (42.5g)

PPA T45, PPA T45NET, MOD 232

RoHs, IEC

Screws: 6-32 x 3/8" (Each)

10.37 x 6.25 x 0.13" (26.3 x 15.8 x 0.31cm)
