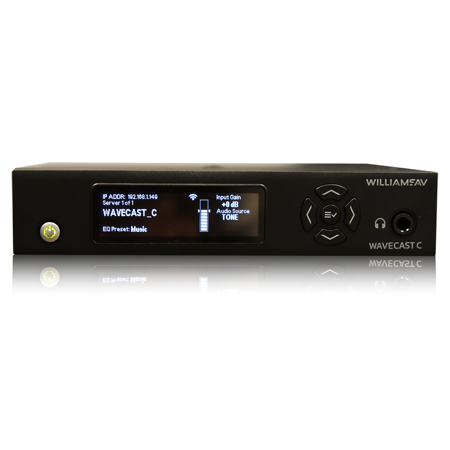

Williams Sound WaveCAST C Wi-Fi Audio System Transmitter

SKU: WSWFT5C00 MFR: WF T5C-00
$1,233.50
Earn VIP Reward Points

Key Features

  • Experience superior audio clarity with the WaveCAST Wi-Fi audio system transmitter.
  • Use the WaveCAST system for assistive listening, ensuring everyone hears clearly.
  • Enjoy versatile audio input options including XLR and TRS for balanced sound.
  • Easily manage audio with DSP-based compression and preset audio configurations.
  • Integrate seamlessly with standard 19" racks using optional rack mount kits.
  • Control your audio via a user-friendly OLED display or hosted web interface.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Williams Sound WaveCAST C Specifications

  • Audio Inputs

    (1x) Combination 3-pin XLR, 1/4" (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power

  • Audio Processor Functions

    DSP based; Compression: 1:1, 1.5:1 or 2:1; High-pass and Low-pass Filter Frequency control, Music, Voice, and Hearing Assistance Audio Presets

  • Frequency Response

    31-16000 Hz, +/-3 dB (re: 1 kHz) ("Music" Audio Preset)

  • Signal-to-Noise Ratio

    64 dB (typical) Transmitted RF @ 1kHz

  • Total Harmonic Distortion

    Less than 0.25% @ 1 kHz (RF output)

  • Common Mode Rejection

    Greater than 57 dB @ 1 kHz, Mic or Line mode

  • Audio Input Gain Adjust

    Adjustable from +24dB to -60 dB, in 1dB steps from front screen or web page

  • Phantom Power

    14.4 VDC applied through 2.2 kOhms resistors to analog combo jack: Pin 2 and Pin 3 on XLR jack, or tip and ring on 1/4" TRS jack

  • Audio Level Display

    Front screen bar graph display, each segment representing 3dB. It ranges from -18 (1 segment lit) to +12dB (10 segments lit). Over-range warning is indicated by 'OLVD' and flashing empty bar.

  • Headphone Output

    1/4" TRS stereo jack, mono signal, 7.8 mW total power with 33 Ohm.

  • Input Level (Bal or Unbal)

    Nominal (@7th Segment Lit)
    Overload Warning (Displayed on Screen)
    Absolute Max. Rating
    (at Audio Input Gain = 0dB)

  • Microphone

    -45 dBV (5.6 mV RMS)
    -20 dBV (100 mV RMS)
    +20 dBV (10.0 V RMS)

  • Line

    -8.4 dBV (380 mV RMS)
    +16 dBV (6.5 V RMS)
    +20 dBV (10.0 V RMS)

  • Approvals

    FCC, RoHS3, WEEE, Industry Canada, CE, UK CA, RCM

  • Color

    Black

  • Rack Mount

    Standard 19" Rack, one EIA rack space high, 1/2 space wide
    1-2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits

  • Power Supply

    Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector

  • Power ON Indicator

    Push On/Push Off latching power button with backlight. Green backlight indicates power ON, backlight off indicates power OFF

  • Temperature Range

    Operating: +32 Degree F to +122 Degree F (0 Degree C to 50 Degree C); Storage: -4 Degree F to +158 Degree F (-20 Degree C to 70 Degree C)

  • User Interface

    3.12" High Resolution OLED display with selections via buttons
    Hosted Web page
    Telnet commands over ethernet (see our WaveCAST and FM+ Programmers Guide" for available commands and protocol)

  • Ethernet

    RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address. RJ-45 jack used for web page and streaming audio out. An external Router/DHCP Server is required to stream audio to receiving devices.

  • Dimensions (W x D x H)

    8.45 x 8.25 x 1.72" (21.5 x 21 x 4.4cm)

  • Weight

    Transmitter: 3.2 lbs (1.45 kg)

  • UPC Code

    707976002105

About Williams Sound WaveCAST C

Enhance your professional audio setup with the WaveCAST C Wi-Fi Audio System Transmitter, a state-of-the-art Wi-Fi audio platform specifically engineered for high-fidelity sound in pro-audio applications. This advanced system seamlessly streams superior quality audio to personal devices via an app or to a Wi-Fi receiver, making it an ideal solution for assistive listening and a multitude of other audio requirements.

The WaveCAST C is designed to integrate effortlessly with third-party room systems, providing AV professionals with the convenience of controlling the system using Telicon commands via Ethernet. Built on a robust, hardware-based DSP audio system architecture, the WaveCAST C allows for system optimization to deliver the highest quality audio experience tailored to the specific audio stream being delivered.

Whether you need hearing assistance optimized for hearing loss, music fine-tuned for high-fidelity playback, or voice settings for maximum speech intelligibility, the WaveCAST C has you covered. It also allows for custom pre-sets to be established for specific performance applications.

The WaveCAST C comes equipped with professional audio inputs including 1/4" XLR connectors, phantom power, and a line level output jack. It also features multi-stage gain control inputs and DSP features such as AGC, limiters, high and low pass filter, and adjustable range compressor control. The 16-bit DAC offers a 48Khz sample rate, ensuring a smooth digital stream and minimizing digital harshness.

Supporting both unicast and multicast network configurations, the WaveCAST C is incredibly versatile. Connect up to four WaveCAST C systems to the same Wi-Fi network to provide multiple listening channels, supporting 45 users in unicast mode or over 1500 users in multicast mode.

The WaveCAST C offers flexibility with most settings adjustable via the front panel interface or the hosted web interface. A remote programming guide is also available upon request. The new WaveCAST app, available on iOS and Android, provides an easy-to-use, intuitive user interface. Listeners can easily select their channel and volume level once their personal device is connected to the Wi-Fi network. Experience the future of professional audio with the WaveCAST C Wi-Fi Audio System Transmitter.

Williams Sound WaveCAST C Features

  • Designed for pro-audio applications where high-quality sound is required
  • Allows AV professionals to control and monitor the WaveCAST C using Telnet commands via Ethernet
  • Audio is streamed to an app on personal devices or a Wi-Fi receiver
  • Built on a hardware-based DSP audio system architecture
  • Professional audio inputs on the WaveCAST C include 1/4" XLR connectors, phantom power, and a line level output jack
  • 16-bit DAC provides a 48Khz sample rate for a smooth digital stream and minimizes digital harshness

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience superior audio clarity with the WaveCAST Wi-Fi audio system transmitter.
  • Use the WaveCAST system for assistive listening, ensuring everyone hears clearly.
  • Enjoy versatile audio input options including XLR and TRS for balanced sound.
  • Easily manage audio with DSP-based compression and preset audio configurations.
  • Integrate seamlessly with standard 19" racks using optional rack mount kits.
  • Control your audio via a user-friendly OLED display or hosted web interface.

What's in the box:

  • Williams Sound WaveCAST C Wi-Fi Audio System Transmitter
  • Power Supply
  • Williams Sound 2 Year Limited Warranty
