Williams Sound 2-Channel Infrared Transmitter, Black
See all Williams Sound items

Williams Sound 2-Channel Infrared Transmitter, 80-15000Hz Frequency Response, Black

SKU: WSWIRTX90
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Williams Sound 2-Channel Infrared Transmitter, Black Specifications

  • Power Supply

    Wall Transformer, 24 VAC, 50-60Hz, 35 VA, 3-pin MOLEX Connector
    TFP 010, UL/CSA

  • Power Cable

    NEC Class 2 wiring, two-conductor, 18 ga., 200' (61m) max. length

  • Modulation

    FM Wideband, +50kHz deviation max., 50uS pre-emphasis

  • Carrier Frequency

    Channel A: Selectable, 2.3/2.8 MHz,
    Channel B: Selectable, 3.3/3.8 MHz

  • Emitter IR Power

    3.5 watts

  • Coverage Area

    28,000 square feet (2600 square meter) in single channel mode when using the RX22-4 Receiver
    18,000 sq. ft (1700 square meter) in two channel mode when using the RX22-4 Receiver
    11,000 sq. ft (1000 square meter) in four channel mode when using the RX22-4 Receiver
    3,500 sq. ft (325 square meter) in single channel mode when using the RX15-2 Receiver
    3,063 sq. ft (285 square meter) in single channel mode when using the RX18 Receiver

  • Signal-to-Noise Ratio

    >75 dB, +3dB

  • Frequency Response

    80 to 15,000 Hz, electrical response

  • Total Harmonic Distortion

    Less than .2%, electrical response at 1kHz

  • Compression

    Music preset 1:1, Voice preset 1.5:1, Hearing Assist preset 2:1

  • Auto Carrier Shut-Off:

    20 minute timer shuts off carrier when no audio is present

  • WIR TX90 Bottom View: Power Indicator

    Red LED

  • TX90 Bottom: Audio Volume Level Controls

    CHA and CHB Input Level, press to select, 28 dB adjustable range

  • WIR TX90 Bottom View: Audio Indicators

    CHA and CHB Audio Level, yellow LED, flash

  • WIR TX90 Bottom View: Carrier LEDs

    2 green LED carrier "on" indicators

  • WIR TX90 Bottom View: Phones Output

    3.5mm TRS headphone jack. CH A tip, CH B ring on jack, 32 Ohms headphone (min)

  • WIR TX90 Bottom View: Application Preset

    Music, Voice, Hearing Assist. Frequency response; Music: Flat; Voice: Mid-range boost; Hearing Assist: High frequency boost

  • WIR TX90 Bottom View: Tone Control

    Press to select, 21 dB adjustable range (1 kHz between low boost/hi-cut and low cut/hi boost).

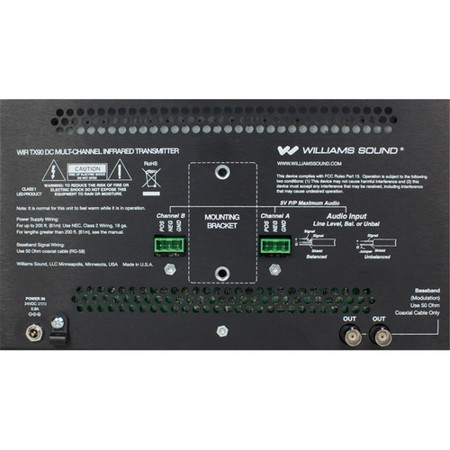

  • WIR TX90 Back Panel: Power Input

    3-Pin Molex, 24 VAC, 50-60 Hz, 35 VA

  • TX90 Back Panel: Audio Input Connector

    CH A and CH B, 3 wire Phoenix

  • WIR TX90 Back Panel: Input Level

    Balanced or unbalanced, 316 mVRMS (-10dBV) nominal, 5.7k input impedance; max input (over volume range) -21 to +7 dBV.

  • WIR TX90 Back Panel: Baseband Output

    BNC, 50 O, for use with TX9 only

  • WIR TX90 Back Panel: Baseband Cable

    RG 58 Coax, BNC connectors, maximum 1000' (300m) length

  • TX90 Back Panel: Operating Requirements

    0-50 deg. C (+32 to 122 deg. F)) ambient temperature, non-condensing, non-corrosive atmosphere

  • WIR TX90 Back Panel: Mounting Kits

    Wall or Ceiling Mount: BKT 024 Omnidirectional mount;

  • Approvals

    CE, FCC, RoHS, WEEE

  • Compatible Receivers

    WIR RX22-4 Four-Channel Receiver
    WIR RX15-2 Two-Channel Receiver
    WIR RX18 Two-Channel Receiver

  • Dimensions (W x H x D)

    11.25 x 6.25 x 2.125" / 285.75 x 158.75 x 53.98mm

  • Weight

    1.8lbs / 0.816kg

About Williams Sound 2-Channel Infrared Transmitter, Black

The Williams Sound 2-Channel Infrared Black transmitter combines modulator and emitter technology into a single operating unit, which reduces operating costs, eliminates the need for rack space and eases set-up. The WIR TX90 features application pre-set controls for music, voice or hearing assistance applications no guesswork required for audio configuration. Everything you need for installation is in the box.

Williams Sound 2-Channel Infrared Transmitter, Black Features

  • Resistant to high-efficiency lighting interference
  • Compatible with Dolby, DTS and Doremi systems for hearing assistance and audio description in cinema
  • Line inputs

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Line inputs
  • Resistant to high-efficiency lighting interference

What's in the box:

  • Williams Sound 2-Channel Infrared Transmitter
  • TFP 010 Power Supply
  • BKT 024 Wall/Ceiling Mount
  • WCA 079 50' Power Cable
  • IDP 008 ADA Wall Plaque
  • Williams Sound 5 Year and 90 Day Accessories Warranty
