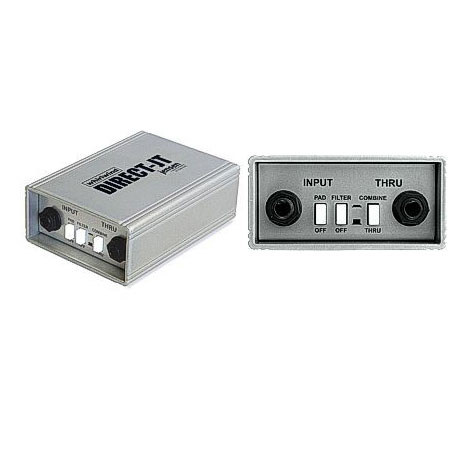

Whirlwind DIRECT-JT Single Channel Passive Direct Box with Jensen Transformer
See all Whirlwind items

Whirlwind DIRECT-JT Single Channel Passive Direct Box with Jensen Transformer, 20Hz-20kHz Frequency Response, XLR/1/4" TS Phone Thru Output Connectors

SKU: WWDIRECTJT

This item is no longer available.

Recommended Alternatives

Whirlwind : Picture 1 regular

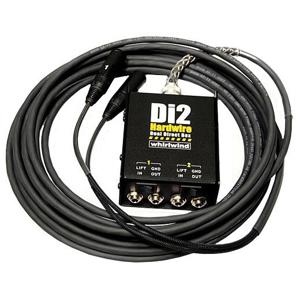

Whirlwind 15' 2-Ch Di2 Dual Direct Box with Snakeskin XLR Fanout Cable, Black
$264.00
Whirlwind : Picture 1 regular

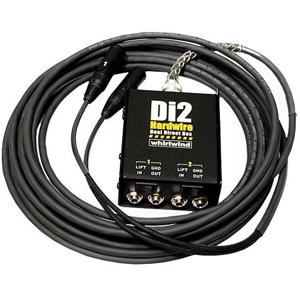

Whirlwind 50' 2-Ch Di2 Dual Direct Box with Snakeskin XLR Fanout Cable, Black
$324.00
Whirlwind Director: Picture 1 regular

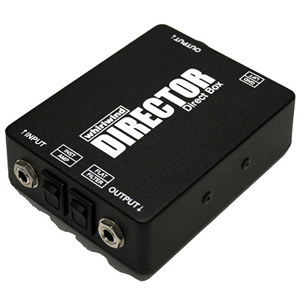

Whirlwind Director PA Direct Box with 30dB Pad & High Cut Filter Switches
$114.00
Whirlwind DIRECT2: Picture 1 regular

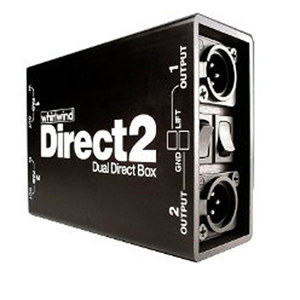

Whirlwind DIRECT2 Passive 2-Channel Direct Box
$196.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Whirlwind DIRECT-JT Specifications

  • Impedance Ratio

    200k:1.5k

  • Frequency Response

    20Hz-20kHz re:1kHz, -0.08dB / -0.07dB

  • THD at 20Hz

    0.00036

  • THD at 1kHz

    Less than 0.001%

  • -3dB BW

    100kHz

  • Power

    Passive

  • Input Connections

    1/4" TS phone

  • Output Connectors

    XLR
    1/4" TS phone Thru

  • UPC Code

    692465015677

About Whirlwind DIRECT-JT

The Whirlwind DIRECT-JT Single Channel Passive Direct Box features the Jensen JT-DB-EPC transformer - world renown for wide frequency response and superior noise rejection characteristics. Extruded aluminum housing with recessed switches provides expected Whirlwind durability.

Whirlwind DIRECT-JT Features

  • 1/4" input jacks can be used as "INPUT / THRU" or they may be combined with the "COMBINE" pushbutton to safely sum stereo feeds to a single channel
  • "FILTER / OFF" button engages a high cut filter to reduce amplifier noise
  • "PAD" button engages 15dB pad for reducing hot input levels
  • "REV / Diameter" button reverses the polarity from pin 2 hot to pin 3 hot for correcting non-standard equipment and mis-wired cables or for creating special effects
  • "LIFT / GND" button to help eliminate hum and buzz

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 1/4 input jacks
  • FILTER / OFF button reduces amplifier noise
  • PAD button engages 15dB pad
  • REV / Diameter button reverses polarity from pin 2 hot to pin 3 hot
  • LIFT/GND button eliminates hum & buzz
  • LIFT / GND button to help eliminate hum and buzz

What's in the box:

  • Whirlwind DIRECT-JT Single Channel Passive Direct Box with Jensen Transformer
  • Whirlwind 3 Year Warranty
