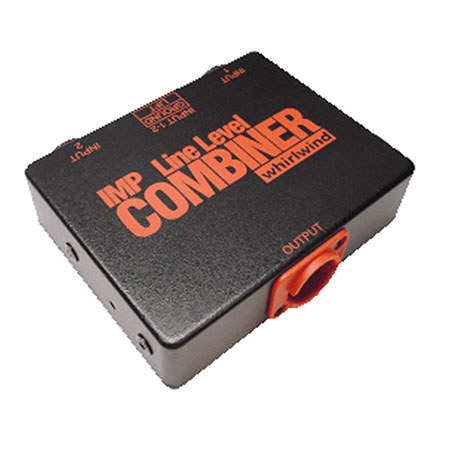

Whirlwind IMP Line Combiner, Female XLRs IN, Male XLR Out, 20-20kHz Frequency Response

SKU: WWIMCOML MFR: IMCOML
$171.00
Earn VIP Reward Points

Key Features

  • Combine audio signals flawlessly with this Whirlwind line combiner for pro sound.
  • Achieve superior audio clarity; THD+N is less than 0.025% at 1kHz for pristine sound.
  • Enjoy wide frequency response (+/- .3 dBm 20-20 kHz) for balanced audio output.
  • Ensure signal isolation; >42dBm between inputs minimizes crosstalk in your audio.
  • Compact size (4.25 x 4.87 x 1.37") integrates easily into any audio setup.
  • Durable build quality ensures reliable performance for all your audio needs.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Hiram S : Great for mixing in mono!

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Whirlwind IMP Line Combiner, Female XLRs IN, Male XLR Out Specifications

  • Combiner Type

    Passive

  • Frequency response

    +/- .3 dBm 20-20 kHz

  • Total Harmonic Distortion + noise

    <. 025% at 1kHz

  • Isolation between inputs

    >42dBm

  • Insertion loss

    -.6dBm 50 Ohms source impedance
    -2.1dBm 200 Ohms source impedance

  • Output level

    -3.8dBm with both channels at 0dBm sine wave input, in phase

  • Maximum input level

    +28dBm

  • Input Impedance

    600 Ohms

  • Output impedance

    <100 Ohms

  • Dimensions

    4.25 x 4.87 x 1.37" / 10.79 x 12.36 x 3.47cm

  • Weight

    1lbs / 0.45kg

  • UPC Code

    69246500128

About Whirlwind IMP Line Combiner, Female XLRs IN, Male XLR Out

Experience the seamless integration of audio signals with the Whirlwind IMP Line Combiner, a high-quality, durable, and reliable device designed for professional audio applications. This innovative product is expertly engineered to combine two XLR cables into one, making it an essential tool for situations where multiple microphones or audio devices need to be connected to a single input source, such as a mixer or soundboard.

The Whirlwind IMP Line Combiner is not just a simple signal combiner; it's a solution for creating a mono mix from a stereo source while keeping the original stereo signals isolated. This makes it an ideal choice for feeding a DAT player or CD into a mono system or a single channel on a board.

What sets this product apart is its ability to handle a wide frequency response range of 20-20kHz, making it versatile and suitable for various audio applications. Moreover, it compensates for the 6dB of gain that typically occurs when two in-phase signals are combined, ensuring optimal audio quality and performance.

The device also features a user-friendly ground-lift switch that breaks the shield connection between the inputs, providing an extra layer of control for your audio setup. With its innovative design and high-quality construction, the Whirlwind IMP Line Combiner is a reliable choice for professionals seeking to enhance their audio experience.

Whirlwind IMP Line Combiner, Female XLRs IN, Male XLR Out Features

  • High-quality Whirlwind IMP Line Combiner for professional audio applications
  • Combines two XLR cables into one for efficient audio signal integration
  • Wide frequency response range of 20-20kHz for versatile use
  • Compensates for 6dB gain when combining in-phase signals, ensuring optimal audio quality
  • Ideal for creating a mono mix from a stereo source while keeping original signals isolated
  • Features a user-friendly ground-lift switch for enhanced audio control

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Combine audio signals flawlessly with this Whirlwind line combiner for pro sound.
  • Achieve superior audio clarity; THD+N is less than 0.025% at 1kHz for pristine sound.
  • Enjoy wide frequency response (+/- .3 dBm 20-20 kHz) for balanced audio output.
  • Ensure signal isolation; >42dBm between inputs minimizes crosstalk in your audio.
  • Compact size (4.25 x 4.87 x 1.37") integrates easily into any audio setup.
  • Durable build quality ensures reliable performance for all your audio needs.

What's in the box:

  • Whirlwind IMP Line Combiner
  • Whirlwind 3 Year Limited Warranty
