Whirlwind IMP JT Passive Direct Box with Jensen Transformer
See all Whirlwind items

Whirlwind IMP JT Passive Direct Box with Jensen Transformer, 150Ohms Output Impedance, 1/4" TS Phone Input, XLR/1/4" TS Phone Thru Output

SKU: WWIMPJT

This item is no longer available.

Recommended Alternatives

Whirlwind : Picture 1 regular
Whirlwind 15' 2-Ch Di2 Dual Direct Box with Snakeskin XLR Fanout Cable, Black
$264.00
Whirlwind : Picture 1 regular
Whirlwind 50' 2-Ch Di2 Dual Direct Box with Snakeskin XLR Fanout Cable, Black
$324.00
Whirlwind Director: Picture 1 regular
Whirlwind Director PA Direct Box with 30dB Pad & High Cut Filter Switches
$114.00
Whirlwind DIRECT2: Picture 1 regular
Whirlwind DIRECT2 Passive 2-Channel Direct Box
$196.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Whirlwind IMP JT Specifications

  • Input Connections

    1/4" TS phone

  • Output Connectors

    XLR
    1/4" TS phone Thru

  • Output Impedance

    150Ohms

  • Power

    Passive

  • UPC Code

    692465019590

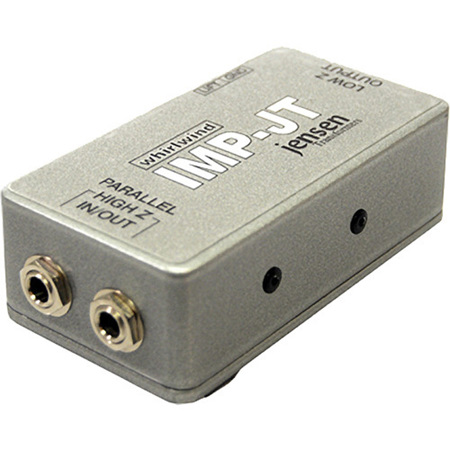

About Whirlwind IMP JT

The Whirlwind IMP JT Passive Direct Box features a Jensen transformer renowned for wide frequency response and superior noise reduction. It eliminates hum and buzz with a ground lift switch. Depend on the rugged metal box to provide extra shielding and to extend the life of this direct box.

Parallel High Z In/Out (1/4" JACKS)
Two 1/4" jacks which provide the means to input and loop through" the signal source. These jacks are wired in parallel, it makes no difference which one is used for input or output.

Low Z Output (XLR Jack)
A male XLR that provides a low-impedance balanced output suitable for connection to a mixing console or work station.

Ground Lift Switch
This switch disconnects the ground between the input connectors and the output connectors when set to the LFT position. The ground is connected through when the switch is in the GND position.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Whirlwind IMP JT Passive Direct Box with Jensen Transformer
  • Whirlwind 3 Year Warranty
