Whirlwind MD-1 Mic to Line Driver with Headphone Monitor
Whirlwind MD-1: Picture 1 thumbnail
Whirlwind MD-1: Picture 2 thumbnail
See all Whirlwind items

Whirlwind MD-1 Mic to Line Driver with Headphone Monitor, 600Ohms Output Impedance, 6Hz-25kHz Frequency Response, 3-Pin XLR Male Input, 3-Pin XLR Female Output

SKU: WWMD1 MFR: MD-1
Be the first to review this itemAsk a Question
$529.00
OR
$89/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Get pristine audio with this low noise Whirlwind MD-1 mic to line driver.
  • Achieve balanced signals from unbalanced sources using this active direct box.
  • Enjoy versatile connectivity with XLR inputs/outputs on this channel strip.
  • Monitor your sound directly with the built-in headphone output feature.
  • Experience high-quality sound; frequency response from 6Hz to 25kHz.
  • Depend on rugged build quality for reliable performance in any recording setting.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Whirlwind MD-1 Specifications

  • Connections

    Input: 3-pin XLR male
    Output: 3-pin XLR female

  • Input Impedance

    Mic mode: 1.5kOhms
    Line mode: 10kOhms

  • Output Impedance

    600 ohms

  • Audio Input Signal

    Line mode: +18dBm balanced
    Mic mode: -4dBm unbalanced

  • Frequency Response

    +/- 3dBm 6Hz to 25kHz
    +/- 1dBm 50Hz to 10kHz
    -2.0 dBm at 20kHz

  • Maximum Output Level

    +12 dBm into a 2kOhms load
    +24 dBm into a 10kOhms load
    +36 dBm into a 100kOhms load

  • THD + Noise

    < 1 % 100Hz to 20kHz

  • Phantom Power

    +18 VDC

  • Power Requirements

    9-Volt batteries x2

  • Dimensions (H x W x D)

    3.88 x 6.25 x 2.25" / 98.55 x 158.75 x 57.15mm

  • Weight

    2lbs / 0.91kg

  • UPC Code

    692465001724

29 Accessories for Whirlwind MD-1 Mic to Line Driver with Headphone Monitor, 600Ohms Output Impedance, 6Hz-25kHz Frequency Response, 3-Pin XLR Male Input, 3-Pin XLR Female Output

  • All Accessories (29)
  • Batteries & Power Supply (6)
  • Cables & Adapters (18)
  • Headphones (5)
H&A Value Series XLR M to F Professional Microphone Cable - 6'
H&A Value Series XLR M to F Professional Microphone Cable - 6'
$6.49
Recommended
H&A Value Series XLR M to F Professional Microphone Cable - 25' RA
H&A Value Series XLR M to F Professional Microphone Cable - 25' RA
$12.95
Recommended
H&A Value Series XLR M to F Professional Microphone Cable - 25'
H&A Value Series XLR M to F Professional Microphone Cable - 25'
$14.95
Recommended
H&A Value Series XLR M to F Professional Microphone Cable - 15'
H&A Value Series XLR M to F Professional Microphone Cable - 15'
$8.95
Recommended
H&A Value Series XLR M to F Professional Microphone Cable - 10'
H&A Value Series XLR M to F Professional Microphone Cable - 10'
$6.94
Recommended
H&A Platinum Pro Quad 25' XLR M to XLR F Microphone Cable with Rean Connectors
H&A Platinum Pro Quad 25' XLR M to XLR F Microphone Cable with Rean Connectors
$28.95
Recommended
H&A Platinum Pro Quad 15' XLR M to XLR F Microphone Cable with Rean Connectors
H&A Platinum Pro Quad 15' XLR M to XLR F Microphone Cable with Rean Connectors
$24.95
Recommended
H&A Elite Pro 3' XLR M to XLR F Microphone Cable with Rean Connectors
H&A Elite Pro 3' XLR M to XLR F Microphone Cable with Rean Connectors
$3.99
Recommended
Energizer MAX 9V Alkaline Battery, 2-Pack
Energizer MAX 9V Alkaline Battery, 2-Pack
$9.95
Energizer MAX 9V Alkaline Battery, 4-Pack
Energizer MAX 9V Alkaline Battery, 4-Pack
$14.95
Maha PowerEx MH-C490F Stealth Two Hour Compact 4 Bank 9-Volt Charger
Maha PowerEx MH-C490F Stealth Two Hour Compact 4 Bank 9-Volt Charger
$28.95
Maha Powerex Precharged 9.6V 230mAh Low Self-Discharge Rechargeable NiMH Battery
Maha Powerex Precharged 9.6V 230mAh Low Self-Discharge Rechargeable NiMH Battery
$11.95

About Whirlwind MD-1

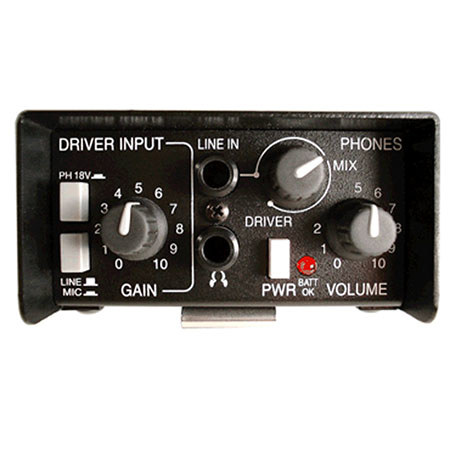

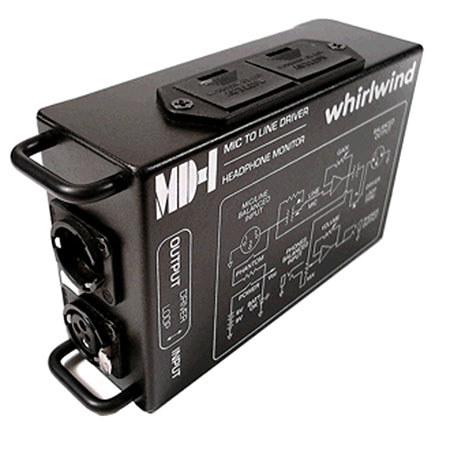

The Whirlwind MD-1 is a compact portable unit that combines a high quality microphone preamp-line driver with a headphone amplifier designed to monitor the mic preamp or be used independently. The MD-1 employs two 9-Volt batteries and provides enough gain to drive both headphones and long signal lines and allow for maximum headroom in the mic preamp.

Whirlwind MD-1 Features

  • Up to 66 dBm of gain adjustable with analog style potentiometer
  • Finest quality mu metal shielded input transformer
  • Wide range frequency response
  • Low input noise and harmonic distortion
  • Low susceptibility to radio frequency interference
  • Balanced, transformer isolated input and output connections
  • Headphone section monitors main input, separate balanced headphone line input or mix of both
  • Rugged construction
  • 9 Volt battery power with reasonable battery life

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Get pristine audio with this low noise Whirlwind MD-1 mic to line driver.
  • Achieve balanced signals from unbalanced sources using this active direct box.
  • Enjoy versatile connectivity with XLR inputs/outputs on this channel strip.
  • Monitor your sound directly with the built-in headphone output feature.
  • Experience high-quality sound; frequency response from 6Hz to 25kHz.
  • Depend on rugged build quality for reliable performance in any recording setting.

What's in the box:

  • Whirlwind MD-1 Mic to Line Driver with Headphone Monitor
  • Whirlwind 1 Year Limited Warranty
