Whirlwind Micpower Portable 4-Channel 48V Phantom Power Supply with AC Adapter, 20-20kHz Frequency Response

SKU: WWMICP4 MFR: MICP4
Earn VIP Reward Points

Key Features

  • Ensure clean power for your mics with this 4-channel phantom power supply unit.
  • Experience low noise performance, ideal for studio & live microphone applications.
  • Provides stable 48V phantom power, essential for condenser microphones to operate.
  • Compact size makes this microphone power supply perfect for portable recording setups.
  • Durable build quality ensures long-lasting reliability for all your audio needs.
  • Enjoy easy setup; just plug in and play, making your workflow more efficient today.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Whirlwind Micpower 4-Channel 48V Phantom Power Supply with AC Adapter Specifications

  • Frequency Response

    20-20 kHz +/-0.01 dB

  • Total Harmonic Distortion +noise

    < 0.0008% 20-20 kHz

  • Phase Shift

    < 1 deg. 20-20 kHz
    < 0.1 at 1 kHz

  • Common Mode Rejection

    > 106 dBV 20-20 kHz

  • Maximum Input Level

    +20 dBV

  • Maximum Output Level

    +20 dBV

  • Noise

    < -118 dBV

  • Isolation between channels

    > 110 dBV 20-20 kHz; 126 dBV at 1 kHz

  • Phantom Power

    48 V DC +/-1V

  • Power consumption

    < 5 W all channels loaded
    < 1 W no load

  • Power requirements

    24 V AC, 50/60 Hz; 200 mA

  • AC dropout voltage

    95V AC, 50/60Hz

  • Turn On Impulse Noise

    < -60 dBV

  • Turn Off Impulse Noise

    < -80 dBV

  • Operating temperature range

    0½ C to 70½ C

  • Dimensions (W x D x H)

    6.4 x 7.2 x 1.8" / 162.56 x 182.88 x 45.72mm

  • Weight

    1.5lbs / 0.68kg

  • UPC Code

    692465021791

About Whirlwind Micpower 4-Channel 48V Phantom Power Supply with AC Adapter

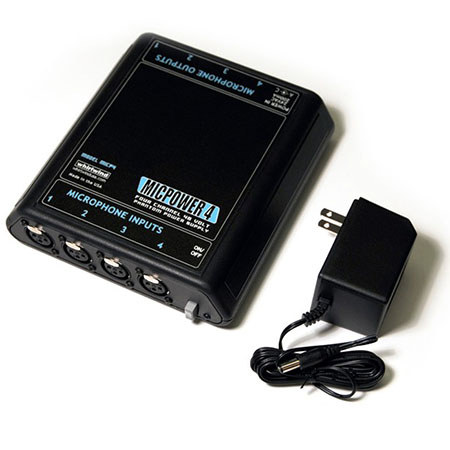

The Whirlwind Micpower Portable 4-Channel 48V Phantom Power Supply is a premium four channel phantom power supply. The regulated 48 Volt DC output is ultra quiet, introducing no noise into the microphones' signal path. The Micpower 4 uses an external AC adapter (PS24AC) to eliminate magnetic fields generated when using an internal transformer type supply. The sleek, rugged design is perfect for any application when the use of high quality microphones require the use of external phantom power.

Whirlwind Micpower 4-Channel 48V Phantom Power Supply with AC Adapter Features

  • Ultra quiet, regulated, filtered 48 VDC power
  • Operate 4 microphones with superior channel isolation
  • AC coupled outputs (no phantom power down the line)

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Ensure clean power for your mics with this 4-channel phantom power supply unit.
  • Experience low noise performance, ideal for studio & live microphone applications.
  • Provides stable 48V phantom power, essential for condenser microphones to operate.
  • Compact size makes this microphone power supply perfect for portable recording setups.
  • Durable build quality ensures long-lasting reliability for all your audio needs.
  • Enjoy easy setup; just plug in and play, making your workflow more efficient today.

What's in the box:

  • Whirlwind Micpower 4-Channel 48V Phantom Power Supply with AC Adapter
  • Whirlwind 2 Year Limited Warranty
