Whirlwind MIP5 Media Input Plate, Black
See all Whirlwind items

Whirlwind MIP5 Media Input Plate, 3.5mm TRS and Dual RCA Inputs, Black

SKU: WWMIP5B
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Whirlwind MIP1 2-Gang Media Input Plate, Black
$376.00
$238.00
undefined undefined: Picture 1 regular
Whirlwind MIP1 2-Gang Media Input Plate, Brushed Stainless Steel
$364.00
$231.00
undefined undefined: Picture 1 regular
Whirlwind MIP2 1-Gang Media Input Plate, Black
$300.00
$210.00
undefined undefined: Picture 1 regular
Whirlwind MIP2 1-Gang Media Input Plate, Brushed Stainless Steel
$300.00
$210.00
undefined undefined: Picture 1 regular
Whirlwind MIP3 1-Gang Media Input Plate, Black
$305.00
$213.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Whirlwind MIP5 Specifications

  • Inputs

    3.5mm TRS jack and RCA jacks

  • Insertion loss

    1.2dB for stereo inputs
    1.7dB for summed inputs
    7.7dB for a single mono source

  • Load

    2kOhm

  • UPC Code

    692465024297

About Whirlwind MIP5

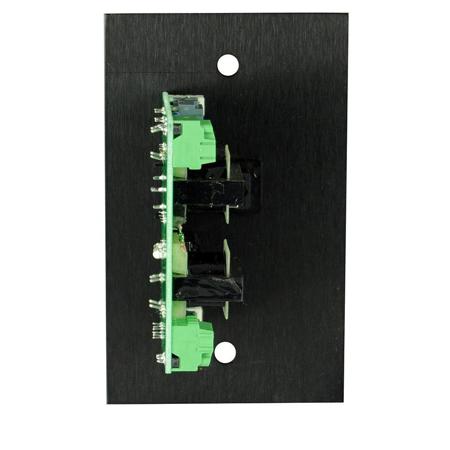

The MIP5 is a stereo line balancing plate. Stereo inputs can be connected to the 3.5mm TRS jack (tip is left, ring is right) or the RCA jacks. Two balancing transformers are provided, one for each channel. Output connections are made via individual 3 pin pluggable screw terminals. A Stereo/Mono switch is provided which combines left and right together and feeds the summed mono signal to both outputs. A Ground Lift switch breaks the ground connection between the inputs and the output screw terminals. Insertion loss is approximately 1.2 dB for stereo inputs, 1.7 dB for summed inputs and 7.7 dB for a single mono source, measured into a 2 kOhm load.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Whirlwind MIP5 Media Input Plate
  • Whirlwind 3 Year Warranty
